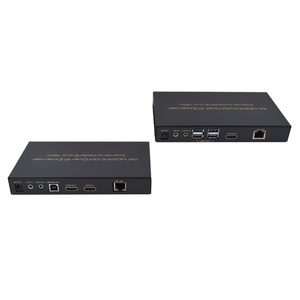

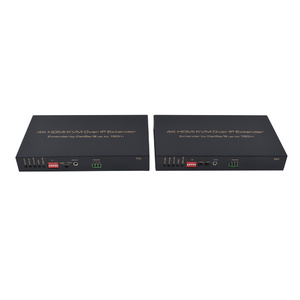

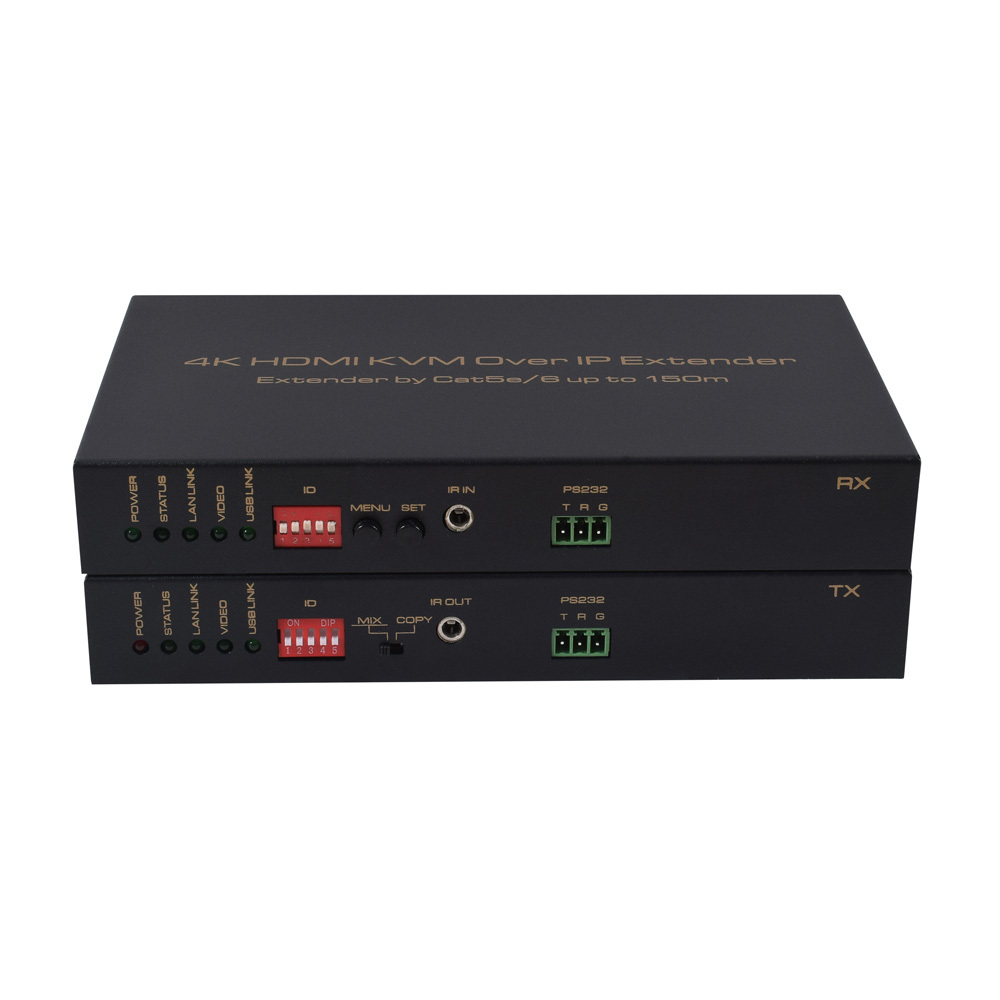

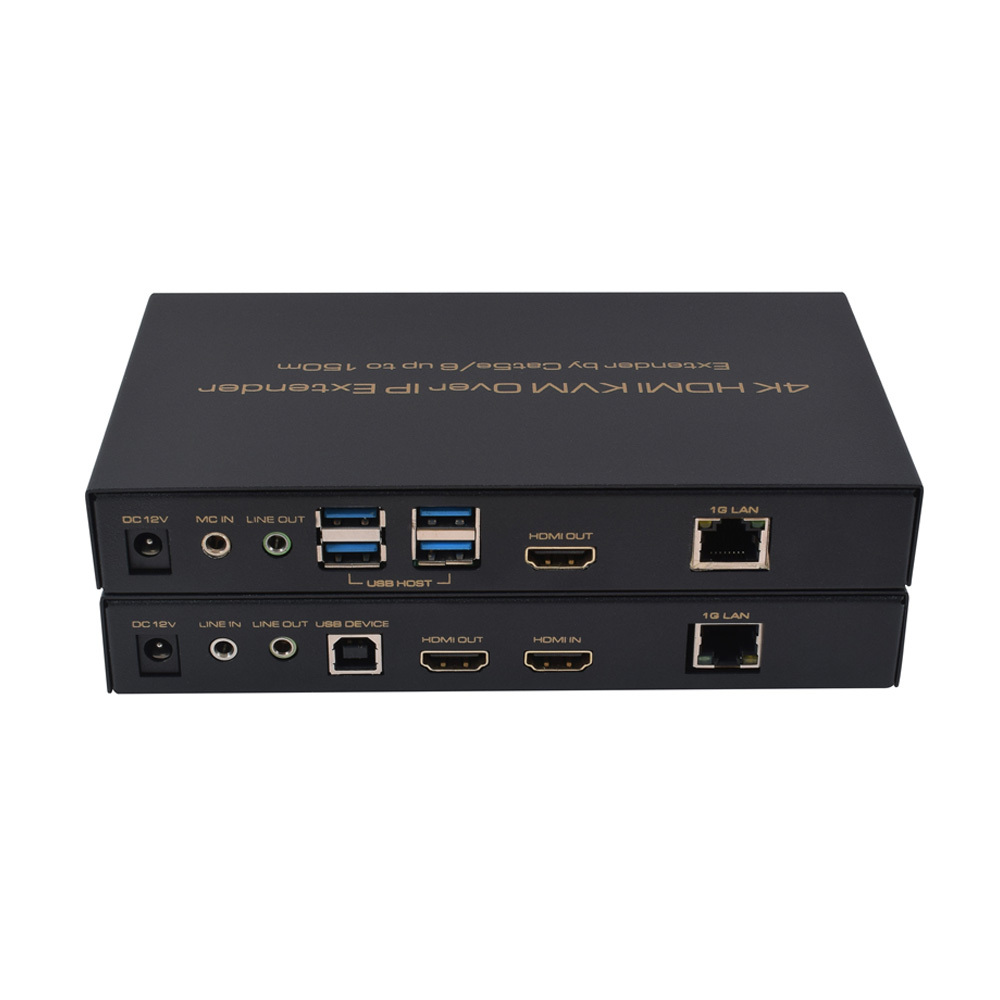

HDMI and USB KVM OVER IP Extender

Multiple HDMI Receiver Over IP function

This HDMI and USB KVM Over IP Extender provides a convenient solution for remotely controlling a PC or laptop via CAT 5 or CAT 6 cables or IP via a 1G Local Area Network switch. Supports multiple receivers connected to 1G Local Area Network for multiple display applications.

HDMI 4K HDMI video signals and has IR extender functionality. Has 4 USB ports for keyboard, mouse, flash drive and usb peripherals connectivity.

The Receiver has a HDMI loop through for connecting a display on the HDMI Source end.

Specifications:
HDMI resolution: 480P / 720P / 1080P @ 24Hz / 30Hz / 50Hz / 60Hz, up to4K @ 30Hz, Supports1080P @ 120Hz,/3D etc.
HDMI Audio format: Dolby True HD / DTS HD / Dolby Atmos / Dolby Digital 5.1 / Dolby Digital Plus / DTS 5.1 / LPCM
HDMI Max bandwidth: 297MHz
HDMI Max baud rate: 8.91Gbps
LAN transmission rate: 850 Mbps Max
Transmission delay: <80us
Output cable length: 1080P/AWG 26 ≤12m
Transmission distance: ≤100m (Cat 5e)/≤150m (Cat6) Use network switch extensions to recover further transmission distances
Serial port baud rate: Supports 115200 / 57600 / 38400 / 19200 / 9600 / 4800 /  2400 / 1200bps
IR Carrier frequency: 20-60KHz
Power adapter input: AC 100~240V / DC12V/1.5A
Max working current: TX≤300mA / RX≤200mA
Accessories: Manual x1, Power Adaptor x2, IR Transmitter cable x1, IR Receiver cable x1
