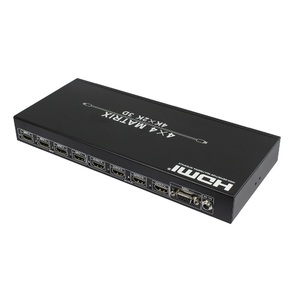

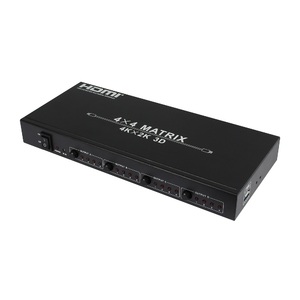

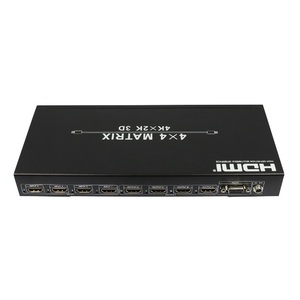

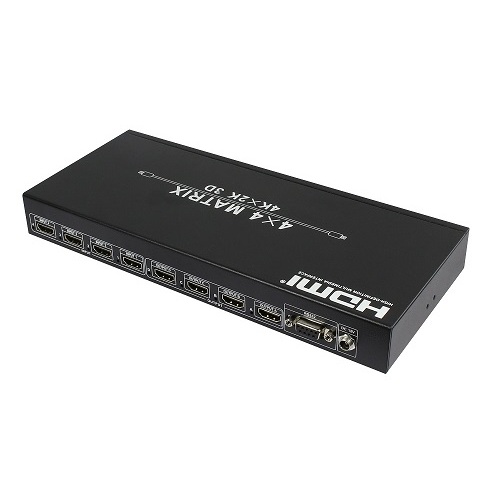

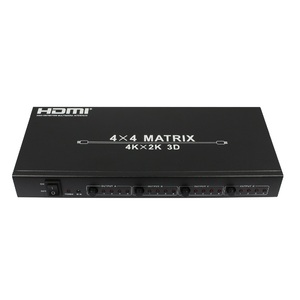

HDMI 4 Input 4 Output Matrix Switcher Splitter with Infra-red Extender

4 x 4 HDMI True Matrix with IR Extender function

This true HDMI Matrix Switcher is capable of switching between 4 HDMI inputs and displaying or splitting the signal to 4 LCD Displays or TV. It has a built-in infra-red extender for ease of control and use with all your input and output HDMI devices.

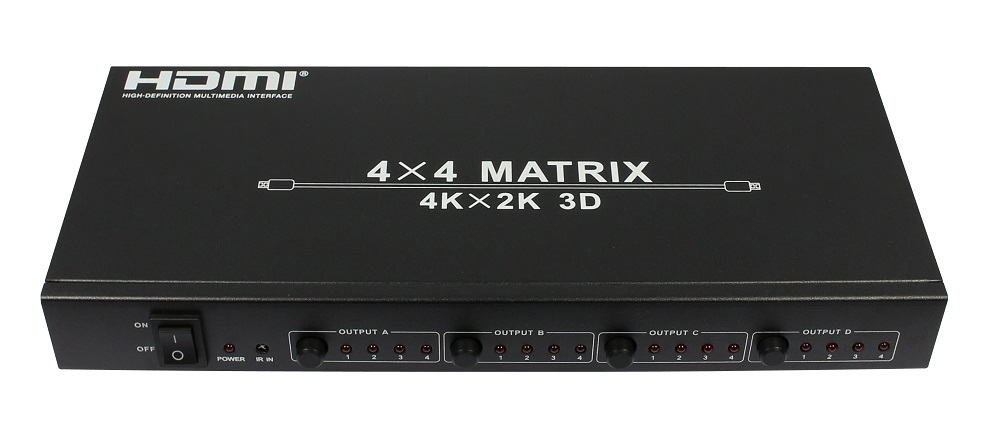

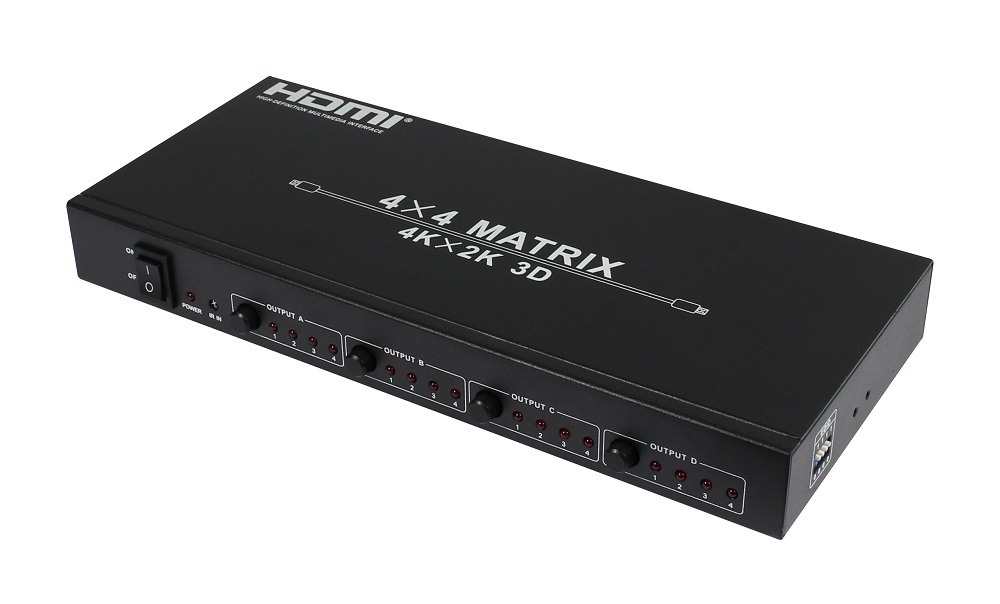

HDMI Switch supports the transmission of video resolution up to 4K×2K @ 30Hz and supports high resolution digital audio formats such as LPCM 7.1CH,Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio. HDMI sources are accessible at all times by selection via the supplied IR Remote Control, RS-232 or select buttons on the front panel or Ethernet protocol.

Features
1. Supports display resolutions up to 4K x 2K@30Hz,1080P@120Hz,and 1080P 3D@60Hz
2. 3D HDMI 1.4a video format support.
3. 3D video support including Frame Packing for all 3D formats up to a 297MHz TMDS clock.
4. Supports deep color up to 48-bit per pixel.
5. HDCP 1.4 support (INPUT), HDCP v1.4a protocol compliant (OUTPUT).
6. Supports reception of any audio data conforming to the HDMI specification 1.4 such ad L-PCM at up to 192kHz,compressed audio(IEC 61937),DSD,DST,DTS and HBR.
7. Full colorimetry including sYCC601, Adobe RGB, Adobe YCC601, xvYCC extended gamut color.
8. Operates for TMDS clock frequencies up to 300MHz.
9. Supports IR Matrix, all IR Receiver (IR/IR EXT pigtail /IR Matrix Rx pigtail) can control the matrix by using matrix remote, and IR Matrix Rx pigtail also can control the source by using source’s remote.

Conttents:
HDMI Matrix --------------------------------------------------------- 1PCS
Adaptor ---------------------------------------------------------------- 1PCS
Operation Manual ---------------------------------------------------- 1PCS
Remote Controller------------------------------------------------------1PCS
RS232 Serial Cable----------------------------------------------------1PCS
Wideband IR Tx (optional) ------------------------------------------4PCS
Wideband IR Rx(optional) -------------------------------------------5PCS

Specifications
1. Frequency Bandwidth              2.97Gbps

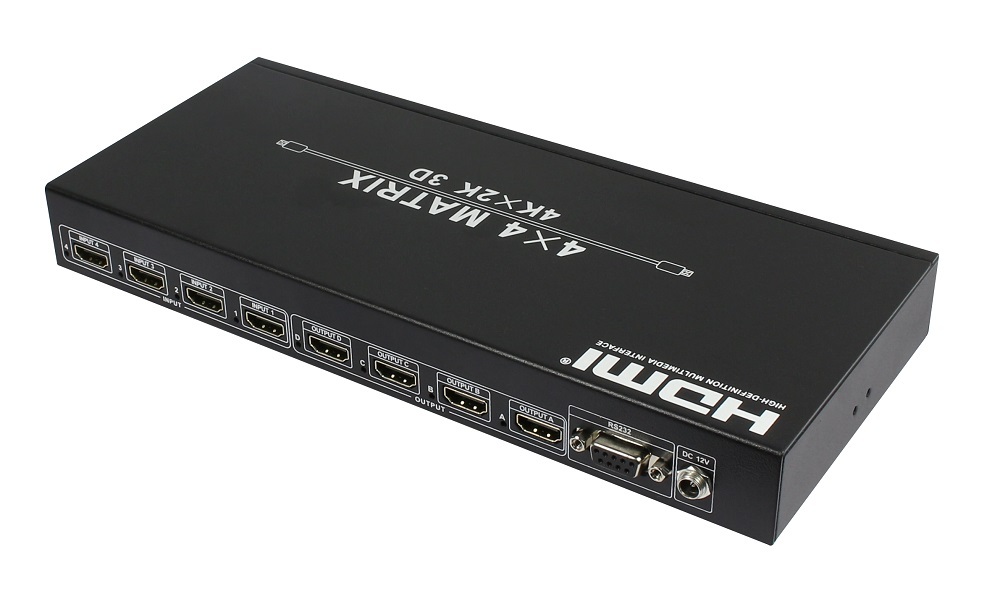

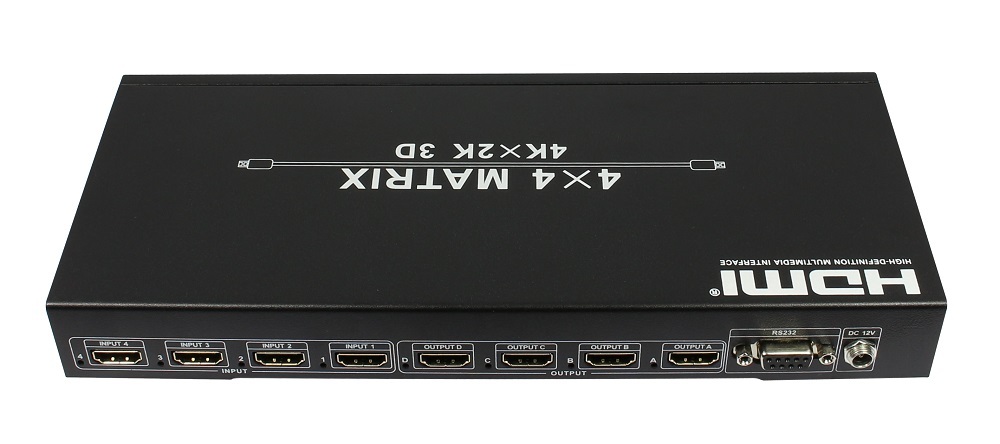

2. Input Ports                         4 x HDMI Female input ports
3. Output Ports                        4 x HDMI Female output ports
4. Power Supply                       DC 12V, 2.5A
5. ESD Protection Human Body Model:    ± 8kV (air-gap discharge)
± 4kV (contact discharge)
6. Dimensions (mm)                   115(W) X 270 (D) X 45 (H)
7. Weight (g)                          900
8. Operating Temperature             0°C ~ 40°C / 32°F ~ 104°F
9. Storage Temperature                 -20°C ~ 60°C / -4°F ~ 140°F
10. Relative Humidity                  20 ~ 90% RH (Non-condensing)
11. Power Consumption (Max)                   20W
