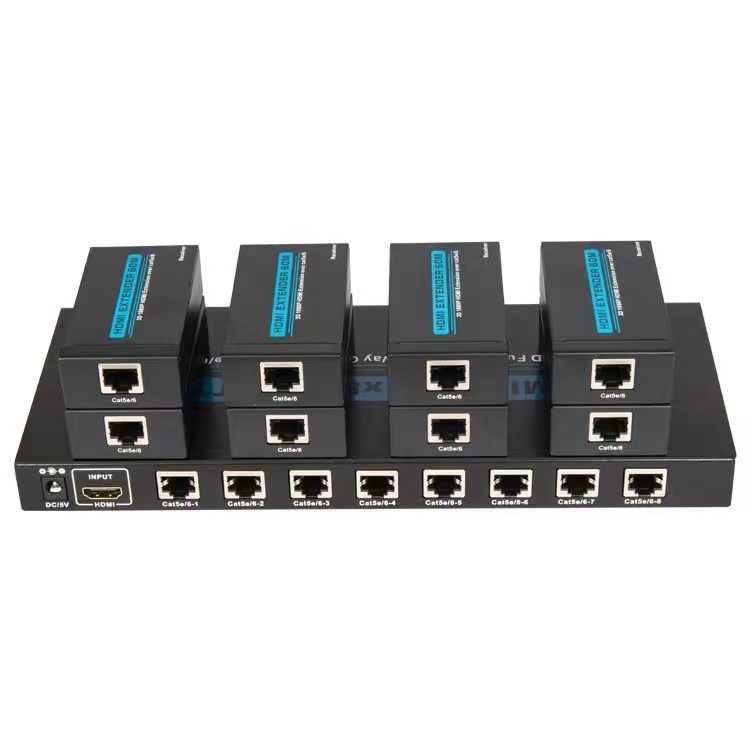

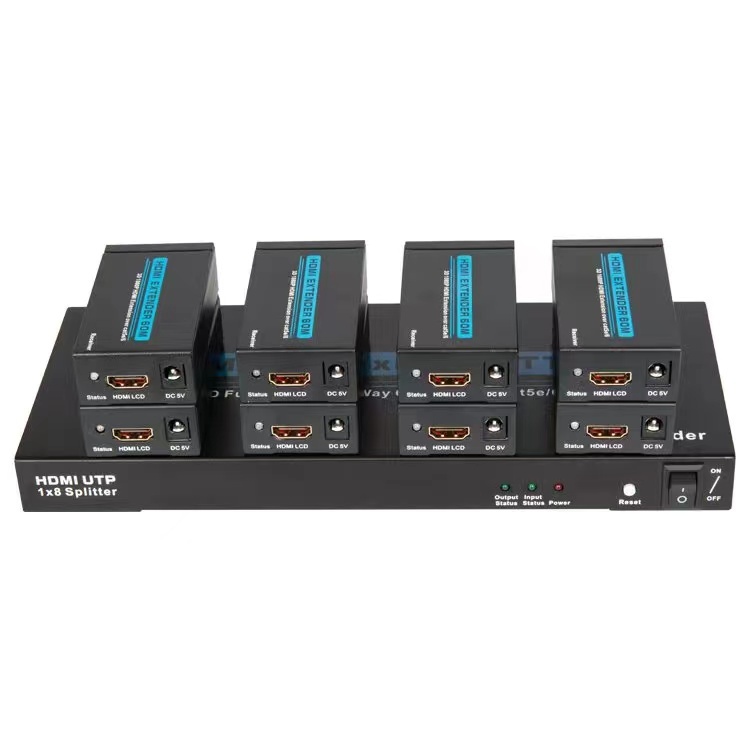

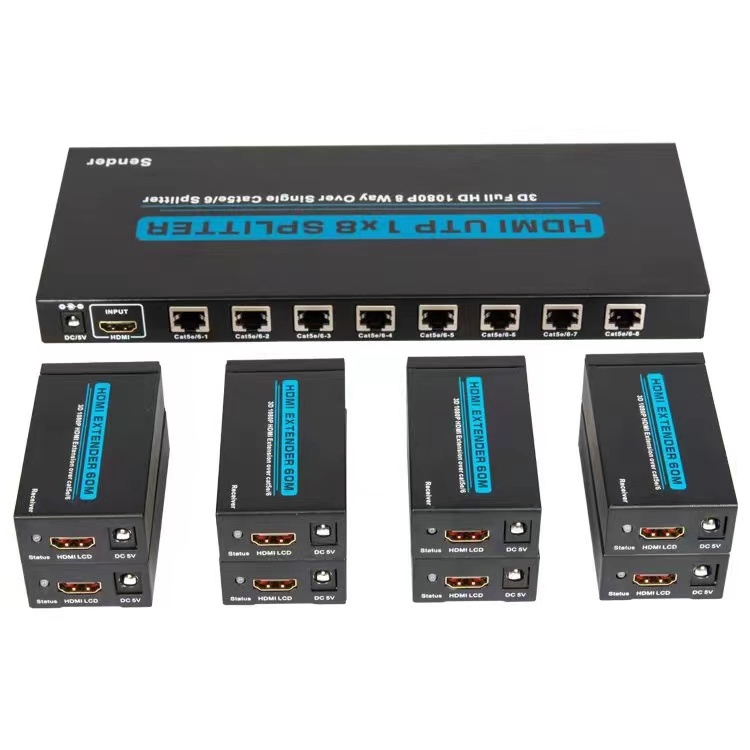

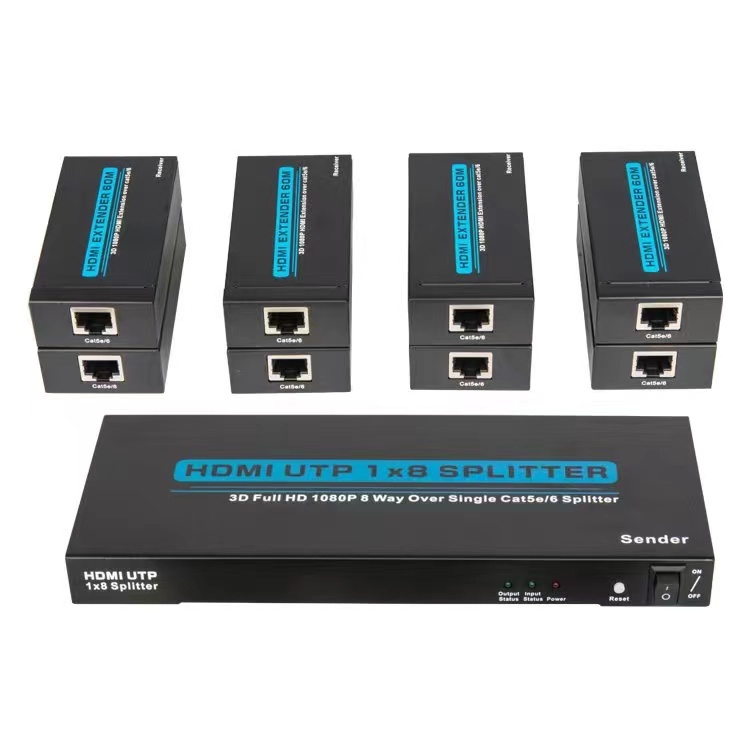

HDMI 8 Port Extender Over Cat 5E/6  with 8 Receivers

Extends a HDMI Signal to 8 Displays up to 60m in range

Extends a 1080p High Definition HDMI signal over Cat 6 to 8 HDMI receivers up to 60m in distance without signal loss. A cost effective solution for multi-display applications for your home, office, pubs and hotels.

Great solution for sending a set top box HDMI signal such as a Foxtel iQ2 or iQ3 to other TV's in the house or man cave.

Features:

• One HDMI input signal split to eight HDMI sink devices(eight outputs is the RJ45 output).
• Fully HDMI 1.3 specification compliant. It is applicable to source device and high definition display device ,such as DVD and  HDTV which have HDMI Ports or digital ports and are compliant with HDCP protocol.
• Support high resolutions up to 1920*1200,including 480i/p,576i/p,720i/p,1080i/p.
• Support 30/36 dark, extended color space support, including:SYCC601、Adobe RGB、AdobeYCC601.
• Blu-ray DVD 24/50/60fs/HD-DVD/xvYCC.
• Audio formats DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3 and DSD.
• Extend the transmission distance and improve transmission signal.
• Compatible with DVI by using HDMI to DVI adapter.
• Plug- and -play.
• Support output up to 60metres CAT6 cable.
• Metal casing design and overall shielding without signal interference.
• Led indicates signal and power mode.
• Power supply (please refer to technical parameter).
• Support 3D





3.0 Packaging accessories:

HDMI 1×8 Splitter------------------------------------------------1 Pcs

HDMI Receiver---------------------------------------------------8 Pcs

5V DC Power Adaptor-------------------------------------------9 Pcs

User Manual-------------------------------------------------------1 Pcs

Specifications:

HDMI resolution-----------------------------------------3D /1080p/1080i/720p/576p/576i/480p/480i

Support video color format-------------------------------------------------24bit/deep color 30bit,36bit

Support audio format -------------------DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth-----------------------------------------------------------------------------------------250MHz

Max baud rate----------------------------------------------------------------------------------------6.25Gbps

Input/Output TMDS signal--------------------------------------------------------0.5~1.5Volts p-p(TTL)

Input/Output DDC signal------------------------------------------------------------------5Volts p-p (TTL)

Input cable distance----------------------------------------------≤10m AWG26 HDMI standard cable



Output cable distance--------------------------------------------------------------- ≤60m Cat5e/6 cable

Max working current---------------------------------------------------------------------------------1800mA

Power adapter format Input ------------------AC (50HZ, 60HZ) :100V-240V; Output: DC5V/2A

Operating Temperature range--------------------------------------------------------------(-15 to +55℃)

Operating Humidity range-------------------------------------------5 to 90%RH (No Condensation)

Dimension (L x W x H)-------------------------------------------------------Splitter:276x110x25 (mm)

                                                        Receiver:82x43.5x25(mm)

Weight-----------------------------------------------------------------------------1550g(spilitter+Receiver)
