HDMI Extender over Cat 6

Extends HDMI and IR Signal up to 50m

The HDMI Extender over Single Cat6/6e with IR extends high definition video and audio signals and IR, at a distance of up to 164ft/50m over a single Cat5e/6 cable. Features EDID management, which allows and encourages source and display “handshake” for seamless integration. With only one cost effective Cat6/6e cable, high definition sources with HDMI outputs can be connected to high definition displays with HDMI inputs over long distances. Deep color video, DTS-HD or Dolby True HD audio is supported and compatible with the extender.

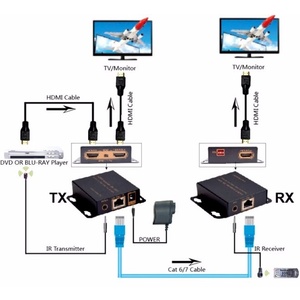

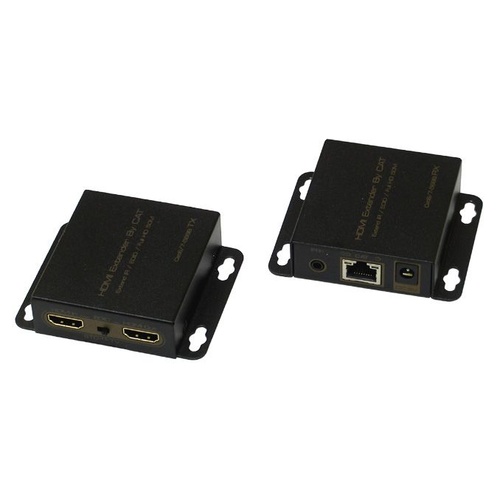

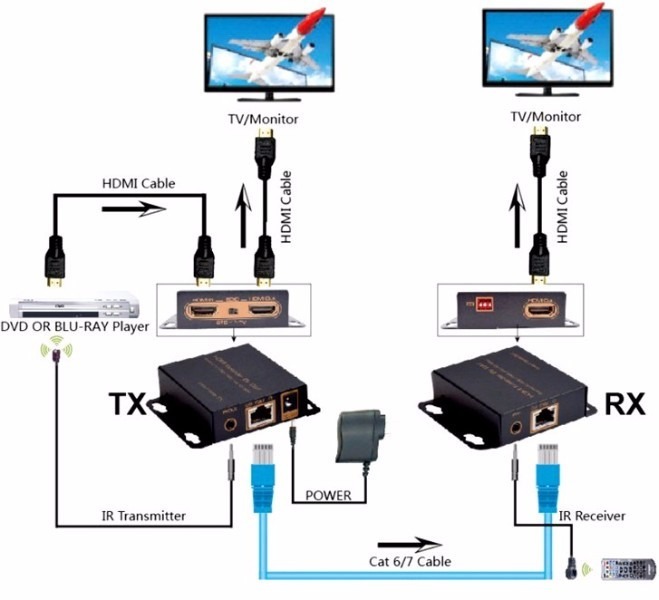

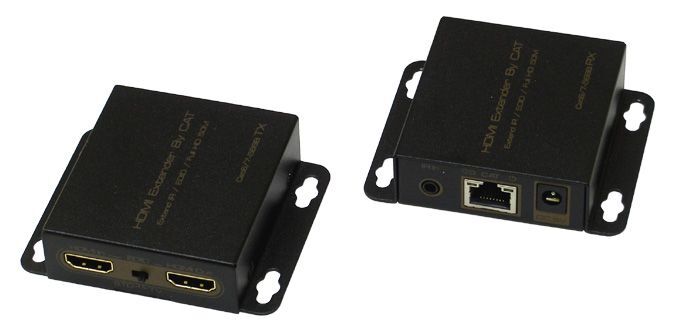

The extender includes two units: transmitting unit and receiving unit. The transmitting unit is used to capture the HDMI input with IR signals and carries the signals via one cost effective Cat6/6e cable. The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR and serial control signals. The extender offers the most convenient solution for HDMI extension over a single Cat6/6e with long distance capability, and is the perfect solution for any application.

Features:

• Allows HDMI Audio/Video and IR signals to be transmitted over a single Cat6/6e cable

• IR system allowing for control of source (IR accessories included)

• Smart EDID management

• Transmission Range: Extends 1080p resolution up to 164ft/50m over a single Cat6 cable

• Works with HDMI and HDCP compliant devices

• Supports up to 1080p High Definition resolution

• Compact design for an easy and flexible installation

Specifications:

• Video Bandwidth: Single-link 165Mhz [ 4.95Gbps]

• Video Support: 480i/480p/720p/1080i/1080p @60Hz

• Audio Support: Surround Sound (up to 7.1 ch) or stereo digital audio

• Transmission Range: HD [1080p 24-bit color] – up to 50m [164ft]

• Input TMDS Signal: 3.3 volts

• Input DDC Signal: 5.0 volts/P-P

• ESD Protection: Human Body model: +/- 8 kV (air-gap discharge)

• +/- 4 kV (contact discharge)

• PCB stack-up: 4 layouts

• HDMI connector: Type A 19 pin female

• RJ-45 connector: WE/SS 8P8C

• 3.5mm connector: (TX and RX) IR Receiver/IR Blaster

Mechanical Specs:

• Housing: Metal enclosure

• Power Supply: 5V1A DC

• Power consumption: 2.5 watts (TX); 1.2 watts (RX)

• Operation temperature: 32~104 °F

• Storage temperature: -4 ~140 °F

• Relative humidity: 20~90 % RH (no condensation)

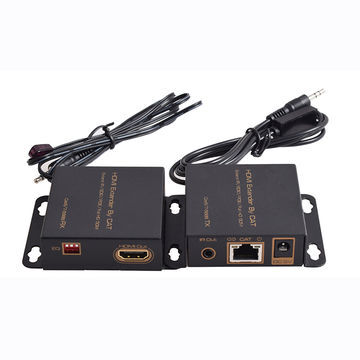

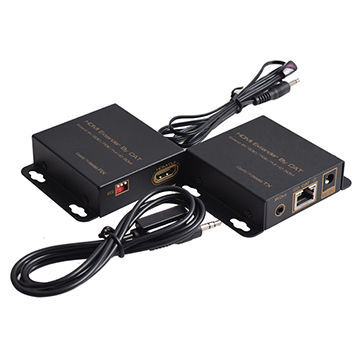

Package Contents:

• HDMI Transmitter (1PCS)

• HDMI Receiver (1PCS)

• Wind-band IR Tx cable (1PCS)

• Wind-band IR Rx cable (1PCS)

• 5V1A DC Power Supply Adaptor (1PCS)
