HDMI Over Cat 5E/6 50m Extender Wall Plate Kit

Extends a HDMI Signal to a Displays up to 60m in range

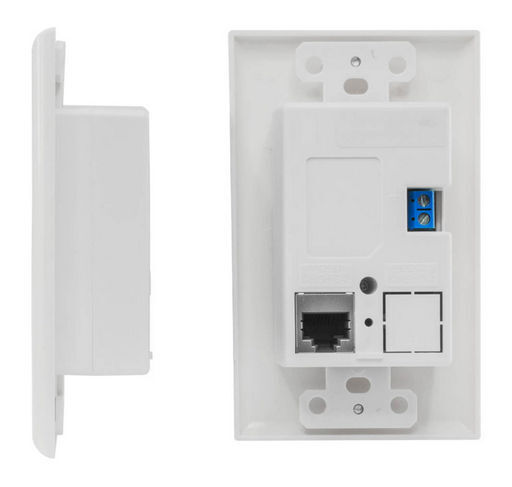

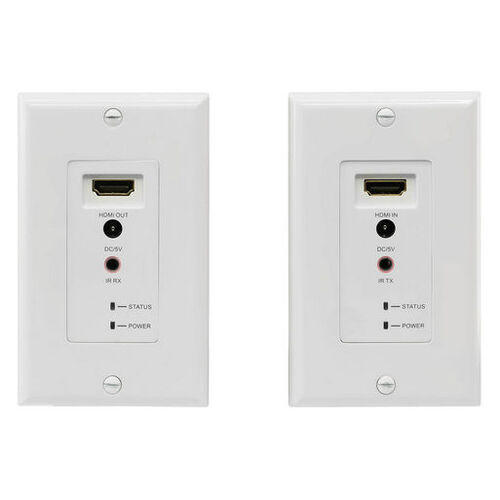

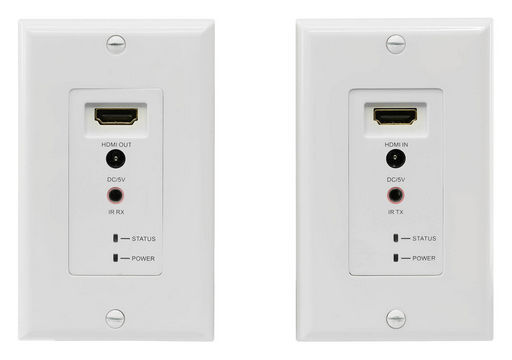

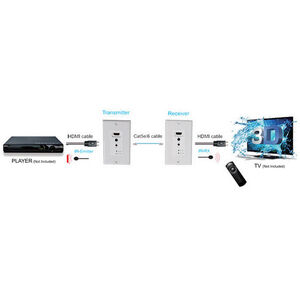

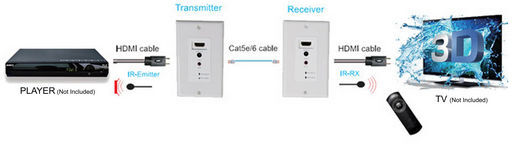

A neat and simple wall plate high definition HDMI extender kit. This kit extends your high definition AV source from your media player. Transfer up to a maximum 60 metres via CAT5E/6 cable through the wall cavities. Supports full 1080P high definition, 3D, DTS-HD, Dolby-True-HD, etc. Integrates an infra-red return for full control from the receiving end back to the transmitter. Includes IR sender and receivers on 1.8M leads. Power packs included, connected to the front or rear of the wall-plate. RJ45 sockets on the rear of both units makes for easy connection. Cable sold separately.


• Each set includes one transmitter and one receiver
• IR sender and IR receiver included. 1.8M cable each.
• Discrete and compact Decora-style wall-plate design
• Connect with single CAT5e or CAT6 cable (Sold separate)
• Transmission distance up to 60 metres with 1080P resolution (3D)
• Auto adjustment of feedback, equalization and signal boost
• Up to 2.25Gbits signal rates in support of 1080P & HD audio





•
• Operating Temperature Range: −5 to +35°C
  Operating Humidity Range: 5 to 90% RH (No Condensation)
  Input Video Signal: 0.5-1.0 Volts P-P
  Input DDC Signal: 5 Volts p-p(TTL)
  Support Video Format: DTV/HDTV: 480i/576i/480P/576P/720P/1080i/1080p/3D video format
  Video Output: HDMI
  Support Audio Format: DTS-HD Master Audio, Dolby true-HD etc.
  Transmission Distance: 1080P 8-bit 60m (Maximum) over CAT5E/CAT6/24AWG/Solid (23AWG CAT6 cable recommended)
  Power consumption: 3W (Maximum)
  Dimension (LxWxH): 115x70x35mm
  IR wavelength & Frequency: Wavelength: 940nm, frequency 38kHz
  Net Weight: 260g (Pair)
  Power supply: 2 x DC/5V 1A (included)




  IR Sender is NOT Foxtel compatible.
