HDMI RF Digital DVB-T Modulator

Convert HDMI AV Signal to Terrestrial DVB-T Signal

A high performance HD modulator for HDMI sources with IR return path and HDMI loop through. This modulator allows you to distribute any HD device signals (Foxtel, DVD etc) in HD around the home or business with ease. Combined with infra-red targets and emitters full remote control of AV devices at the location of each television is available. Ideal for retro-fitting/upgrading older analogue modulator installations.

Package Contents
1 x HDMI DVB-T Modulator
1 x IR Emitter
1 x IR Receiving Eye
1 x 12V Power adapter
1 x User Manual


Features

• 1080p modulated resolution
• HDMI loop through
• 1080 HDMI input
• H.264 video compression
• 30dB MER (typical)
• 100BuV ±5 output level
• RF TV antenna input
• 38-56kHz IR frequency
• 9V IR pass over RF
• Includes power supply

• Source Input
• Input Channel: 1
• Video: HDMI
• Video System: 480i/p, 576i/p, 720p, 1080i/p
• Audio System: HDMI
•
• Compression
• Video: H.264 Baseline Profile Level4.0
• Video Resolution: 1080p 25 / 30 Max
• Video Bit Rate: 12Mbps MAX
• Audio: MPEG-2 / AAC
• Audio Bit Rate: 192 Kbit/S
• DVB insertion tables: SDT, NIT
• Editable Field: Service Name , Network Name , Provider Name , TS ID , Network ID , Original NET ID, LCN , NIT Version , Private Data ,Country
•
• RF Output
• Type: 1 Multiplex DVBT with a digital TV service
• Frequency: 177 – 858 MHz
• MER: 30dB Typically
• Output Level: 100dBuV ±5
• RF Level Adj: 0dB~20dB
• Attenuation Step: 1dB per step
•

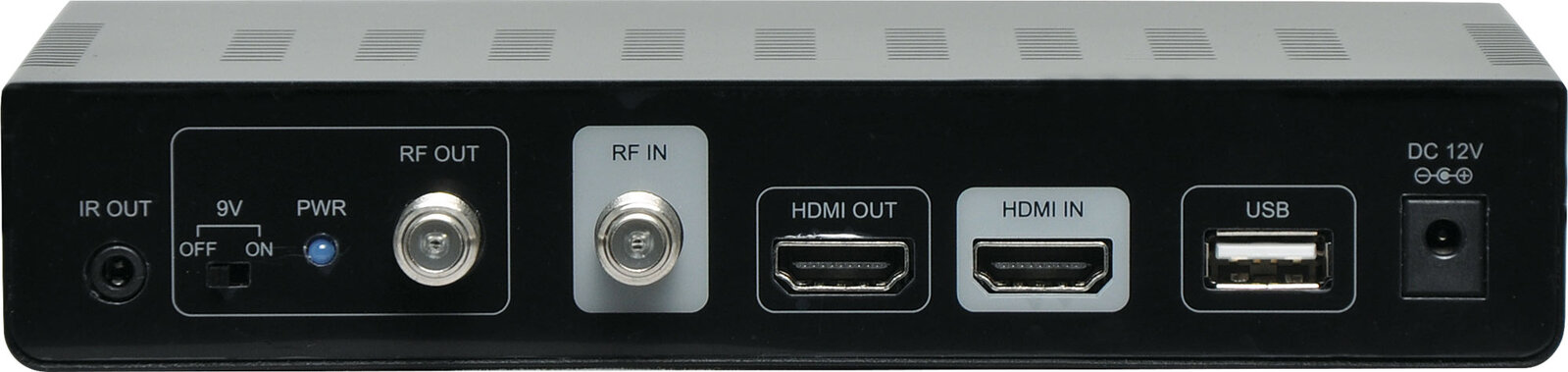

• Connections
• HDMI IN: HDMI IN
• HDMI OUT: HDMI Pass Through

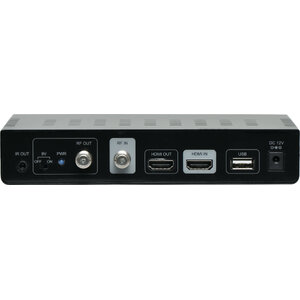

• RF Output: RF output (providing accessory power supply 9 volts DC for IR pass)
• DC Switch: Power supply 9 volts DC for IR Pass
• RF Input: RF Combiner
• USB: Firmware Upgrade
• IR Out: IR Emitter Output
• Modulation: Standard: DVBT (ETSI EN 300 744)
• Constellation: QPSK, 16QAM, 64QAM
• Guard Interval: 1/4, 1/8, 1/16, 1/32
• Code Rate: 1/2, 2/3, 3/4, 5/6, 7/8
• FFT Carriers Mode: 2K, 8K
• Bandwidth: 6MHz, 7MHz, 8MHz, 7-8MHz
• Power Supply: 12V Adapter

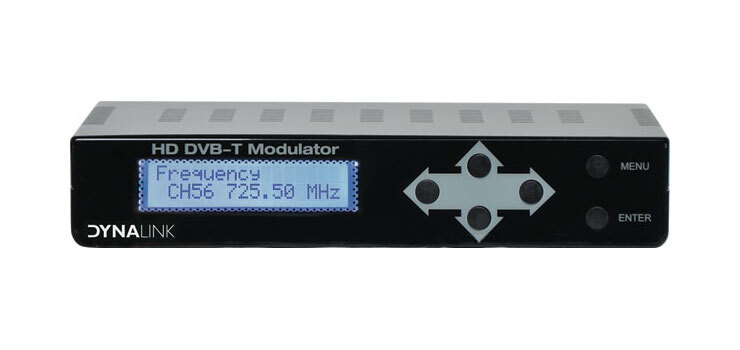

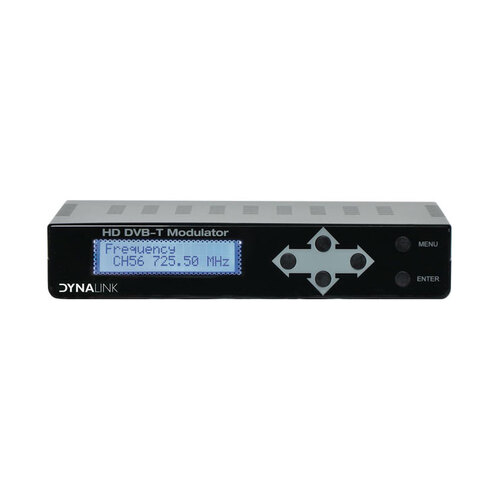

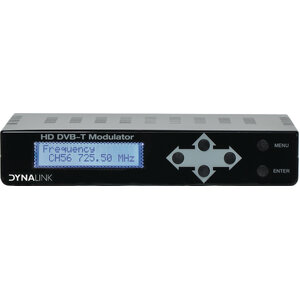

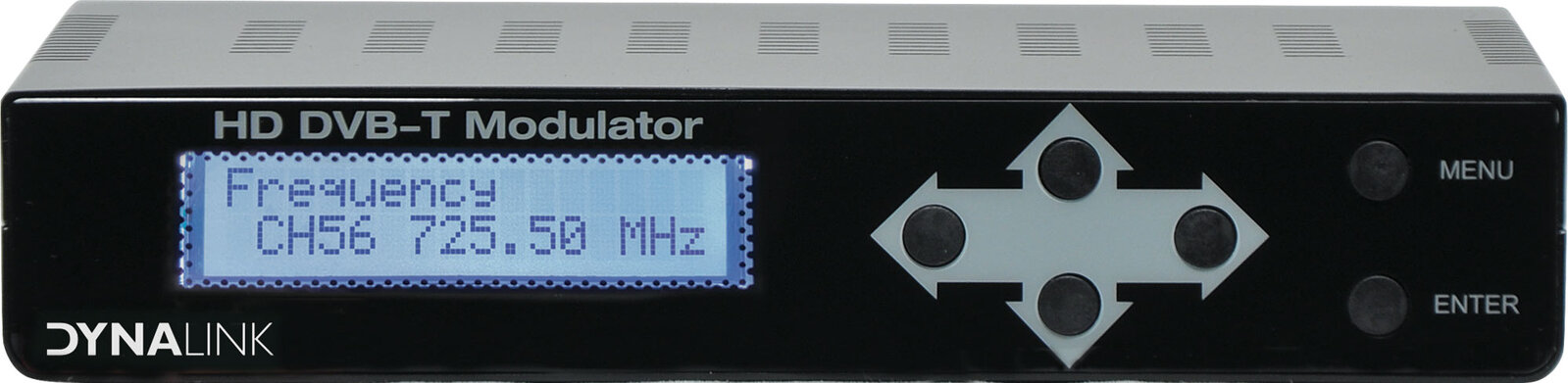

• Display: LCD panel @ 2 x 16 characters (on front panel).
• Environmental for operating: Temperature range: 5°C - 40°C, Relative Humidity: 80% @ 30°C

IR Receiving Eye

• Freq. range: 100 -900 MHz
• Insertion loss: 3.0dB Typical
• Return path signal freq: 7.0MHz
• IR freq.: 20-60KHz
• Impedance: 75ohm
• Power Consumption: 9mA

  *Specifications are subject to change without notice.
