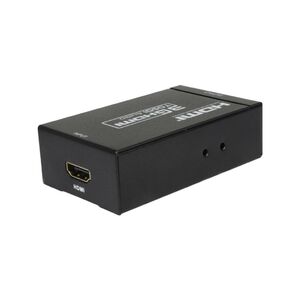

HDMI to 3G SDI Converter Transmitter and Receiver Kit

HDMI to 3G SDI Converter Sender Kit

SKU: AA6075


$149.00
RRP $299.00
Sold Out

Buy In Bulk & Save!
Buy 4 to 10: Pay $141.55 ea
Buy 11 to 20: Pay $134.47 ea
Buy 21 to 100: Pay $127.75 ea




Calculate Shipping

HDMI to 3G SDI Converter Sender Kit

Convert HDMI Signals and Transmit via SDI through Coax Cable

Transmitter and Receiver Kit.

Transmitting HDMI signals via HDMI cables can be a very costly exercise. This HDMI to 3G SDI converter and extender kit enables you to transmit HDMI AV Signals via SDI platform up to 300m. Utilise your existing coaxial cabling in your office or home and save  yourselves thousands of dollars in cabling and installation costs. Kit comprises of a HDMI to SDI converter that connects to the HDMI source and a SDI to HDMI converter which plugs into the HDMI LCD or display.

Features

  • Shows HDMI source on SDI display.

  • SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s.

  • Supports HDMI input timings: 480i@59.94, 576i, 720p@50/59.94/60, 1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60.

  • Converts HDMI signal to SDI:

  • 480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)

  • 720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s)

  • 1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)

  • Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)

Package Contains

  • 3G HDMI to SDI Converter

  • SDI to 3G SDI COnverter

  • 2 x 5V1A DC Power Supply Adaptor

  • Operation Manual

Specifications

  • Input Port     1 x HDMI

  • Output Port    1 x BNC (SDI / HD - SDI / 3G-SDI)

  • SDI Transmission Rates  2.970 Gbit/s and 2.970/1.001 Gbit/s

  • In/Output Resolution    480i, 576i, 720p @ 50 / 59. 94, 60,1080i @ 50 / 59.94 / 60, 1080p @ 23.97 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60

  • Power Supply    DC 5V -12V

  • ESD Protection Human body model       ±8kV (air-gap discharge) , Â±4kV (contact discharge)

  • Dimension                 80mm x 41mm x 25 mm

  • Weight      150g

  • Operating Temperature      0°C ~ 40°C / 32°F ~ 104°F

  • Storage Temperature      -20°C ~ 60°C / -4°F ~ 140°F

  • Relative Humidity              20 ~ 90% RH (Non-condensing)

  • Power Consumption (Max)       5W

CLICK HERE TO SEE OTHER HDMI CONVERTERS IN OUR RANGE

12 Month Warranty

SKU AA6075
Barcode # 9351634000494
Brand Aus Electronics Direct
Shipping Weight 1.0000kg
Shipping Width 0.300m
Shipping Height 0.150m
Shipping Length 0.400m
Shipping Cubic 0.018000000m3
Unit Of Measure ea
