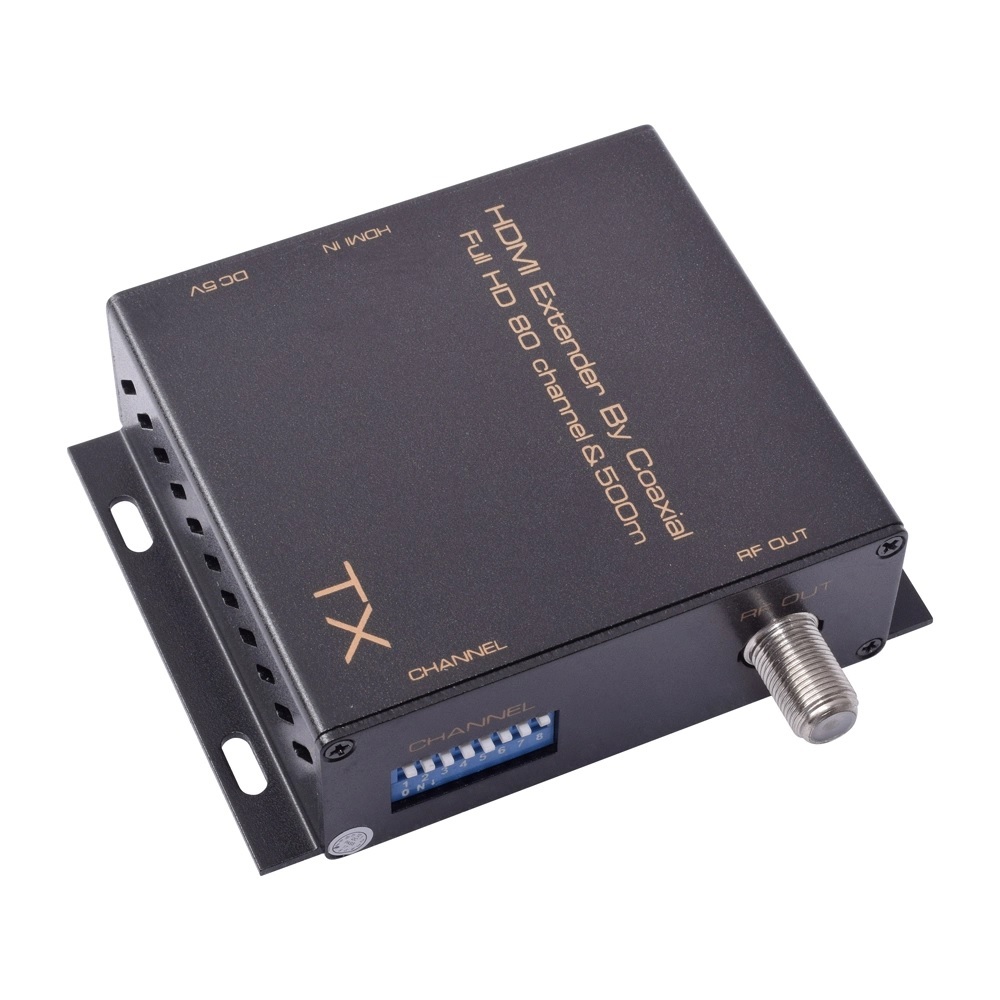

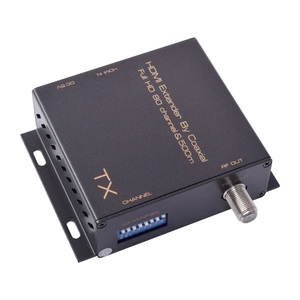

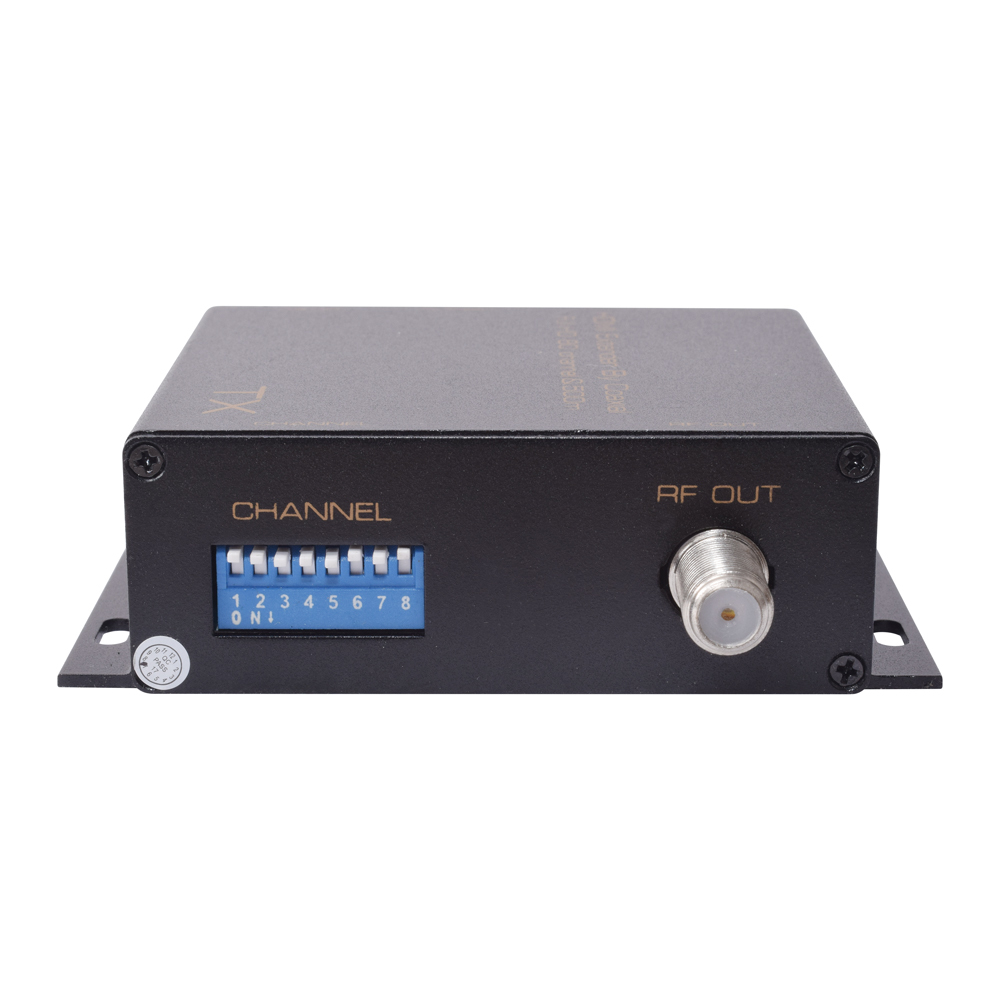

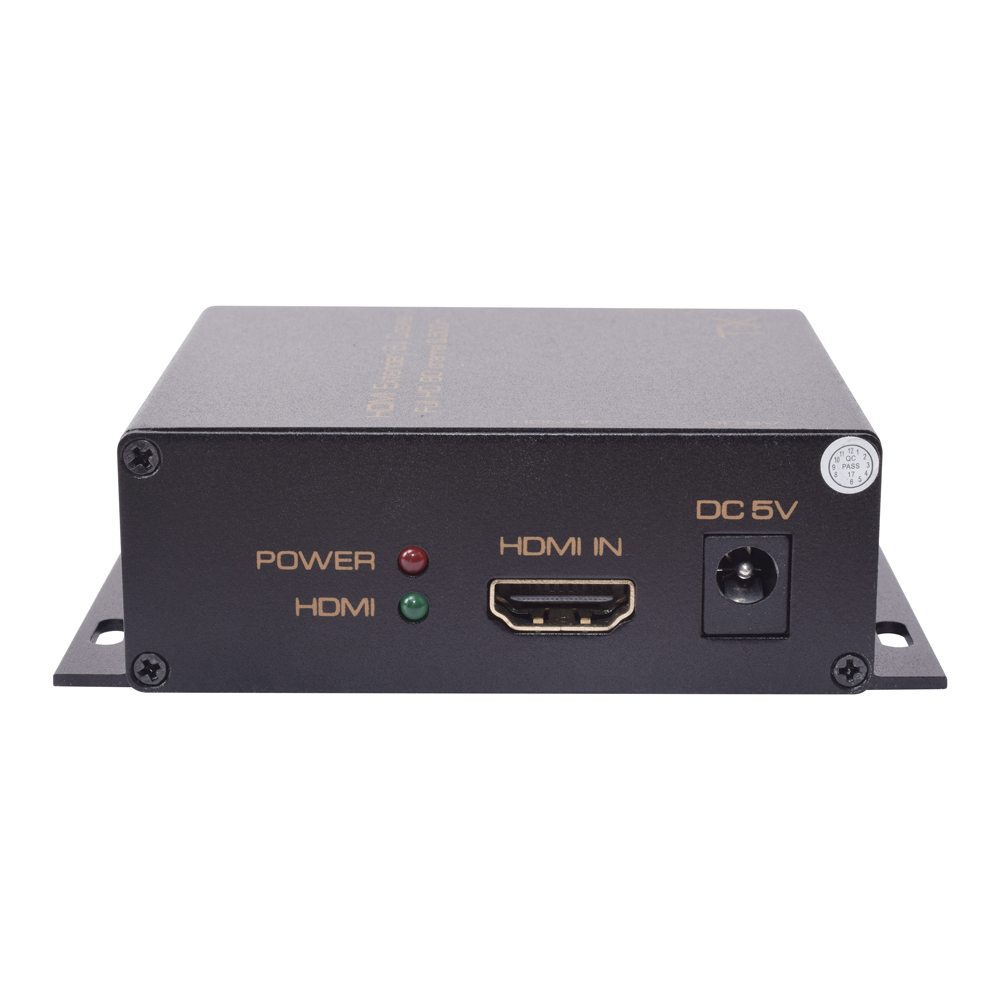

HDMI to DVB-T Modulator Converter

Convert HDMI AV Signal to Terrestrial DVB-T Signal

This HDMI to DVB-T Modulator converts full 1080p High Definition signal from a HDMI cable to a DVB-T Terrestrial Signal via Coaxial cable. This modulator converter allows for you to take a HDMI source such as Bluray Player or Set Top Box and convert it to a high definition DVB-T Terrestrial signal over a coaxial antenna system or insstallation. A very cost effective way of distibuting digital HDMI Signal over an existing analogue antenna installation. Able to transmit up to 500m range without amplification, this modulator installs in minutes. Ideal for pubs, clubs, offices, auditoriums and even hotels.

Note: This HDMI to DVB-T Modulator Converts into MPEG2 Video Format. Please ensure your Television supports MPEG2 Video format.

Specifications

HDMI resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

HDMI Audio Format: LPCM

RF frequency range: 139～950 MHz

RF Channel B/W: 7/8 MHz

Number of Channel: 80

RF Output power: 6dBm

RF Connector type: Imperial F type/BNC

Coaxial cable Characteristic impedance: 75Ω

Coaxial cable types: SYV-75/RG59 etc.

RF transmission distance: ≤500m SYV-75-5 coaxial standard cable

TX Max working current:  650mA

Power adapter format Input:  AC 100V～240V 50HZ/60Hz, DC5V/2A

Operating Temperature range:  -10 to +45℃

Storage Temperature range:  -20 to +60℃

Operating Humidity range: 10 to 90%RH (No Condensation)

Storage Humidity range: 5 to 95%RH (No Condensation)

Case Dimension (L x W x H): 94x74x28 (mm)

Weight: 120g
