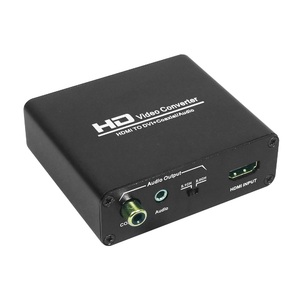

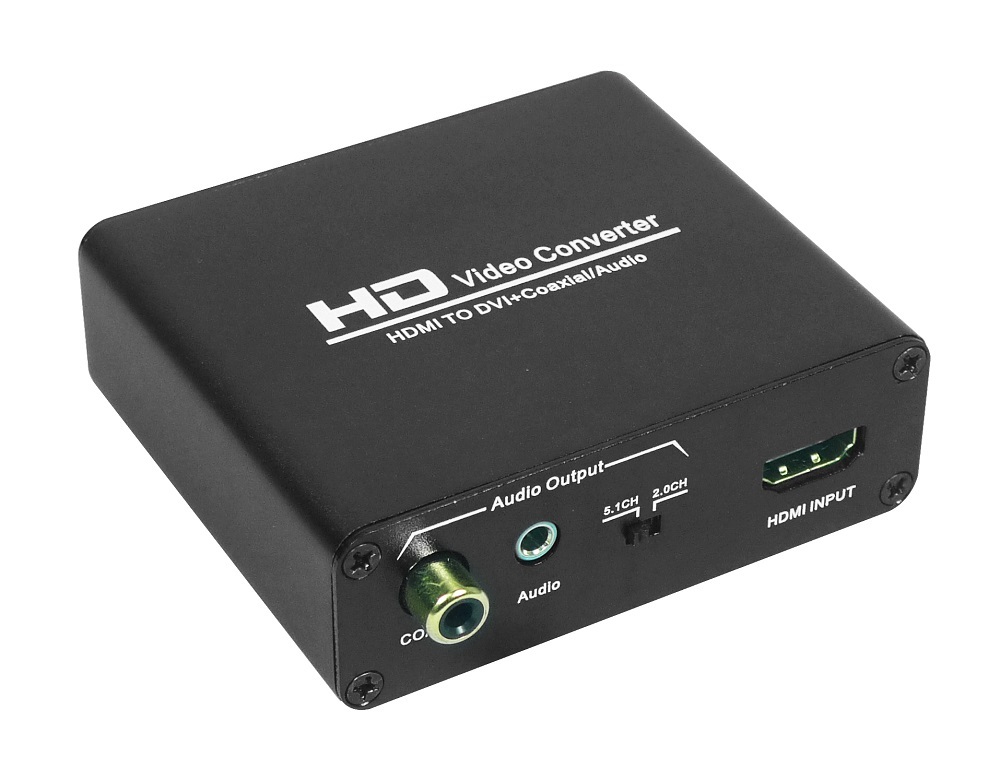

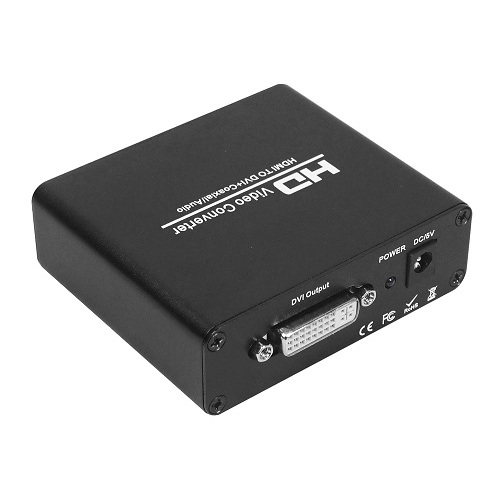

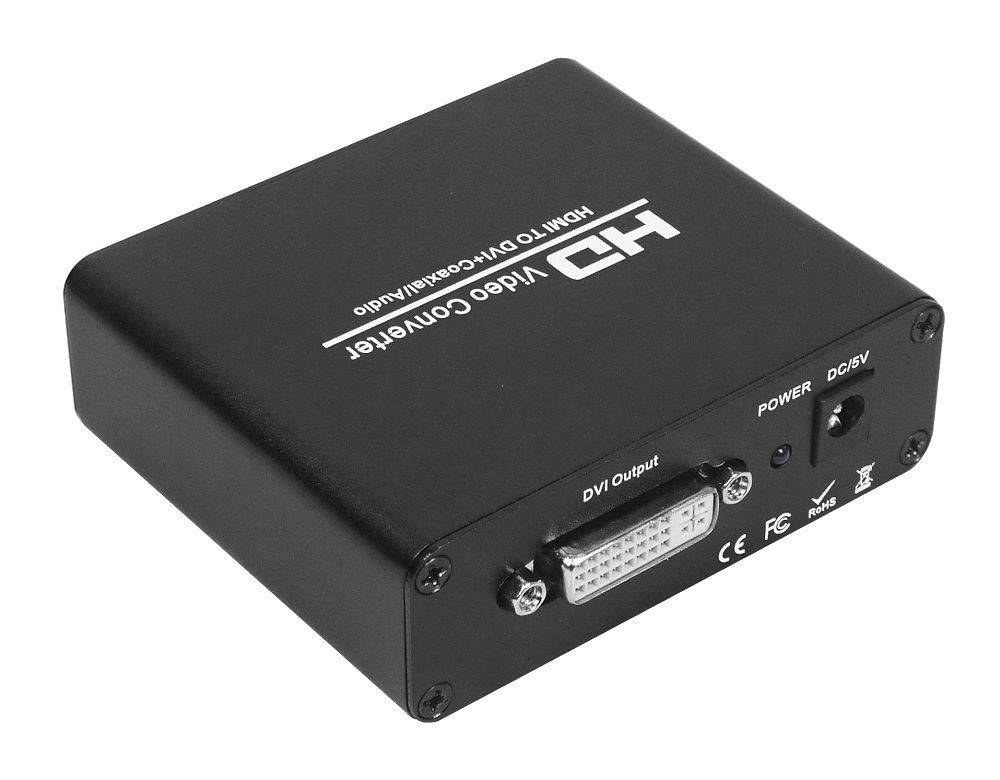

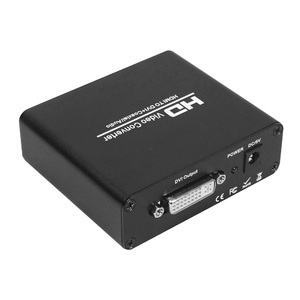

HDMI to DVI-D Video and Audio Converter

HDMI to DVI-D Video and Audio Converter

Convert a HDMI Digital AV signal to a DVI-D digital video signal and analogue line level audio or digital coaxial audio. Perfect for interfacing HDMI inputs such as Set Top Boxes, Multi-media player, PS3, XBOX to older displays with DVI inputs as well as interface the audio to an amplifier via the line level or digital coaxial audio output.

Features

1. No need to install drivers, portable, flexible, plug and play.

2. HDMI compliant with HDMI1.3.

3. High bandwidth capability support 1920x1080 @ 60Hz.



2.0 SPECIFICATIONS

1. Input ports: 1 x HDMI.

2. Output ports: 1 x DVI-D, 1 x Coaxial, 1x3.5mm Jack.

3. Dimensions(mm):   80(D)x84(W)x28(H)

4.Wight (g):          200

5. Input/Output Resolution:

640x480@60/72/75/85Hz,

800x600@60/72/75/85Hz,1024x768@60/70/75/85Hz,

1152x864@75Hz,1280x720@60Hz, 1280x768@60Hz,1280x800@60Hz,

1280x960@60Hz,1280x1024@60Hz,

1360x768@60Hz,1440x1050@60Hz,

1440x900@60Hz,1680x1050@60Hz,

1600x1200@60Hz,1920x1080@60Hz,



PACKAGE CONTENTS

1) Main unit (HDMI to DVI Converter) ------------1PCS

2) 5V/1APower Adapter ------------------------------1PCS

3) User Manual. ----------------------------------------1PCS
