HDMI to USB 2.0 Recorder Video Capture

Record, edit and save HDMI video on your PC or laptop

SKU: AA6232


$49.95
RRP $149.00
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $44.95 ea
Buy 11 to 20: Pay $40.45 ea
Buy 21 to 100: Pay $36.41 ea




Calculate Shipping

HDMI to USB 2.0 Recorder Video Capture

Record, edit and save HDMI video on your PC or laptop

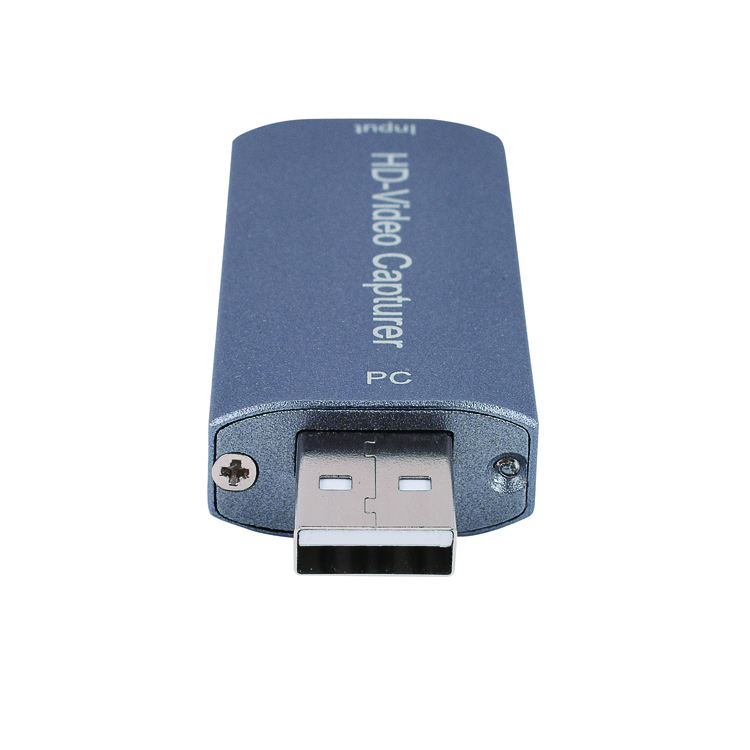

The HDMI to USB 2.0 Recorder Video Capture Box is a small compact device that connects to USB 2.0 port to deliver unparalleled video quality at an astonishing 1080p! This portable capture card (dongle) is small enough that it can be carried in your pocket.

Record or stream a HDMI AV signal via USB 3.0 with resolutions of up to 1920 x 1200 at 60fps and still connect to an LCD or TV. View and edit the HDMI AV signals at the same time.

If you need to stream or record at a certain resolution, the device is able to up-scale or downscale the input signal. The HDMI Capture card uses the existing drivers on your computer, the capture device will work with any software that supports those drivers (even possible to use with Skype, Google Hangouts, WebEx and more).

Features
One HDMI input for Watching and Recording
Adopting USB 2.0 channel Recording of high-speed Full HD Screen
Plug and play, no setup required
Compatible with a variety of third-party acquisition software
Supports recording MJPEG, YUY2 video formats
Supporting 1080p @ 30hz resolution input

Specifications:

Input ports HDMI1.4 x1

Output ports USB2.0 x1

HDMI input resolution 3840x2160@30Hz or 4096x2160@24Hz Max

Support 3840x2160@60Hz YUV420

Input color space RGB、YUV444、YUV422、YUV420

Video output resolution 1920x1080@30Hz Max

Video output format YUV or JPEG

Audio format LPCM2.0/32~192KHz/16~24Bit

Input cable length AWG 26 HDMI standard cable ≤10m

Power supply mode USB power supply

Max working current 280mA

Working temperature range -5 ~ +40℃

Working humidity range 5 to 85%RH(No Condensation)

Storage temperature -15 to 55℃

Storage humidity 5 ~95%RH(No Condensation)

Size 67*26*13 (mm)

Weight 22g

Accessories Manual x1

CLICK HERE TO SEE OTHER HDMI TO USB CAPTURE DEVICES IN OUR RANGE

12 Month Warranty

SKU AA6232
Barcode # 9351634016204
Brand Aus Electronics Direct
Shipping Weight 0.2400kg
Shipping Width 0.160m
Shipping Height 0.050m
Shipping Length 0.160m
Shipping Cubic 0.001280000m3
Unit Of Measure ea
