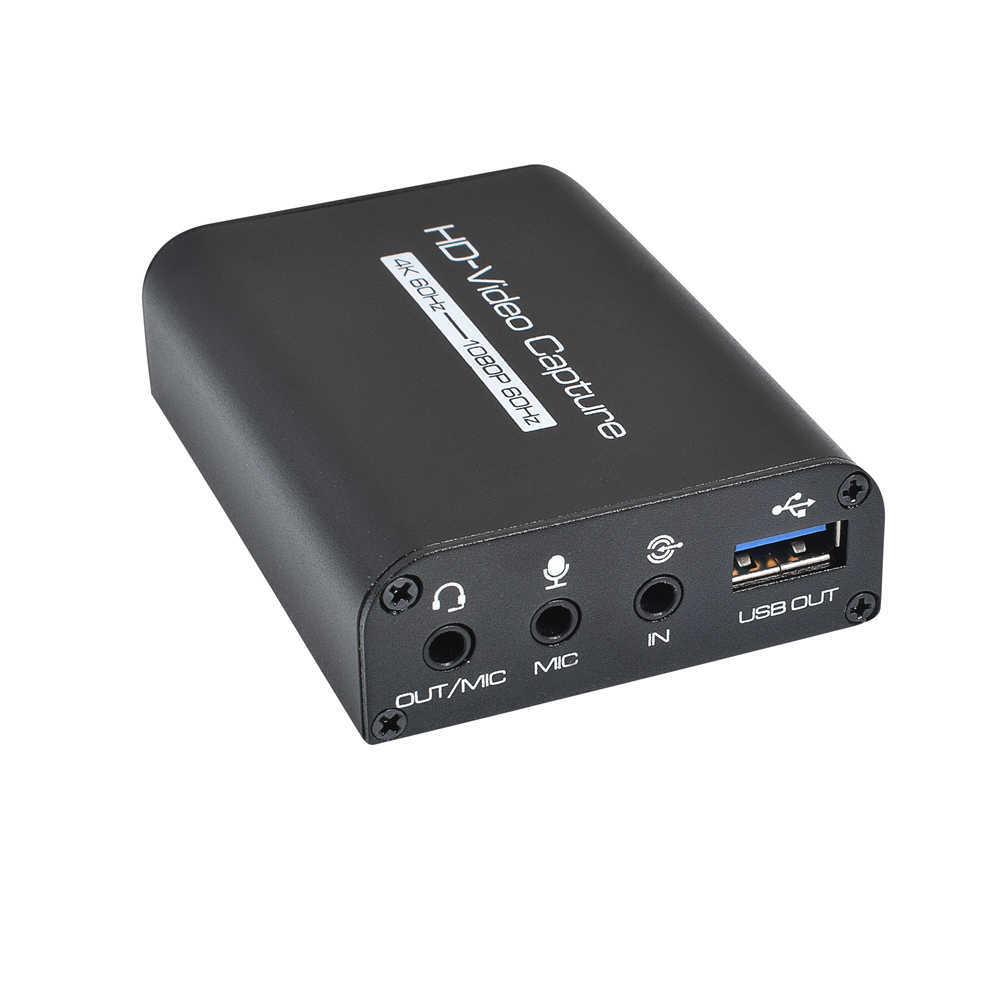

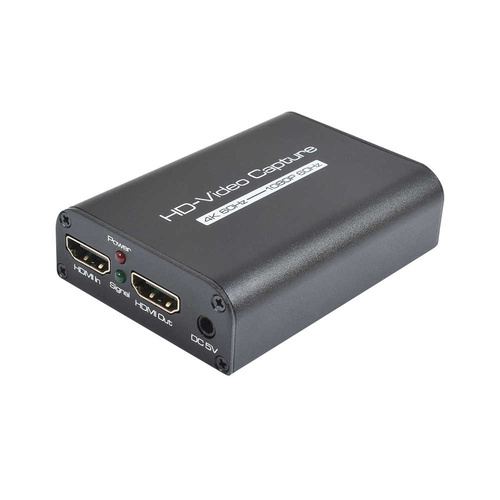

HDMI to USB Recorder Video Capture w/ Microphone Input

Record, edit and save HDMI video on your PC or laptop

The HDMI to USB Recorder Video Capture Box is a small compact device that connects to either a USB 3.0 or a USB 2.0 port to deliver unparalleled video quality at an astonishing 1080p! USB 2.0 applications will require a 5V DC 1A Power Adapter with 3.5mm Mono Plug.

With a microphone input / interface, you are able to broadcast with voice or commentary togethre with the video. Perfect for live streaming, instructional video, youtube videos etc.

With HDMI Pass through, you are able to Record or stream a HDMI AV signal via USB 3.0 with resolutions of up to 1920 x 1080 at 30Hz and still connect to an LCD or TV. View and edit the HDMI AV signals at the same time.

If you need to stream or record at a certain resolution, the device is able to up-scale or downscale the input signal. The HDMI Capture card uses the existing drivers on your computer, the capture device will work with any software that supports those drivers (even possible to use with Skype, Google Hangouts, WebEx and more).

Features
l One HDMI input, One HDMI loop out, Watching and Recording
l Adopting USB channel Recording of high-speed Full HD Screen
l Support 3.5MM microphone input,Plug and play, no setup required
l Compatible with a variety of third-party acquisition software
l High quality USB cable
l Supports recording MJPEG, YUY2 video formats
l Supporting 4K/60hz resolution input


SPECIFICATIONS:

Model No. AA6234

Model name 4K HD-Video Capture

Input ports HDMI2.0 x1,LINE IN x1,MIC x1,DC3.5 x1

Output ports HDMI2.0 x1,USB3.0 x1, Headset x1

HDMI video resolution 720P/1080P/2160P@24/30/50/60Hz

Audio format LPCM2.0/32~192KHz/16/20/24Bit

Input color space RGB、YUV444、YUV422、YUV420

Video output resolution 1920x1080@30Hz Max.

Video output format YUV or JPEG

HDMI input cable length 2160P/AWG 26 ≤5m or1080P/AWG 26 ≤10m

HDMI output cable length 2160P/AWG 26 ≤5m or1080P/AWG 26 ≤10m

Power supply mode USB power supply / DC5V auxiliary power supply

Max working current 600mA

Working temperature range -5 ~ +40℃

Working humidity range 5 to 85%RH（No Condensation）

Storage temperature -15 to 55℃

Storage humidity 5 ~95%RH(No Condensation)

Size 67*26*13 (mm)

Weight 79g



Accessories Manual x1, USB-DC3.5 power cable x1, 3.5mm audio cable x1，USB3.0(Type A) cable x1
