HDR-30-12 24W 12VDC 2A DIN Rail Switchmode Power Supply

DIN Rail Switchmode Power Supplies

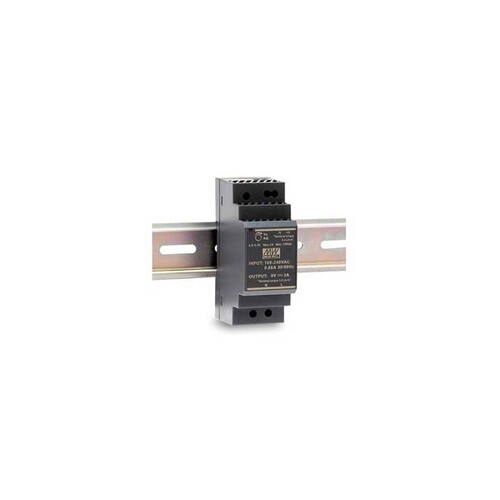

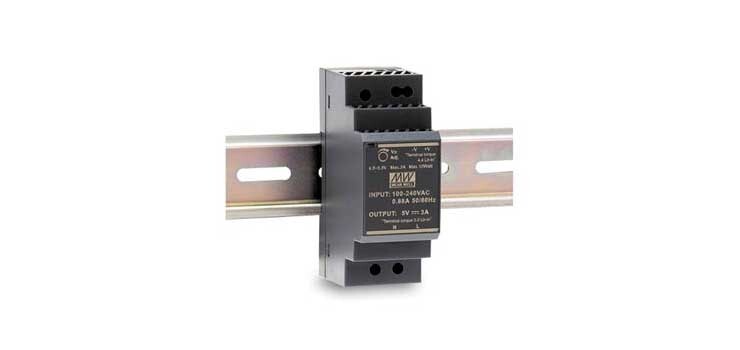

The Mean Well HDR-30-12 is a 24W DIN rail mountable power supply with an output voltage of 12V. The ultra-slim design is ideal for lower current DC power applications in a standardised DIN rail housing to suit mounting to asymmetrical “G” or 35mm top hat type DIN rails. Each unit measures only 90mm high and is supplied in 35mm and 52.5mm widths.

FEATURES:

• 24W power output at 12V DC (2A)
• Ultra slim design with 35 or 52.5mm widths
• Universal AC input
• Protections: short circuit, overload, over voltage
• Cooling by free air convection
• Suits TS-35/7.5 or 15 DIN rail
• LED power indicator

SPECIFICATIONS:

• Mean Well Model: HDR-30-12
• Output: 2A
• Rated Wattage: 24W
• Inrush Current: 25A
• Efficiency: 88%
• Input Range: 85-264V AC, 120-370V DC
• Input Frequency: 47-63Hz
• Warranty: 3 years
• Weight: 120g
• Dimensions: 35 x 90 x 54.5mm
