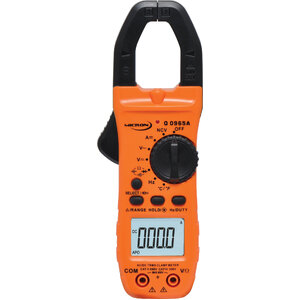

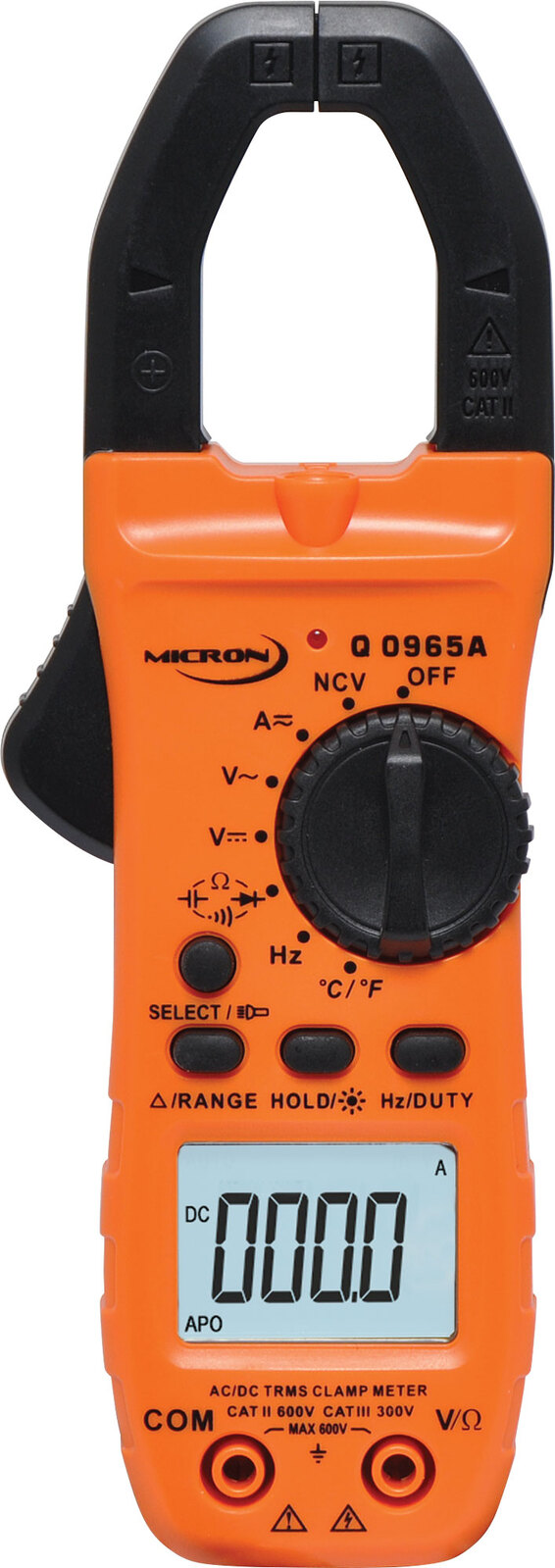

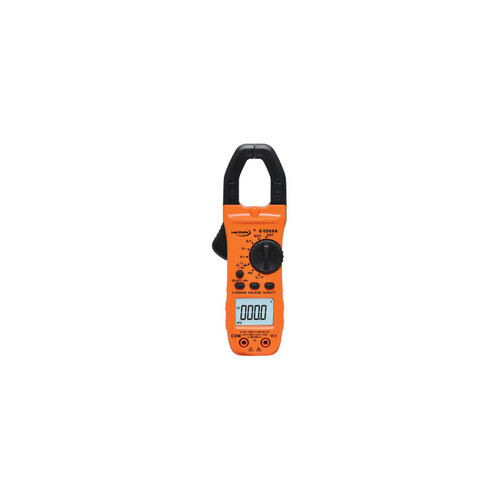

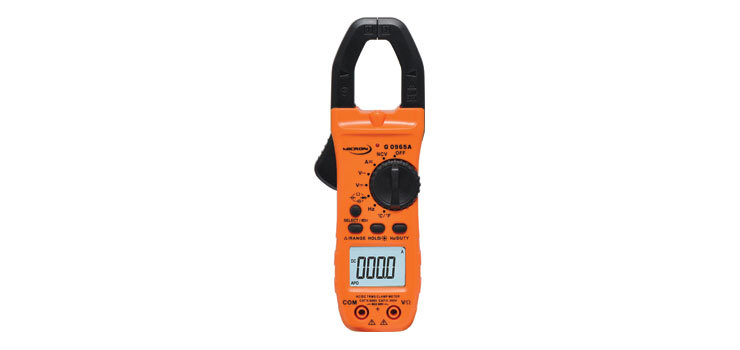

High Current 800A AC/DC Digital Clamp Meter

Easily measure AC or DC Current and Voltage

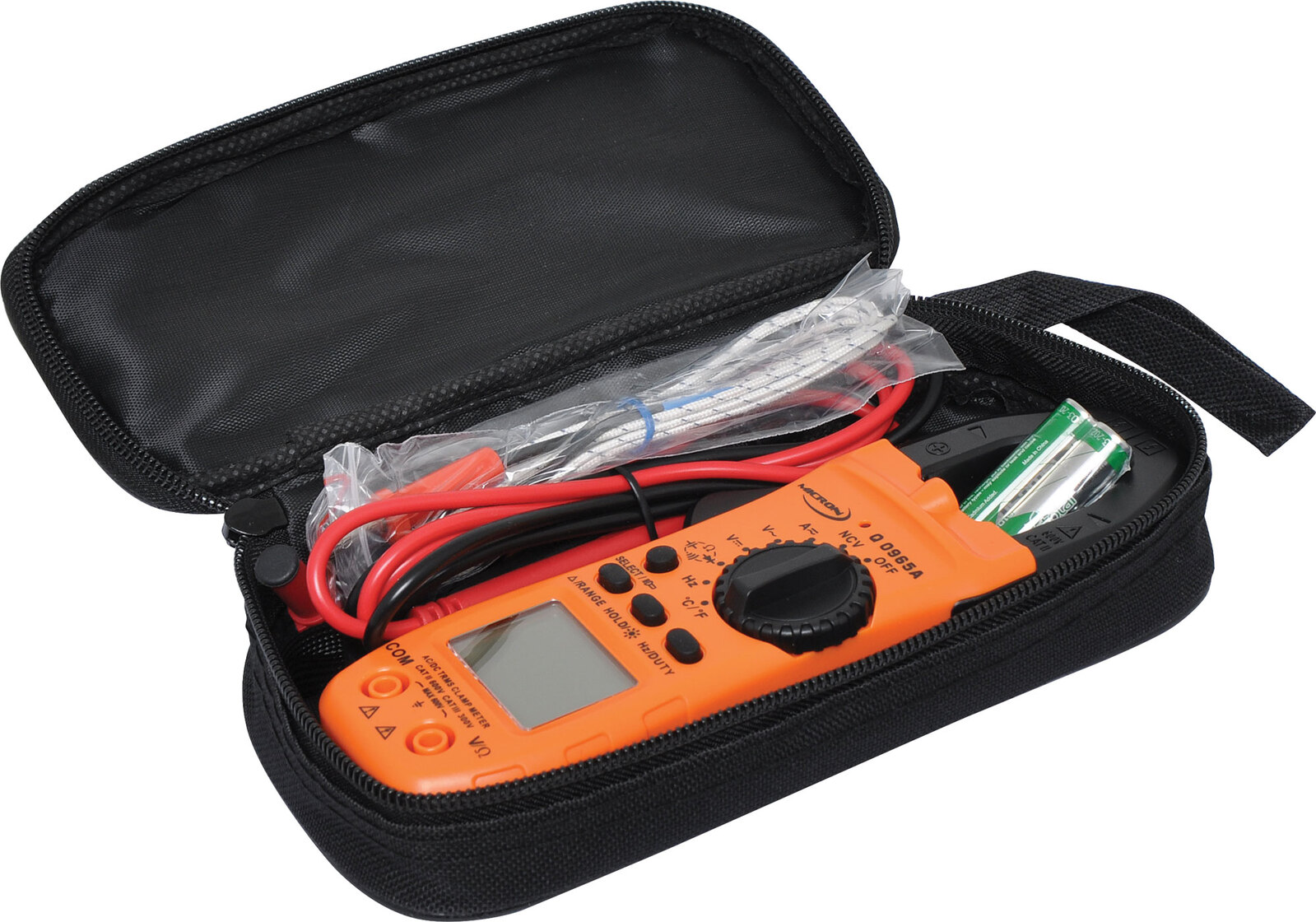

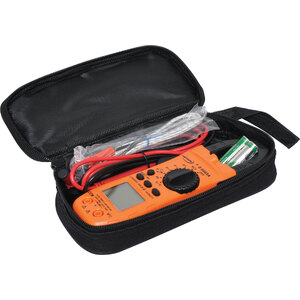

A clamp meter offering the flexibility of measuring AC and DC currents up to 800A. Simply clamp the jaws around the conductor and the display reads the DC or AC current present. It can test DC Volts, AC Volts, DC Amps, AC Amps, resistance, capacitance, frequency, temperature, temperature and continuity. Plus it features an internal non-contact voltage detector for sensing cabling or outlets with live AC voltages present. It includes data hold and relative measurement functions. An essential piece of test gear for high voltage technicians, instrument fitters and other electrical tradespeople. Supplied with high quality test leads, temperature probe, and carry case.


Features

• 800A AC/DC range
• 10mA resolution
• Backlit LCD
• 28mm clamp opening
• Auto power off
• 6000 count LCD readout
• Data hold and relative functions
• Test leads, temperature probe and carry case included
• 2 x AAA battery included
• Cat II 600V, Cat III 300V

Specifications:

• Voltage DC: 600mV - 600V (±0.5%+5d)
• Voltage AC: 600mV - 600V (±1%+5d)
• Current AC/DC: 800A (±1.5%+5d)
• Resistance: 600Ω - 60MΩ (±1%+25)
• Capacitance: 60nF - 6600μF (±5%+20)
• Frequency: 20MHz (±1%+3)
• Duty cycle: 5% - 99.9% (±1.2%+3d)
• Continuity: 50Ω threshold, audible tone
• Diode test: Yes
• Display: 3.75 digit LCD, 6000 count, backlit
• Dimensions: 65W x 36D x 186H mm

  *Specifications are subject to change without notice.
