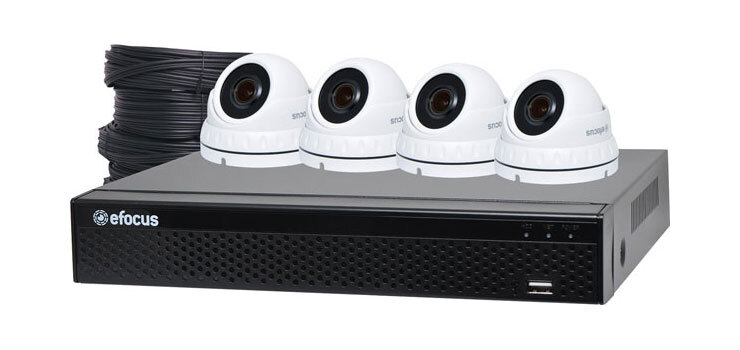

Hybrid DVR & 4 x 5MP AHD Dome Camera Package

Low Cost Surveillance Package for your home or office

This package is a total home or small business solution as it contains four 5MP Cameras plus a surveillance DVR with 5MP recording and more. The solution ideal for homes and small businesses.

Package Content
1x 4CH AHD Hybrid DVR
4x Outdoor Dome AHD IR 20m
4x 18M Coaxial Cable
1x 5CH Power Splitter Cable
1x DC12V/5A Power Adapter
1x USB Mouse


Features

• Support AHD/CVI/TVI/IP/Analog Camera Input

• Up to HD 5MP and IP 8MP Resolution Recording

• Support HD Output, VGA and CVBS Video Output

• Support Max. 4CH HD or 16CH IP Camera Input

• Support 1 SATA up to 6TB Capacity

• Includes cameras, digital video recorder, connection leads & power supplies.

• Easily installs in just a few hours.

• Ideal for home or office.

• Suitable for DIY

• Just add a hard drive and plug it in!

NOTE:
Installations of CCTV systems can vary greatly in configuration and technical complexity. We recommend that unless you have skills in computer networking that you engage a CCTV installer or professional to set up your installation. The process can involve opening router ports, setting up IP routes etc which can be daunting for a beginner. Every installation is different, as a result, it can be difficult to diagnose set up issues over the phone or via email.

• Package

• NVR, 4 x Dome Cameras

• Cable: 4x 18m BNC+DC Cable, 1x (1 to 5CH power cable splitter)

• Mouse: 1xUSB 2.0 Mouse

• Hard Disk: No

• Adaptor: 1xDC12V/5A

• Weight: 7.9kg

•

• Camera Model

• Image Sensor: 1/2.5" CMOS sensor

• Image Resolution: 5M:2592*1944 4M:2560*1440 2M:1920*1080

• TV System: PAL/NTSC

• Electronic Shutter: AUTO

• Scanning System: Progressive Scan

•

• Lens

• Focus Length: 3.6mm

• Focus Control: Fixed

• Lens Type: Fixed

•

• Night Vision

• IR Cut Filter: YES

• Infrared LED: 14µ x 18PCS

• Infrared Distance: 20M

• IR Status: AGC Auto Control

•

• Camera Features

• Day/Night: YES

• OSD Menu: YES

• WDR: DWDR

• UTC: YES

• Noise Reduction: DNR

• White Balance: AUTO / MANUAL

• Gain Control: AUTO

•

• General

• Housing: Metal, IP66

• Bracket: NO

• Operation Temperature: -10℃ ~ +60℃ RH95% Max

• Storage Temperature: -20℃ ~ +60℃ RH95% Max

• Power Source: DC12V±10%, 550mA

• Dimension: φ93 x 74(H) mm

• Weight: 400g

• Model: XVRDA2004HD

•

• System

• Main Processor: HI3520DV400

• Operating System: Embedded LINUX

•

• Video

• Input: Normal Mode: Default: 4*(AHD/TVI/CVI:8M; TVI/AHD: 5M; AHD/TVI/CVI: 4M; AHD/TVI: 3M; AHD/TVI/CVI: 1080P/720P; Analog: 960H)+2*network(MAX 5MP)

• Analog+Network: 2*Analog(AHD/TVI/CVI:8M; TVI/AHD: 5M; AHD/TVI/CVI: 4M; AHD/TVI: 3M; AHD/TVI/CVI: 1080P/720P; Analog: 960H)+7*network(MAX 5MP)

• Lite Mode: Default: 4*(TVI/AHD: 5M@12fps; AHD/TVI/CVI: 4M@15fps; AHD/TVI: 3M; AHD/TVI/CVI: 1080P/720P; Analog: 960H)+2*network(MAX 5MP)

• Analog+Network: 2*Analog(TVI/AHD: 5M; AHD/TVI/CVI: 4M; AHD/TVI: 3M; AHD/TVI/CVI: 1080P/720P; Analog: 960H)+7*network(MAX 5MP)

• Network: 16*5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth ≤48M)

• Input: 4CH BNC

• Signal Type: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network

• Output: 1HD,1 VGA, 1 CVBS

•

• Audio

• Input: 2 Channel, RCA

• Two-way Audio: NO

• Output: 1 Channel, RCA

•

• Alarm

• Sensor Input: 4 CH

• Output: 1 CH

• Motion Detection: 4 Channel(max 9 Channel in pure network mode)

• Trigger Events: Recording, Email, Screen tips, Buzzer, Push notifications(motion detection)

• Email Alarm: Send Image to The Designated E-mail

•

• AI Function

• Face Comparison: 1 channel video stream face Comparison(1 face databases with 10 face images)

•

• PTZ

• Interface: RS485

• Protocol: Pelco-D, Pelco-P

• Baud Rate: 110~921600

• Address: 0~255

•

• Display

• VGA: Resolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz

• HD Output: Resolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz

• Display Split: 16 Channel/9 Channel/4 Channel / 1Channel

• Privacy Masking: 3 Rectangular Zones (Each camera)

• OSD: Camera title, Time, Video loss, Alarm, Motion detection, Recording

•

• Recording

• Video Compression: H.265/H.265+/H.264/H.264+

• Audio Compression: G.711u/G.711a

• Resolution: 5MP(2592×1944),8MP_LITE(1920×2160),5MP_HALF(1296×1944),4MP(2560×1440),4MP_HALF(1280×1440),3MP(2048×1536),3MP_Lite(1024×1536),1080P(1920×1080),720P(1280×720),960H(P:960×576/N:960×480)

• Video Quality: Worst/Worse/Ordinary/Well/Best

• Record Rate: Normal Mode:

• Analog: PAL:8MP_LITE(1920×2160 4*8fps), 5MP(2592×1944 4*6fps), 5MP_HALF(1296×1944 4*10fps),4MP(2560×1440 4*8fps),4MP_HALF(1280×1440 4*15fps),3MP(2048×1536 4*9fps),3MP_Lite(1024×1536 4*18fps), 1080P(1920x1080 4*15fps),720P(1280×720 4*25fps), 960H(960×576 4*25fps)

• NTSC:8MP_LITE(1920×2160 4*8fps), 5MP(2592×1944 4*6fps),5MP_HALF(1296×1944 4*10fps),4MP(2560×1440 4*8fps),4MP_HALF(1280×1440 4*15fps),3MP(2048×1536 4*9fps),3MP_Lite(1024×1536 4*18fps), 1080P(1920x1080 4*15fps),720P(1280×720 4*25fps), 960H(960×480 4*25fps)

• Lite Mode:

• PAL:5MP_Lite(1296×1944 4*10fps),4MP_Lite(1280×1440 4*15fps),3MP_Lite(1024×1536 4*18fps),1080N(960x1080 4*25fps),720P(1280×720 4*25fps), 960H(960×480 4*25fps)

• NTSC: 5MP_Lite(1296×1944 4*10fps),4MP_Lite(1280×1440 4*15fps),3MP_Lite(1024×1536 4*18fps),1080N(960x1080 4*25fps),720P(1280×720 4*25fps), 960H(960×480 4*30fps)

• Pure IP(H.265):

• PAL: 5MP@8×25fps,4MP@12x25fps,3MP@12×25fps,1080P@16×25fps,960P@16×25fps,720P@16×25fps,D1@16×25fps

• NTSC: 5MP@8×30fps,4MP@12×30fps,3MP@12×30fps,1080P@16×30fps, 960P@16×30fps, 720P@16×30fps, D1@16×30fps

• Record Mode: ManualTimerMotion DetectionAI AlarmAlarm Input

•

• Playback & Backup

• Decode Capability: 2CH 1080P@30fps

• Sync Playback: Pure Analog: 4CH 5M@6fps, 4CH 8M_Lite@8fps, 4CH 4M@8fps, 4CH 3M@9fps, 4CH 1080p@15fps, 4CH 1080N@25fps

• Mix Mode: 1CH 5M@30fps, 1CH 4M@30fps, 1CH 3M@30fps, 2CH 1080P@30fps, 4CH 1080p@15fps

• Pure IPC: 1CH 5MP@30fps, 1CH 4MP@30fps, 1CH 3M@30fps, 4CH 1080P@15fps, 2CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps

• Remote Playback: 4 Channel / 1Channel

• Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection

• Playback Functions: Play, Pause, Stop, Fast play, Slow play, Rewind, Single frame forward/back, Digital Zoom, Full screen

• Smart Phone Playback: 4 Channel

• Backup Mode: USB Device(with format FAT 32 )/Network/FTP

•

• Network

• Interface: 1 RJ45 10M/100M Adaptive Ethernet Interface

• Network Functions: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, PPPoE, DHCP, FTP, DDNS, RTP, RTSP, RTCP

• DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE, HDPROVN

• Web Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)

• CMS Software: Support Windows 7/ Windows 8/Windows 10

• Extra Stream: CIF/D1(1~25fps)

• Smart Phone: iPhone, iPad, Android ,Android pad

•

• Hard Disk Driver

• Interface Type: 1 SATA Interface

• Capacity: 1 SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB)

•

• General

• Language: Simplified Chinese,Traditional Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese, Japanese

• UTC Control: YES

• USB Interface: 2 USB 2.0 Interfaces

• Power consumption: DC 12V/2A ≤4W (Without Hard Disk)

• Working Environment: -10~55℃/10~90%

• Dimension (W×D×H): 260*215*43(mm)

• Weight: 2kg (Without HDD)

  *Specifications are subject to change without notice.
