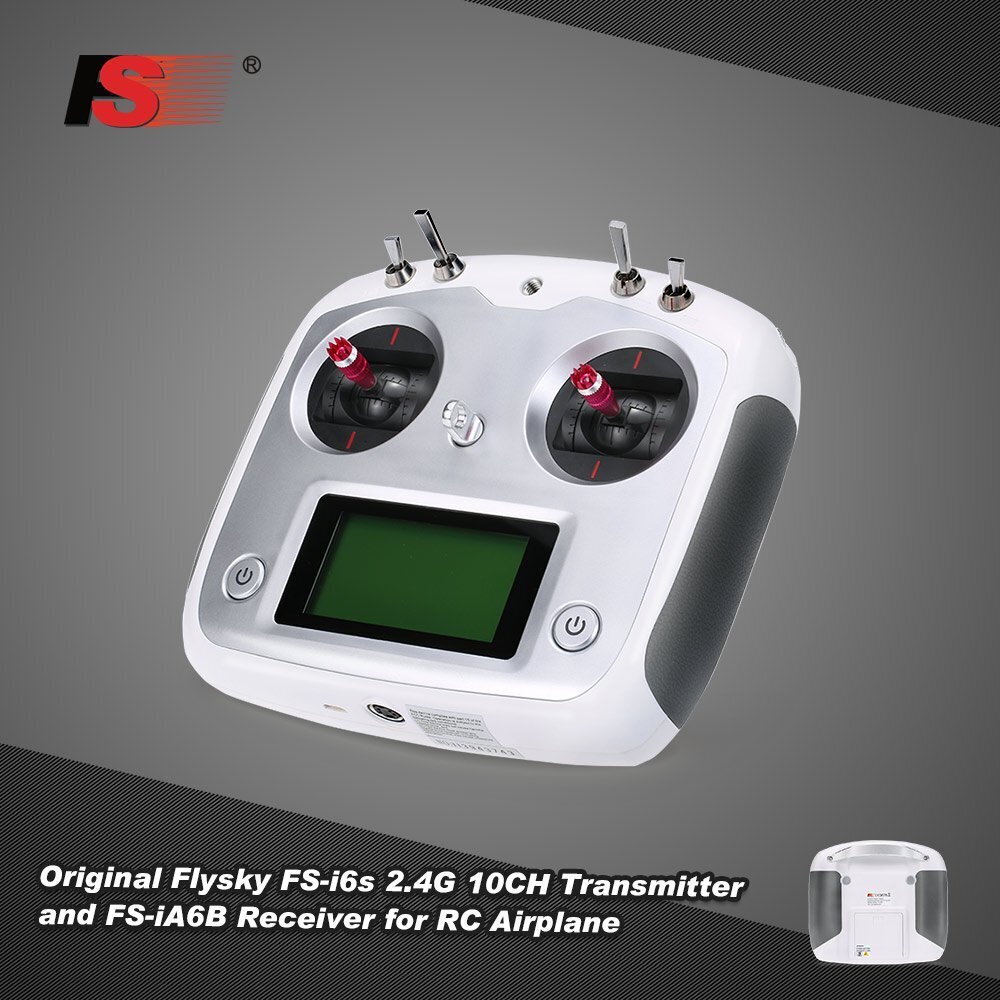

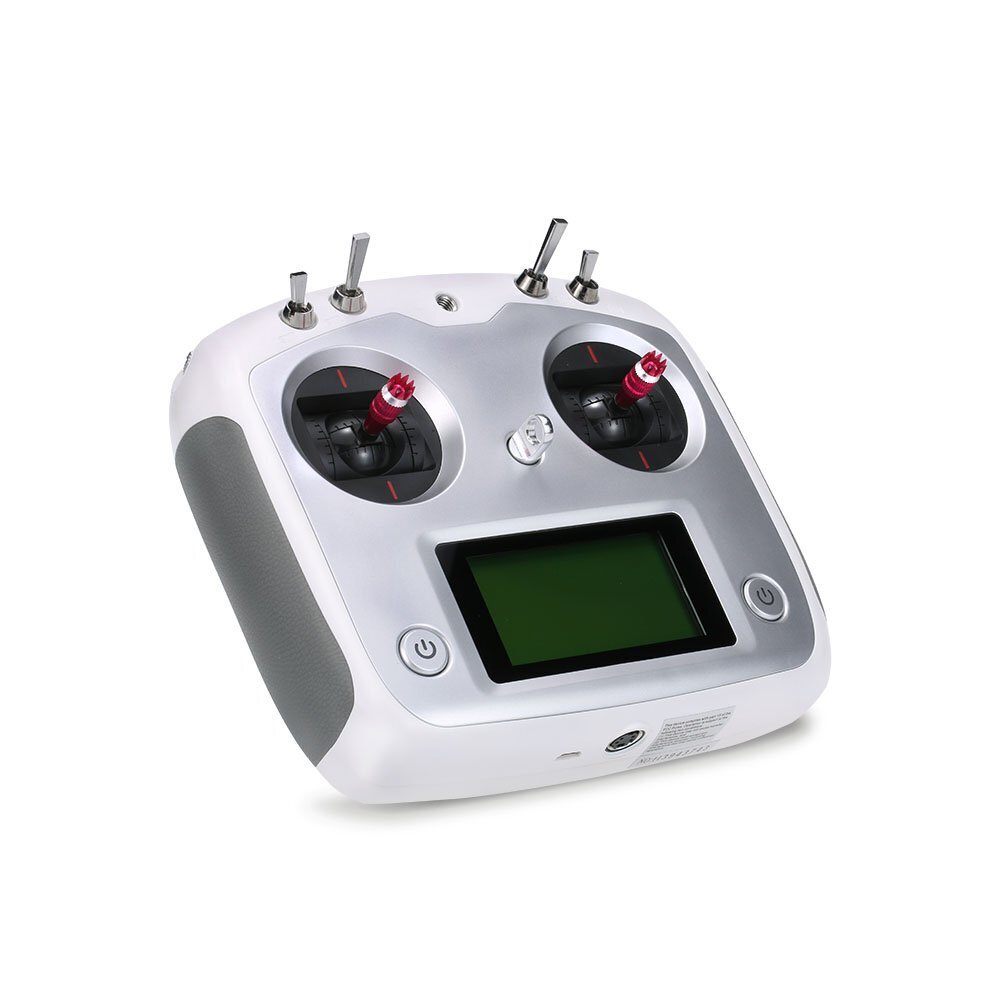

I6S 6 Channel 2.4GHz Radio Transmitter with Receiver

Digital Radio Controller w/ multi channel Hopping

The Flysky I6S is a 16 Channel Radio suited for RC Drones, planes, helicopters etc. It operates on frequency range of 2.405 to 2.475GHz.This band has been divided into 142 independent channels,each radio system uses 16 different channels and 160 different types of hopping algorithm.Silm design on transmitter for easy handling!

This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency band. Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission

Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety

This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption

AFHDS2A system has the automatic identification function,which can switch automatically current between single-way communication and two-way communication according to the customer needs, built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce the error ratio and extend the reliable transmission distance

Specification:

Transmitter Specification:

Channel: 10

Channel resolution: 4096 steps

Low voltage warning: less than 4.2v

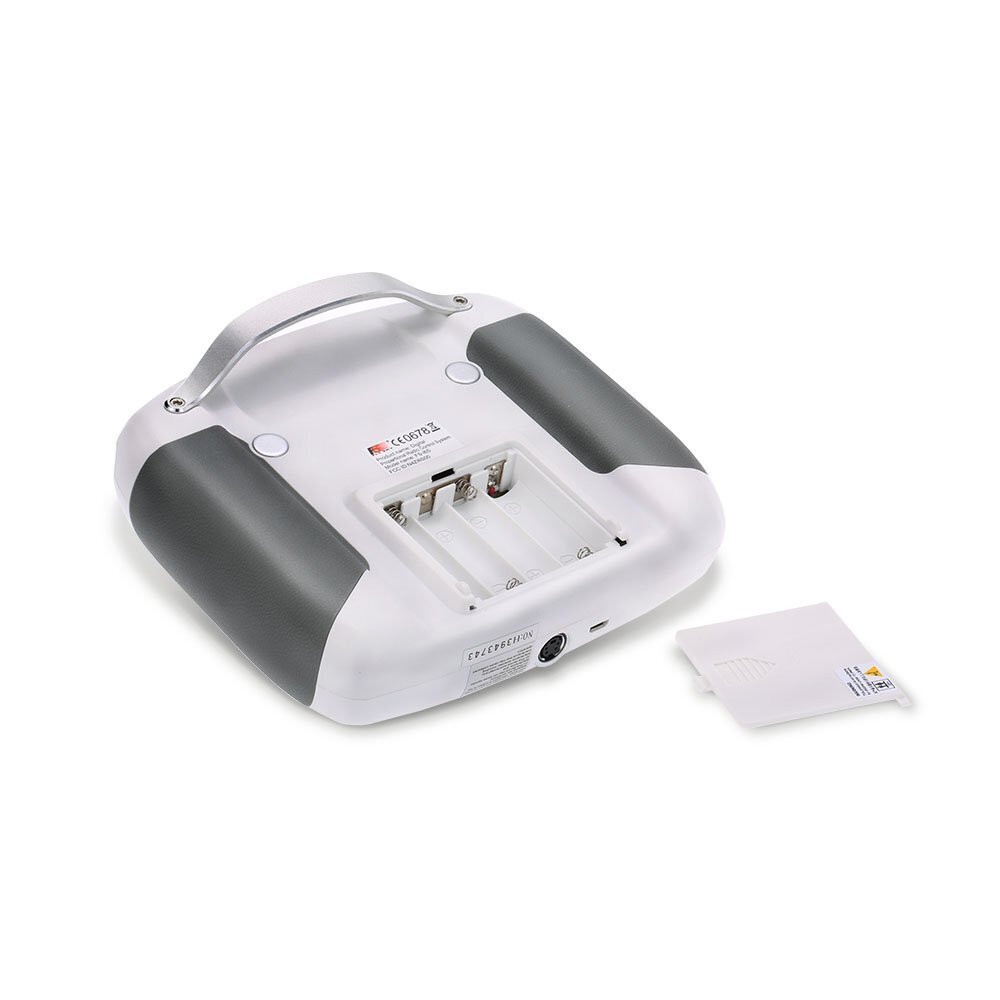

Battery: 6v 1.5 AA x 4(not included)

Certificate: CE ,FCC

RF Specification:

RF Range: 2.405 - 2.475GHz

Bandwidth: 500khz

RF Power: less than 20dBm

RF : AFHDS 2A

Modulation type: GFSK

RX Sensibility: -105dBm

Receiver Specification:

Channel: 6

Model type: fixed wing/helicopter/glider

RF receiver sensitivity: -105dBm

Modulation: GFSK

System type: AFHDS2A/AFHDS

Channel resolution: 1024 steps

Bind port: yes

Power port: yes( VCC)

Power: 4V -6.5V DC

Certificate: CE ,FCC

Size Chart:

Size: approx. 18 x 16 x 4.5cm/7.09 x 6.30 x 1.77inch

Antenna length: approx. 26mm/1.02inch

Package Includes:

1 Piece FS-i6S transmitter

1 Piece FS-iA6b Receiver

1 Piece Manual
