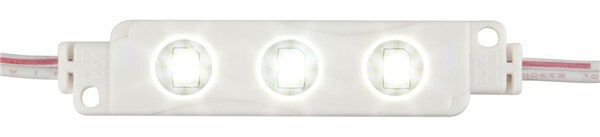

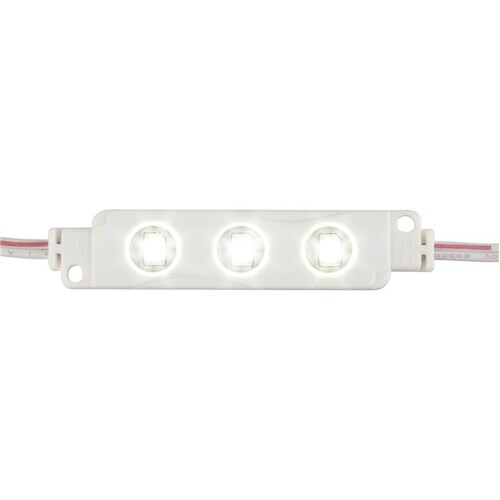

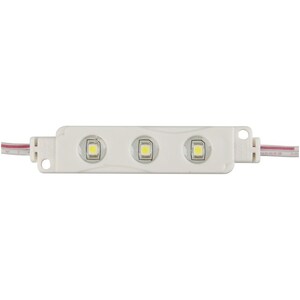

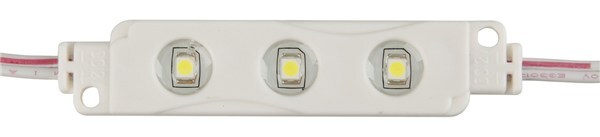

IP65 LED String Light Module - 10 x 3 x 3528 LEDs - Cool White
Waterproof 30 LED String Light Module
SKU: OP1192
IP65 LED String Light Module - 10 x 3 x 3528 LEDs - Cool White
Waterproof 30 LED String Light Module
A very flexible and weatherproof (IP65) solution for low power lighting; use for backlighting of signs, illuminating stairwells, marine lighting, caravan lighting, etc. Each string is supplied as a 1m length of wire, with ten modules containing three high brightness SMD LEDs along the length of the string. You can cut the string to supply power to each module separately if you wish, allowing for a whole host of different applications. Simply provide 12VDC power and you are in business. Available in standard 3528-LED or ultra-bright 5050-LED versions, and in cool white, warm white or blue colours depending on the model you chose
IP65 LED Light Module String, 10x 3x3528-LEDs, Cool White
Features:
• Lumen output: 13.5lm per module (135 total)
• LEDs: 10x (3x3528)
Note: Wiring Connections : White Wire = Positive, White Wire with RED Strip = Negative
Specifications
Colour Temperature : 6000K, 6500K |
Length : 71mm |
Width : 15mm |
Height : 5.5mm |
Packaged Volume : 0.29l |
Packaged Weight : 0.07kg |
Packaged Length : 14cm |
Packaged Width : 10.5cm |
Packaged Height : 2cm |
LED Type : 3528 SMD |
Light Colour : Cool White |
Viewing Angle : 120° |
Vf (typ) - Typical Forward Voltage : 12V |
If (typ) - Typical Forward Current : 300mA |
12 Month Warranty
SKU | OP1192 |
Barcode # | 9351634069491 |
Brand | Aus Electronics Direct |
Shipping Weight | 1.0000kg |
Shipping Width | 0.600m |
Shipping Height | 0.050m |
Shipping Length | 0.250m |
Shipping Cubic | 0.007500000m3 |
Unit Of Measure | ea |
