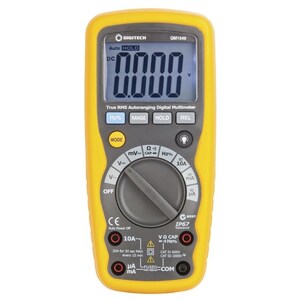

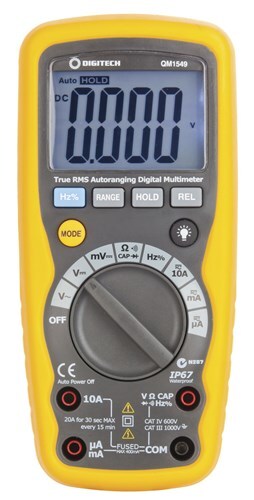

IP67 True RMS Autoranging Cat IV DMM
Waterproof True RMS Auto Range Digital Multimeter
SKU: TT4576
IP67 True RMS Autoranging Cat IV DMM
Waterproof True RMS Auto Range Digital Multimeter
This is an excellent true RMS multimeter that features a large, easily read display and carries an IP67 environmental rating. This means the multimeter is waterproof and will not be damaged if accidentally dropped into water or left out in the rain. The meter has data should and relative measurement capabilities and is housed in a robust, double moulded case. Includes leads, soft carry case and user manual.
Features:
• IP67 waterproof
• True RMS
• Auto power-off
• Backlight
• Data hold & relative function
• Diode test
• Autoranging
• Audible continuity
• 10A current range
• Double moulded case
• Display 4000 count
• Security Class Cat IV 600V
• Basic DCV accuracy 0.500%
• Ave/RMS True RMS
• Input impedance 10M
• Special features IP67, data-hold, relative measurement, backlight
Specifications
| Dust/Particle Ingress Protection : 6 - Dust tight, no ingress of dust |
| Liquid/Moisture Ingress Protection : 7 - Immersion up to 1m |
| IP Rating certificate : true |
| Capacitance Ranges : 4nF, 40nF, 4µF, 40µF, 100µF |
| Capacitance Accuracy : 3% |
| Continuity indicator : Needle |
| AC Current Ranges : 4mA, 40mA, 400mA, 10A |
| AC Current Accuracy : 1.8% |
| DC Current Ranges : 4mA, 40mA, 400mA, 10A |
| DC Current Accuracy : 1.2% |
| Frequency Ranges : 4kHz, 40kHz, 400kHz, 4MHz, 10MHz |
| Frequency Accuracy : 1.5% |
| Resistance Ranges : 400Ω, 4kΩ, 40kΩ, 400kΩ, 40MΩ |
| Resistance Accuracy : 0.8% |
| AC Voltage Ranges : 400mV, 4V, 40V, 400V, 1000V |
| AC Voltage Accuracy : 0.8% |
| DC Voltage Ranges : 400mV, 4V, 40V, 400V, 1000V |
| DC Voltage Accuracy : 0.5% |
| Data Hold : true |
| Relative Measure : true |
| Display Type : LCD |
| Display Backlight : true |
| Safety Rating Cat : Cat IV |
| Safety Rating Max Volt : 600V |
| Count Maximum Reading : 4000 count |
| True RMS : true |
| Autorange : true |
| Measures duty cycle : true |
| Length : 182mm |
| Width : 82mm |
| Depth : 55mm |
| Size / Shape : 9V |
| Battery quantity : 1pc |
| Batteries included : true |
| Batteries can be replaced by user : true |
| Compartment location : Internal / In-built |
| How is battery compartment kept closed : Clip and Screw |
| Packaged Volume : 2.46l |
| Packaged Weight : 0.66kg |
| Packaged Length : 23.3cm |
| Packaged Width : 13.2cm |
| Packaged Height : 8cm |
| Probe rating voltage : 600V |
| Probe safety rating : Cat IV |
| Meter Input Impedence : 10Ω |
| Input Protection Fuse : 500mA, 10mA |
| Measures diode : true |
| Casing : Plastic |
| Carry Case Included : true |
3 Month Warranty
| SKU | TT4576 |
| Barcode # | |
| Brand | Aus Electronics Direct |
| Shipping Weight | 0.3000kg |
| Shipping Width | 0.300m |
| Shipping Height | 0.050m |
| Shipping Length | 0.250m |
| Shipping Cubic | 0.003750000m3 |
| Unit Of Measure | ea |
| Assembled Length | 0.700m |
| Assembled Height | 0.240m |
| Assembled Width | 0.126m |
