Koswork Buggy Clutch Shoe and Spring Assembly Tool Set

Quickly Remove and Install Clutch Shoes

• Fine tuned to quickly install & remove clutch shoes

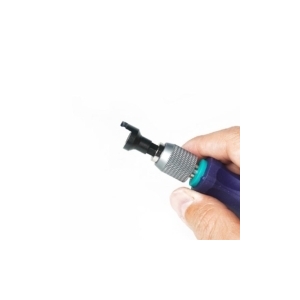

• Can be easily installed to a handle with 1/4″ (6.35mm) quick release bit holder
• Made of hardened steel

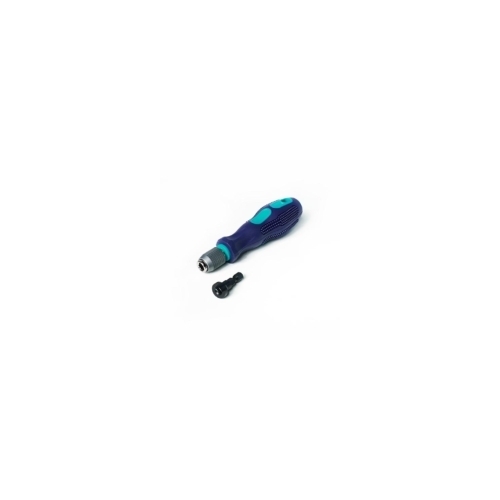

• Quick Release 1/4″ 6.35mm Drive Hex Driver Handle included

Note: For use with 3 shoe clutches only.

Instructions:

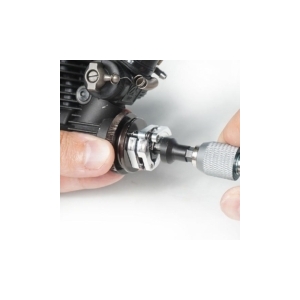

When installing the clutch shoes, put the tool spring guide (hook) under the clutch spring. Turn the tool counter-clockwise to lift the spring above the clutch nut and push to seat the shoe. Then, turn clockwise to let the spring guide (hook) rotate out from beneath the clutch spring. In case the spring is not well seated, just use the top of the tool to push the spring and make it sit in the groove of the clutch nut.

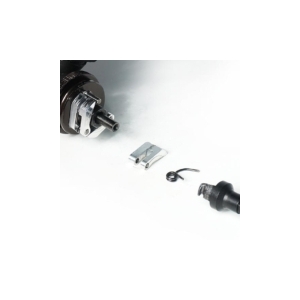

To remove the clutch shoes, simply put the the spring guide (hook) under the clutch spring and rotate the tool counter-clockwise to lift the spring out of the clutch nut groove. Then, pull the tool off the crank to remove the clutch shoe and spring.

*Cars, parts, accessories & others are not included.
