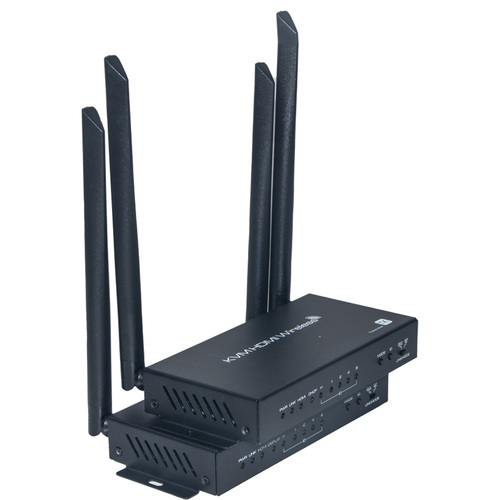

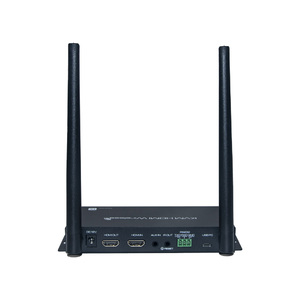

KVM HDMI Wireless AV Sender Extender

Extend USB Keyboard, Mouse & HDMI video signal Wirelessly

This KVM HDMI Wireless AV Sender Extender will transmit HDMI AV signals with USB inputs for Keyboard and mouse up to 100m (unobstructed) in range. It uses a dual band transmission system so it has high transmission rate and strong anti-interference capability.

It has a HDMI loop out (HDMI input port and HDMI output port) to connect to a main display and send wirelessly to another display without needing a HDMI splitter. The HDMI Wireless Extender is widely applicable to office presentation, lecture, education, conference, family entertainments etc.

Specifications

Model name : KVM HDMI Wireless Extender
Ports :
TX: HDMI IN x1, HDMI OUT x1, AUX IN x1, IR OUT x 1, RS232
x1, Micro USB x1, DC JACK x1
RX: HDMI OUT x1, AUX OUT x1, IR IN x 1, RS232 x1, USB2.0
x2, DC JACK x1
HDMI input resolution : 480P/720P/1080P/2160P@60/50/30/25/24
HDMI loop output resolution : Same as input, with no latency
HDMI output resolution : 480P/720P/1080P@60，Output 4K@30 when 4K input
HDMI Audio format : LPCM (48/44.1/32KHZ 16/20/24bit)
Input/output TMDS signal : 0.5~1.5Vp-p(TTL)
Input/output DDC signal : 5Vp-p(TTL)
Transmission latency : Less than 80ms
Wireless standard : 802.11 ac WiFi MIMO technology
Wireless Band : 4.900 GHz ~ 5.845 GHz (5GHz ISM Band)
Antenna type : External dual 5dBi gain antenna
Transmit Output Power :
802.11ac /MCS9: 15 dBm ± 1.5 dB
@ EVM ≤ -32dB
Transmission distance : ≤100m (in open space)
IR Carrier frequency 20~60KHz
Power adapter specification Input: AC 100~240V / Output: DC 12V/1.5A
Max working current TX≤ 400mA, RX≤ 300mA
Working temperature range 0~ +40℃
Working humidity range 10 to 85%RH（No Condensation）
Storage temperature -10 to 60℃
Storage humidity 5 ~95%RH(No Condensation)
Size TX/RX:170.5*74.5*27.5 (mm)
Weight TX:325g,RX:330g
Accessories
Transmitter x1, Receiverx1, Manualx1, Power Adaptorx2, Micro
USB-USB cable x1, IR Transmitter cable x1, IR Receiver cable x1
