LCD Screen Joystick Expansion Board Shield for Arduino Projects

LCD Joystick expansion Board shield for your Arduino

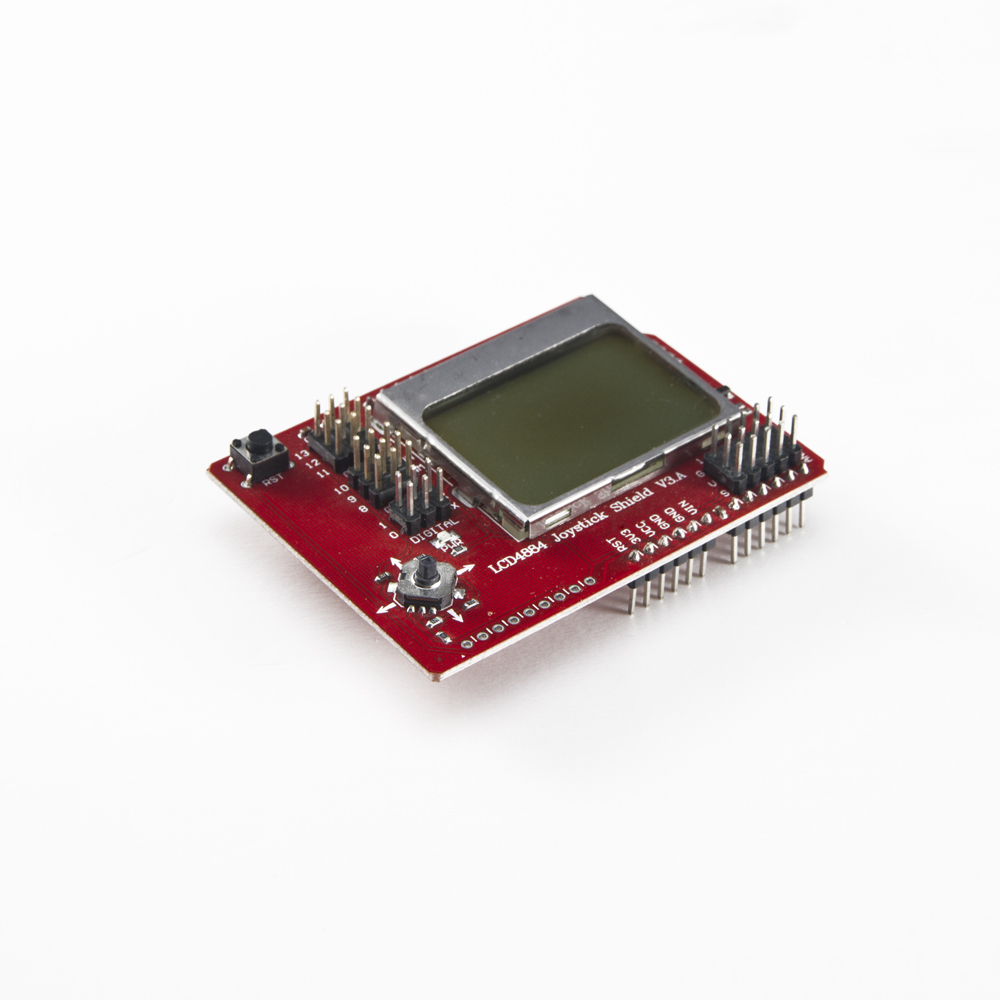

LCD4884 LCD Joystick Shield v2.0 LCD4884 LCD expansion board with Nokia 5110 LCD screen for display is suitable for a variety of development boards and controllers, for example: Arduino controller, Respberry Pi, STC microcontroller, AVR microcontroller and so on.

With an SPI interface, it saves I / O inputs and outputs. Includes a five-way joystick functionality, it is easy to install with other sensors and modules.

Specifications
1 Product name:. LCD4884 LCD rocker panel extensions
2 Item No.: RB-05L007
3 Operating voltage:. DC5V
4 Product Type:. Arduino expansion boards
5 Production process:. FR4 double-sided HASL
6 user-friendly design: the man-machine interactive interfaces having "five rocker"
7 Working temperature:. 10 ℃ -30 ℃
8 Weight:. 28g
9 Product Dimensions: 69.47mm x 53.34mm x 18mm
10 shipping list:. LCD4884 LCD rocker panel extensions × 1
11 onboard resources:
DIGITAL: 8
ANALOG IN: 5
48 × 84 LCD: 1
Five joystick buttons: 1
System reset button: 1
