Lithium Iron Phosphate LiFePO4 Battery Charger

12.8V LiFePO4 Battery Charger

This compact charger is suitable for charging Lithium Iron Phosphate batteries (LiFePO4 type) from mains power. It can be left permanently connected to the battery ensuring batteries are ready to go when required. Ideal for motorised golf buggies, mobility scooters, caravans and campers etc. Includes ring terminal and crocodile clips for easy direct connection to the battery. A two state indicator displays when the charger is outputting greater than 0.5A to 5A (red – charging), or less than 0.5A (green – charged/battery maintenance charging). Suitable for use with 12.8V LiFePO4 batteries only.

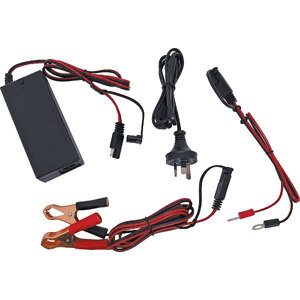

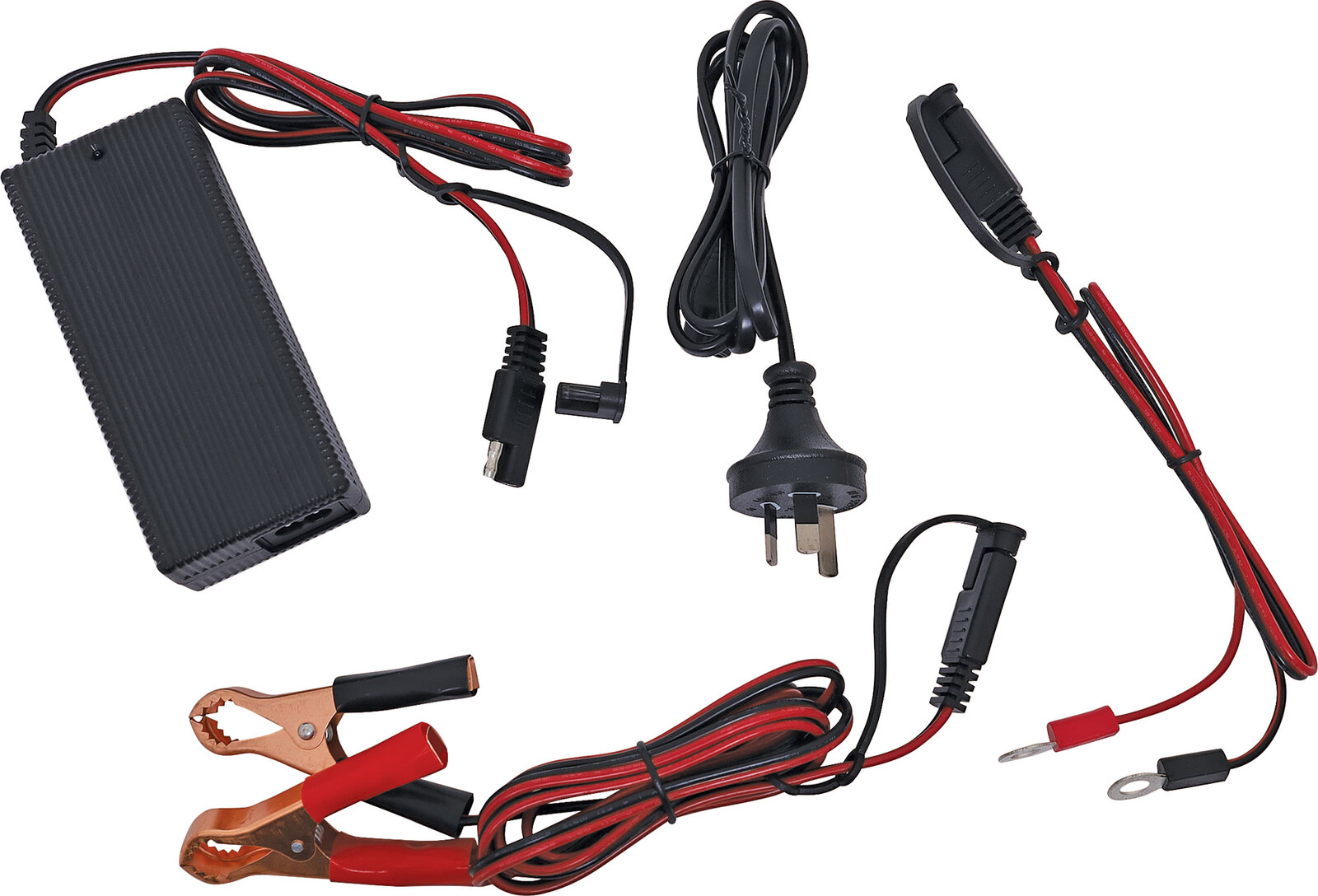

Package Contents
Battery Charger
Cable with ring connectors
Cable with battery alligator clips
Mains plug power cable
Instruction Manual


Features

• Plug and Charge
• Can be left permanently on charge
• Interchangeable charge leads

Specifications:

• Operating voltage: 200-240V a.c.  50/60Hz
• Input Power (No Load): 50mA 240V a.c. 50/60Hz
• Input Power (Loading): 1.5A 240V a.c. 50/60Hz
• Operating Temperature Range: -29°C to 45.5°C
• Output DC voltage: 14.6V
• Output DC current: 0.5A-5A (charging), <0.5A (maintenance)
• Battery Chemistry: LiFePO4 Lithium
• Efficiency: 88% at min rated input and output
• Dimensions: 132L x 59W x 31Dmm

  *Specifications are subject to change without notice.
