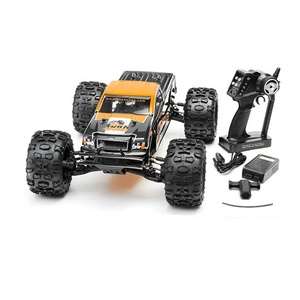

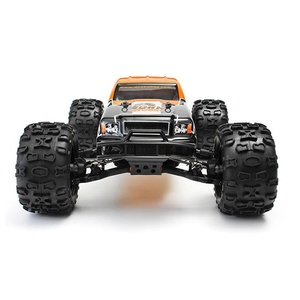

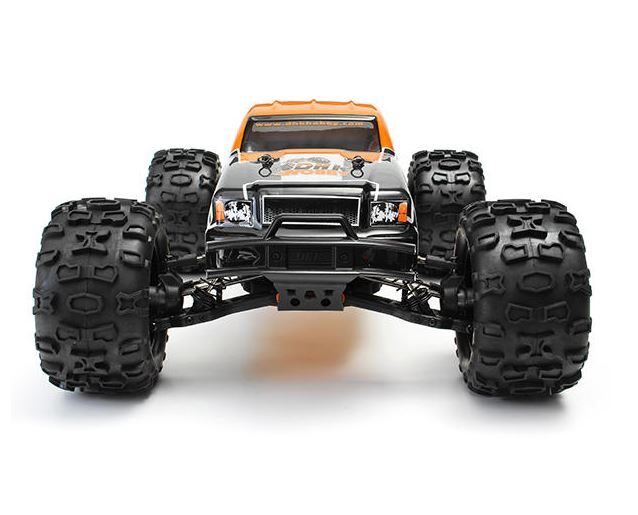

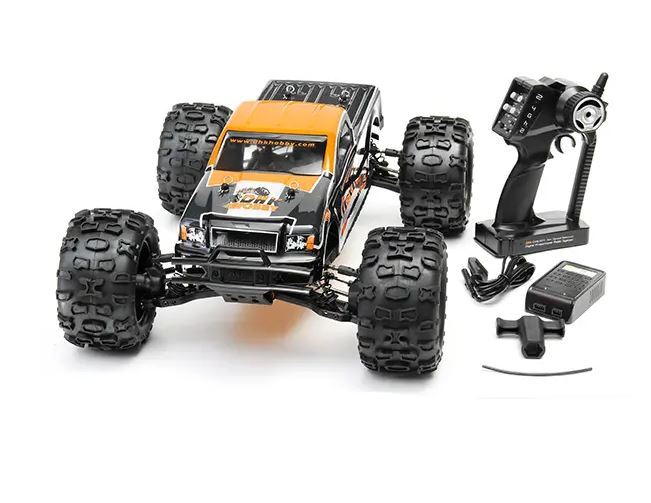

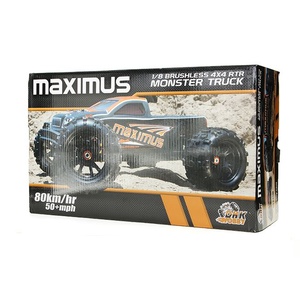

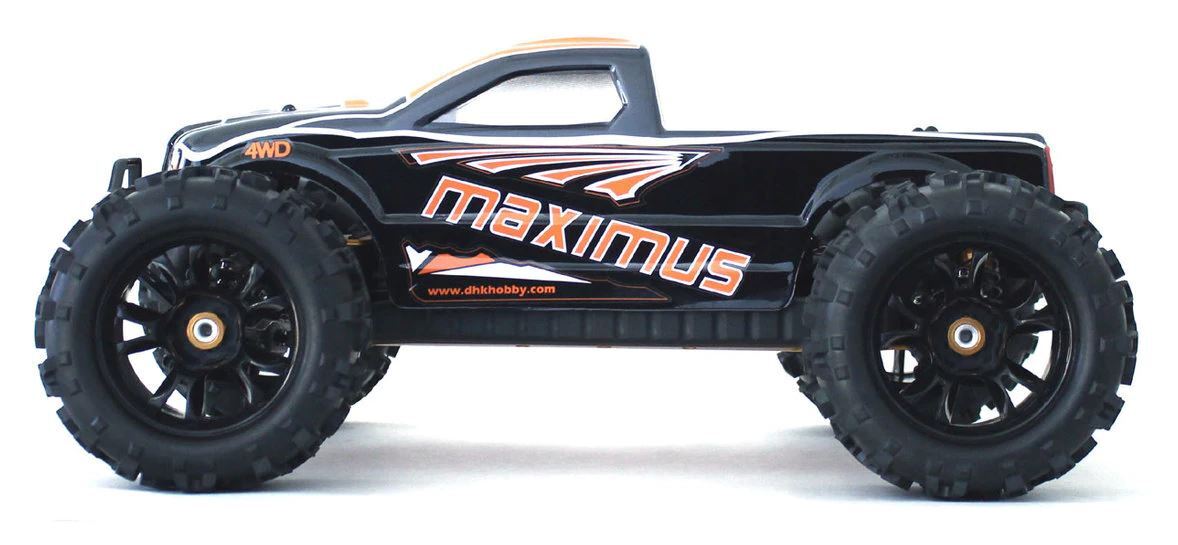

Maximus 1:8 4WD Off Road Brushless RC Monster Truck
The biggest, baddest and fastest RC Truck!
SKU: TR1430
Maximus 1:8 4WD Off Road Brushless RC Monster Truck
The biggest, baddest and fastest RC Truck!
Reaches speeds over 80 KPH!
Looking for the biggest, baddest and Fastest Ready to Run RC Truck? Look no further, the Maximus 1:8th scale measures at a monterous length of 497mm. Equipped with a powerful Brushless Motor and ESC, it is capable of reaching speeds of 0ver 80kmph. It has dual 7.4V 3200mAh Li-Po batteries which not only provides a balanced weight distribution but will also keep the truggy tearing through all types of terrain up to to over 20 minutes.
It has a 4 Wheel Shaft Drive system with 3 differentials with metal gears. It is big and strong and durable. With a gearbox design that has a low centre of gravity matched with an adjustable big bore shocks, it is able to achieve a superb handling and driving capabilities off road and rough terrains.
A great RC Buggy if you want a high quality platform that is easily serviceable and upgradeable.
2.4GHz Remote controller that can reach up to 150m control range, all that is needed is 4 x AA batteries for the remote controller.
SPECIFICATIONS:
Length: 497mm
Width: 389mm
Height: 181mm
Wheelbase: 350mm
Weight: 3.32kg
ESC: 120A Brushless
Motor 2260kv 11.1V
Steering Servo: 9kg Metal Gear
Radio: DHK 2.4GHz Pistol Grip
Speed: 80+ KPH
Batteries: 2 x 7.2v 20C 3200mah Lipo
ITEMS REQUIRED, BUT NOT INCLUDED:
AC or AC/DC LiPo Battery Charger
4 'AA' Alkaline Batteries for Transmitter
FEATURES:
DHK 2.4GHz Pistol Grip
3-channel Receiver with Fail Safe.
Waterproof 9KGS Servo
2 x 7.4v Lipo Batteries Included
Adjustable wheelbase, multiple shock mounting options
Powerful shock protection performance (full metal shock absorbers)
Machined steel gears and solid differentials gears
Three differentials and four wheel drive system
Front universal joint and full ball bearings
Light but solid anodized aluminium chassis
High performance durable brushless motor
ESC with termperature and battery safe protection
Speed control can be programmed with programming card (supplied separately)
Front/rear metal sway bars
Hobbywing 120A Waterproof Brushless ESC
The high power, brushless, inrunner motor coupled to a durable 120A, fan-cooled ESC extracts maximum performance and fun.
Keeping the motor cool is handled by the fully-finned, CNC-machined motor mount.
Suspension is courtesy of snazzy, anodised, 16mm, oil-filled, metal shocks
The anodised, T6 3mm aluminium chassis has all the screws recessed to limit damage to the heads and the side protection plates for the radio are moulded in tough plastic to resist knocks over and over
Shocks mount on the tough, anodised, aluminium shock towers and have optional mounting positions top and bottom.
C.V.D's
Fully ballraced for long life and minimum power loss
Water Proof Receiver Box
Grip is transmitted via large, tough wheels and chunky, all-terrain tyres.
A tread pattern that works copes with just about any off-road surface.
Power isn't everything. You need to transmit that power into the ground and this is where the Maximus scores yet again.
You have 4WD through 3 differentials, metal gears in the differentials and metal drive shafts.
Camber and toe-in can be adjusted on the front and camber only on the back
Anti-roll bars both front and rear.
The top spine again uses anodised aluminium and creates a really strong structure to resist bending in jumps and rough off-road driving.
The front hub carriers are aluminium for low unsprung weight and durability and 17mm aluminium hex's.
The Maximus even has an electric fan to keep the motor cool, usually an option part on many cars.
Spare Parts:
Each RC Truck consists of many parts. We stock majority of the most commonly replaceable parts. Not all spare parts are listed on our website.
The product is supplied with an instruction manual. The manual shows an exploded parts view with spare part sku numbers are indicated. Please note of the spare part sku # and email our service team on info@auselectronicsdirect.com.au for price and availability.
Note:
Please note that this is a hobby grade high-performance remote-control vehicle.
Damages incurred by crashes, impacts and misuse are not covered by warranty.
All warranty claims are assessed on a case by case basis as per our warranty terms and conditions.
By purchasing this RC vehicle, you have agreed 1-month warranty on Rechargeable Batteries and a 3-month limited warranty terms highlighted below:
This Remote-Control Car is covered by a 3-Month Limited Warranty.
Limited includes;
- 1 month warranty on Rechargeable Batteries
- 1 month for failure or mechanical and non-electronic parts (please see Wear and Tear section below)
- 3 month for major electronic components (esc, remote controller and receiver)
Warranty excludes:
- Damages incurred to the product caused by misuse or abuse of the product, i.e. high speed impacts and crashing the product
- Tampering, or modifying of product in any kind
- Use of any unapproved 3rd party accessory with product
- Poor battery maintenance - please see Battery maintenance section below.
“Wear and Tear” parts are excluded from any Warranty when product has been used; whether in, or outside any and all parameters outlined in the products’ supplied user manual.
List of “Wear and Tear” parts:
- All Gears, their respective cogs, and Motors
- Wheels, tyres, wheel assembly and drive shafts
- Chassis, and all plastic parts
PLEASE NOTE: Not all R/C toy’s come with Power Switch. To power off your product, should it not include a power switch, is to disconnect the battery from the product
Proper Battery Maintenance include:
- Charge the battery before first time use, before or after any use, storage or use after storage
- Allow for battery to be cool to touch prior to charging
- Disconnect the battery from product when not in use. Leaving the battery connected to the product over time (when not in use) WILL damage the battery
Care
This Remote-Control Car is a “Hobby Grade” product, which contains internal and external parts that are replaceable by the end user.
Over a period of use, parts will “Wear & Tear”, which is common, and will require replacement.
(The “period” can vary depending on the environment the product is used)
The supplied user manual includes’ a Parts List for all internal and external Wear & Tear items, items surrounding the wheel assembly, as well as gears, that are available for purchase on our website.
Please contact us should you require a part not listed on our website.
