MDR-60-12 60W 12VDC 5A DIN Rail Switchmode Power Supply

DIN Rail Switchmode Power Supplies

SKU: PB2404


$94.95
RRP $189.95
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $90.20 ea
Buy 11 to 20: Pay $85.69 ea
Buy 21 to 99: Pay $81.41 ea




Calculate Shipping

MDR-60-12 60W 12VDC 5A DIN Rail Switchmode Power Supply

DIN Rail Switchmode Power Supplies

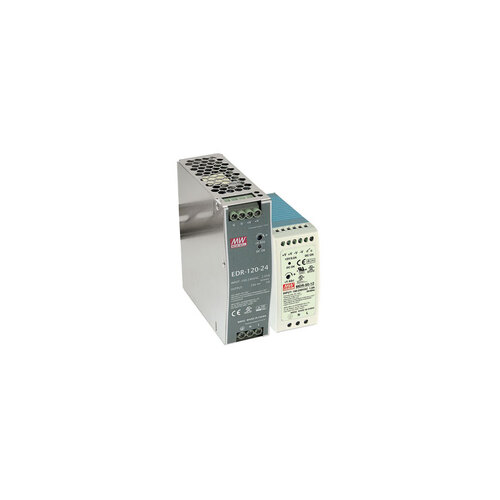

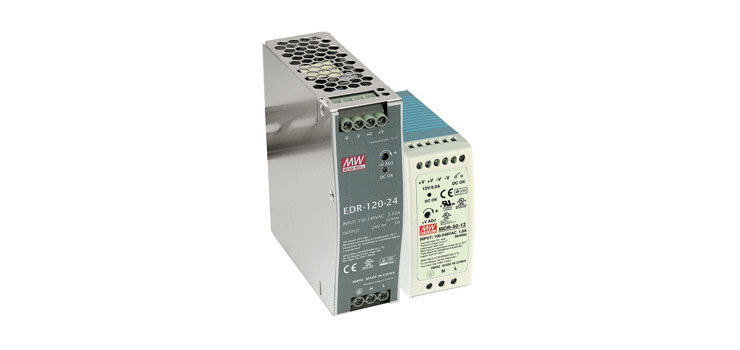

The Mean Well MDR-60-12 provides 12VDC 5A output with a rated power output of 60W. The compact enclosure is easy to wire with recessed terminals. Each Mean Well power supply includes protection from short circuit, over load and over voltage conditions to protect the supply and connected equipment from damage. Suitable for mounting to DIN rail TS-35/7.5 or 15 types.

Switch mode power supplies offer several significant advantages over traditional linear transformer power supplies.They are far more efficient than their linear counterparts. As they do not use power or mains transformers the equivalent power supply weighs considerably less than traditional types. Physical size is also reduced


FEATURES:

  • 60W rated power
  • 12V DC 5A output
  • Universal AC input/Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • Class I Div 2 Hazardous Locations T4
  • LED indicator for power on
  • DC OK relay contact
  • No load power consumption<0.75W
  • 100% full load burn-in test

SPECIFICATIONS (INPUT):

  • Input range: 85~264VAC, 120~370VDC
  • Frequency: 47-63Hz
  • AC Current: 1.8A/115VAC, 1A/230VAC
  • Efficiency: Approx. 86%
  • Inrush Current: Cold Start 30A/115VAC, 60A/230VAC
  • Leakage Current: <1mA/240VAC

SPECIFICATIONS (OUTPUT):

  • DC Voltage: 12V
  • Rated Current: 5A
  • Current Range: 0~5A
  • Rated Power: 60W
  • Ripple/Noise: =< 120mv
  • Voltage ADJ Range: 12~15V
  • Voltage Tolerance: ±1.0%
  • Line Regulation: ±1.0%
  • Load Regulation: ±1.0%
  • Setup/rise time: 500ms, 30ms/230VAC , 500ms, 30ms/115VAC at full load
  • Hold up time: 50ms/230VAC , 20ms/115VAC at full load
  • Dimensions: 40W x 100D x 90H
SKU PB2404
Barcode # 9321758183939
Brand Mean Well
Shipping Weight 1.0000kg
Shipping Width 0.100m
Shipping Height 0.030m
Shipping Length 0.050m
Shipping Cubic 0.000150000m3
Unit Of Measure ea
