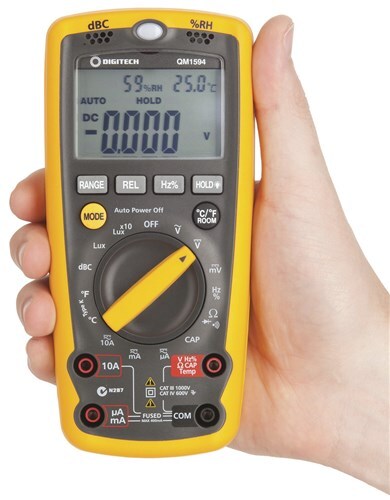

Multifunction Environment Meter with DMM
SPL, Lux, Humidity & Temp Digital Multimeter
SKU: TT4574
Multifunction Environment Meter with DMM
SPL, Lux, Humidity & Temp Digital Multimeter
A multi-function environment meter that combines the functions of a sound level meter, light meter, humidity meter and temperature meter. Typical sound applications include checking acoustics of recording studios, auditoriums and professional hi-fi installations. The light and humidity meters are ideal for video photographers, greenhouse and hydroponic setups, etc. Others who should find this meter essential include interior designers, factory and office managers, record and archive keepers, schools, hospitals, laboratories and, of course, universities.
Features:
• Sound level meter
• Light level meter
• Indoor temperature and humidity measurement
• Non contact voltage
• Display: 4000 count
• Safety Category: Cat IV 600V
• Basic DCV accuracy: 1%
• Temperature: -20°C to 750°C (±1.2%)
• Ave/RMS: Ave
• Input impedance: 10M
• Special features: Lux, SPL, Humidity
Specifications
| Length : 170mm |
| Width : 75mm |
| Depth : 48mm |
| DC Voltage Ranges : 400mV, 4V, 40V, 100V |
| Meter Input Impedence : 10Ω |
| AC Voltage Ranges : 400mV, 4V, 40V |
| DC Current Ranges : 400µA, 4mA, 40mA, 400mA |
| AC Current Ranges : 400µA, 4mA, 40mA, 400mA |
| Resistance Ranges : 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ |
| Capacitance Ranges : 50nF, 500nF, 5µF |
| Frequency Ranges : 5Hz, 50Hz, 500Hz, 5kHz |
| Frequency Accuracy : 1.5% |
| Outdoor / Exterior Scale : -20°C |
| Celcius Accuracy : 1.2% |
| Measures in Celcius : true |
| DC Voltage Ranges : 250V |
| AC Voltage Ranges : 100V, 250V |
| DC Current Ranges : 10A |
| AC Current Ranges : 10A |
| Resistance Ranges : 40MΩ |
| Capacitance Ranges : 50µF, 100µF |
| Frequency Ranges : 500kHz, 10MHz |
| Outdoor / Exterior Scale : 750°C |
| Count Maximum Reading : 4000 count |
| Autorange : true |
| Data Hold : true |
| Relative Measure : true |
| Continuity indicator : Needle |
| Input Protection Fuse : 500mA, 10mA |
| Measures diode : true |
| Casing : Plastic |
| Absolute Humidity : true |
| Size / Shape : 9V |
| Battery quantity : 1pc |
| Batteries included : true |
| Batteries can be replaced by user : true |
| Compartment location : Internal / In-built |
| How is battery compartment kept closed : Clip and Screw |
| DC Voltage Accuracy : 0.5% |
| AC Voltage Accuracy : 1.2% |
| DC Current Accuracy : 1% |
| AC Current Accuracy : 1% |
| Resistance Accuracy : 0.8% |
| Capacitance Accuracy : 3.5% |
| Safety Rating Max Volt : 600V |
| Safety Rating Cat : Cat IV |
| Probe rating voltage : 600V |
| Probe safety rating : Cat IV |
