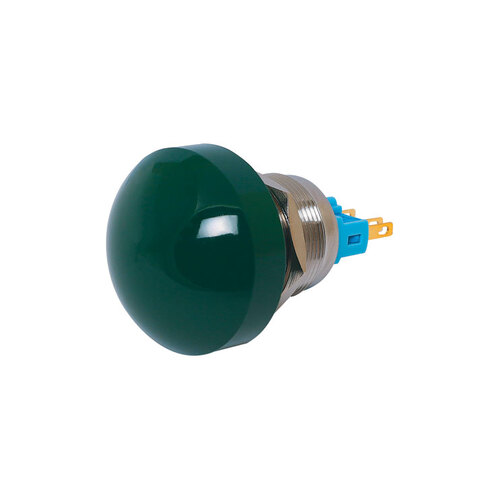

NC/NO Green Industrial IP67 Momentary Pushbutton Start Switch

Push Button Switches for your Electronic Projects!

This industrial grade 22mm pushbutton switch is ideal for medical, access control, emergency and mining applications. IP67 rated to prevent dirt, dust and water penetration. High quality metal actuator.

FEATURES:

• NC/NO contact type, configurable as SPDT
• IP65/IP67 Waterproof Rated
• ROHS Compliant
• Vandal Resistant
• Heavy Duty
• Non Magnetic
• Corrosion Resistant

SPECIFICATIONS:

• Contact Type: NC/NO
• Operating Temperature: -40° ~ 70°C
• Mechanical Life: > 1000000 cycles
• Operating Humidity: 10% ~ 99%
• Input Voltage: 3-250V DC/AC
• Input Current: ≤5A
• Contact Resistance: < 50MΩ
• Pulse Time: < 50Mn
• Operating Pressure: 3-6N
• Contact Material: Silver Plated Gold
• Material: Stainless Steel 304/316
• Terminal: Quick Terminal
• Operation Type: Momentary
