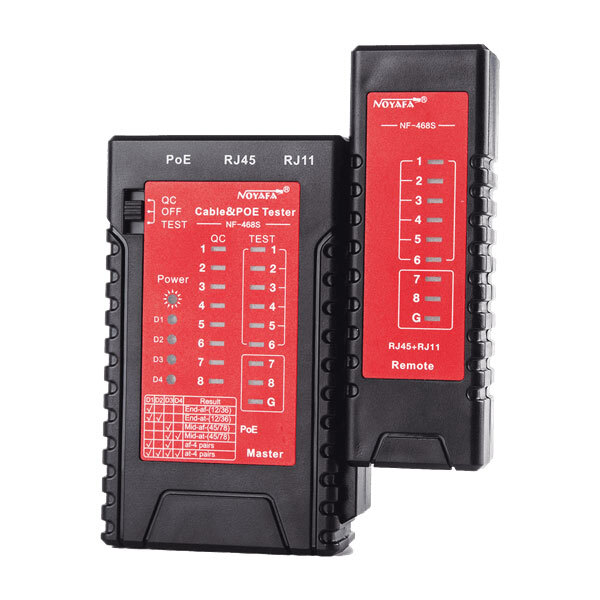

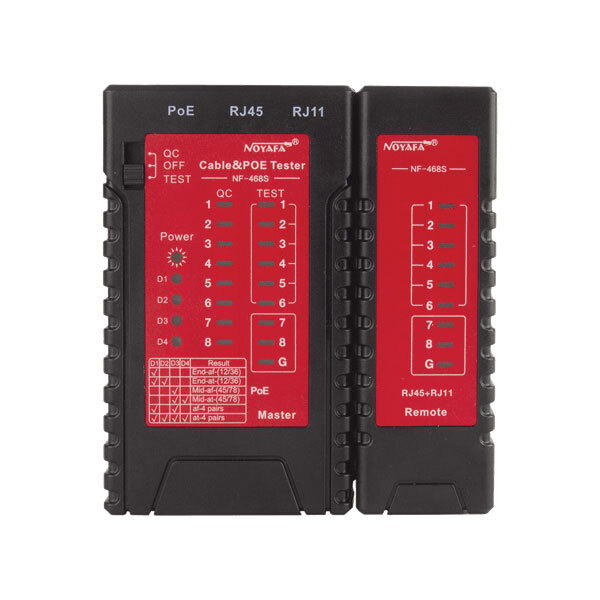

Network Cable Cable Tester with PoE Support

Test RJ11 and RJ45 Cables

This handy cable tester with PoE function allows you to test live ethernet cabling and determine power and data connectivity. The tester is 802.3af/at Power Over Ethernet (PoE) compatible and connects to an RJ45 terminated cable (or socket when used with a suitable patch lead). It’s also capable of determining midspan or end span power sources in the network design. Perfect for installers working with IP telephony, CCTV equipment and other PoE capable devices. The remote unit included connects to terminated patch leads, RJ11/45 telephone cabling, LAN wiring or sockets and tests continuity, open/short and cross wiring.

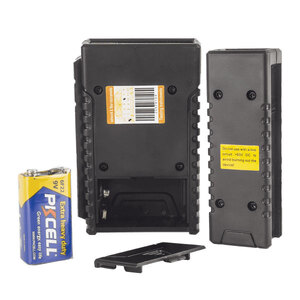

Note: Requires 1 x 9V batteries (sold separately - S4970B)


Features

• Quick and easy to test results: open, cross, pass, short.
• Quickly check the status of RJ45 / RJ11 connections in cabling.
• Identify PoE type and status.
• Compliant with IEEE 802.3af / 802.3at POE standard
• Low power battery indicator
• Maximum test distance: 2000m
• Cable Type: RJ45 Network cable Cat5/5e/6/6a (UTP/STP), RJ11/12 telephone wire Cat3 (6P2C/6P4C/6P6C)
• Testing Indicator: 8 indicator lights for quick test
• Power Supply: 9V DC
• Weight: 200g
• Dimensions: 104 x 96 x 27mm

  *Specifications are subject to change without notice.
