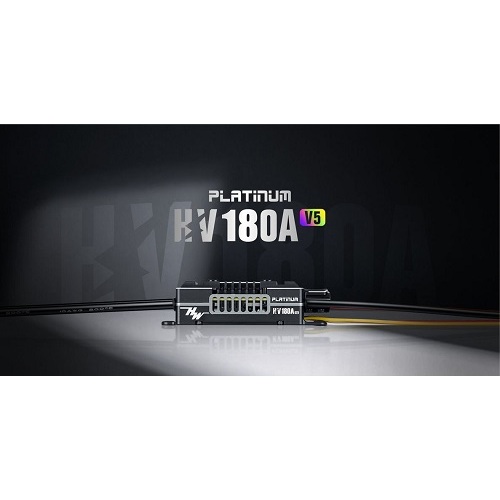

Platinum HV 180A SBEC V5
Brushless Electronic Speed Controller
SKU: TR9682
$765.00
RRP $1,530.00
In Stock
Platinum HV 180A SBEC V5
Brushless Electronic Speed Controller
| Product Name | |
| Product Number | |
| Type | Brushed/Brushless High Voltage/Regular |
| Specifications | Cont./Peak Current Input Voltage BEC Output |
| Wires & Connectors | Input Wires Output Wires Input Connectors Output Connecotors |
| ESC Programing via | Transmitter LED Program Card LED Program Box LCD Program Box OTA Programmer Program Port |
| Firmware | Firmware Upgrade |
| Telemetry Function | |
| Size & Weight | Size Weight |
| Application scope |
| Product Name | Platinum HV 180A SBEC V5 | |
| Product Number | 30209103 | |
| Type | Brushed/Brushless High Voltage/Regular |
BL High Voltage |
| Specifications | Cont./Peak Current Input Voltage BEC Output |
180A/260A 6-14S LiPo Switch Mode：5-12V & Cont. 10A，Peak 30A |
| Wires & Connectors | Input Wires Output Wires Input Connectors Output Connecotors |
Red-10AWG-255mm*1/Black-10AWG-255mm*1 Black-10AWG-150mm*3 No No |
| ESC Programing via | Transmitter LED Program Card LED Program Box LCD Program Box OTA Programmer Program Port |
Not Support Not Support Not Support Supported Supported Separate Program Port |
| Firmware | Firmware Upgrade | Supported |
| Telemetry Function | |
Mikado VBarï¼›Futaba S.Bus2ï¼›etc. |
| Size & Weight | Size Weight |
100.6*45.5*26.1mm (without fan) 250.6g (without fan) |
| Application scope | 550-700 class electric helicopter (main rotor length 550-700mm),or fixed-wing |
3 Month Warranty
| SKU | TR9682 |
| Barcode # | 9351634086764 |
| Brand | Aus Electronics Direct |
| Shipping Weight | 0.2510kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.030m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.001200000m3 |
| Unit Of Measure | ea |
