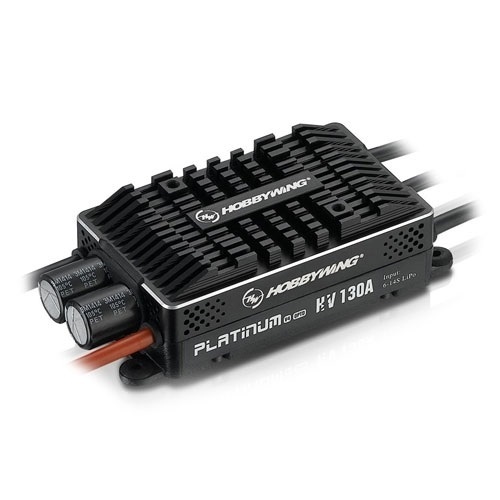

Platinum HV130A Opt V4 6-14S Heli/Air Brushless Motor and Electronic Speed Controller Set

Brushless Motor & ESC Upgrade for RCs

Platinum V4 serial products allows the motor to start extremely smooth and avoids tail-drift issues that helicopters experience. The start-up time is adjustable from 8 to 25 seconds, this will definitely create a perfect starting point for every flight.

High-performance 32-bit processor with a running frequency of 72MHz combined with advanced algorithm optimizes the speed governing. Together with the adjustable governor parameters guarantee every pilot a precise control experience.

This Platinum V4 ESC has “Brake Disabled, Normal Brake, Proportional Brake and Reverse Brake” four brake modes. The brake amount is adjustable in normal brake mode; in proportional brake mode, the brake force will be automatically allotted based on the position of radio throttle stick; in reverse brake mode, the motor rotation can be changed via a spare transmitter channel.

Multiple protection features include ESC thermal, capacitor thermal (HOBBYWING-patented technology), ESC overload, throttle signal loss(or Fail Safe), and low voltage cutoff effectively prolongs the service life of the ESC. The Built-in Arc proof circuit effectively eliminates Arc/Spark produced at the “powering-on” moment and prolongs the connectors‘ lifespan.

HobbyWing Platinum HV 130A OPTO V4 Features:

• Super Soft Start-up
• Excellent Motor Speed Governing
• DEO Technology
• Built-in Sparkproof Circuit
• Four Brake Modes
• Multiple Protections
• Upgradeable ESC firmware

Spec Check:

• Brushed/Brushless: Brushless
• Cont./Peak Current: 130A/160A
• Input Voltage: 6-14S LiPo
• BEC Output: No
• Input Wires: Red-12AWG-150mm*1/Black-12AWG-150mm*1
• Output Wires: Black-12AWG-100mm*3
• Input Connectors: No
• Output Connecotors: No
• LCD Program Box: Supported
• WiFi Module: Supported
• Size: 101.0x45.5x27.0mm
• Weight: 154g
