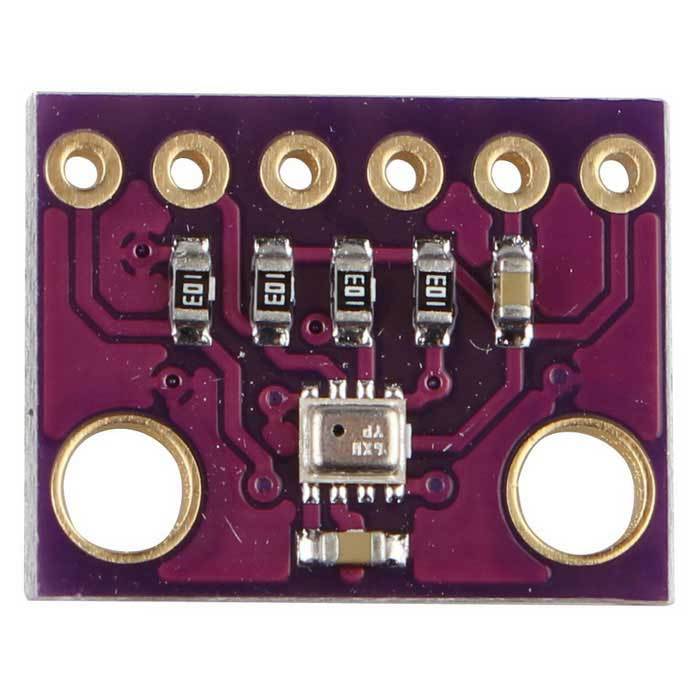

Pressure Sensor Module BMP280 for Arduino Projects

High Precision Atmospheric Sensor

BMP280 sensor is an environmental sensor with temperature, barometric pressure that is the next generation upgrade to the BMP085/BMP180/BMP183. This sensor is great for all sorts of weather sensing and can even be used in both I2C and SPI! This precision sensor from Bosch is the best low-cost, precision sensing solution for measuring barometric pressure with ±1 hPa absolute accuracy, and temperature with ±1.0°C accuracy. Because pressure changes with altitude, and the pressure measurements are so good, you can also use it as an altimeter with ±1 meter accuracy. ​

Typical application:

Enhancement of GPS navigatione.g.time-to-first-fix improvement，dead-reckoning，slope detection Indoor navigation（floor detection，elevator detection）Outdoor navigation，leisure and sports applications, weather forecast, health care application（e.g. sirometry); Vertical velocity indication（e.g. risk/sink speed); Target devices, handsets such as mobile phones,table PCs, GPS devices, navigation systems, portable health caredevices, home weather stations, flying toys, watches

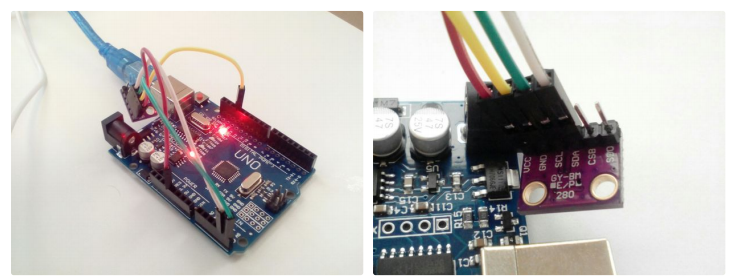

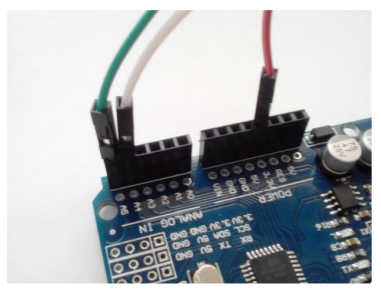

Connect the following BMP280 pins to the Arduino respectively, VCC to 3.3V, GND to GND, SCL to A5, and SDA to A4.

Dowload:

DRIVER

CODE
