Professional Cable Tracer & PoE LAN Cable Tester

Best Cable Tracer & PoE LAN Cable Tester

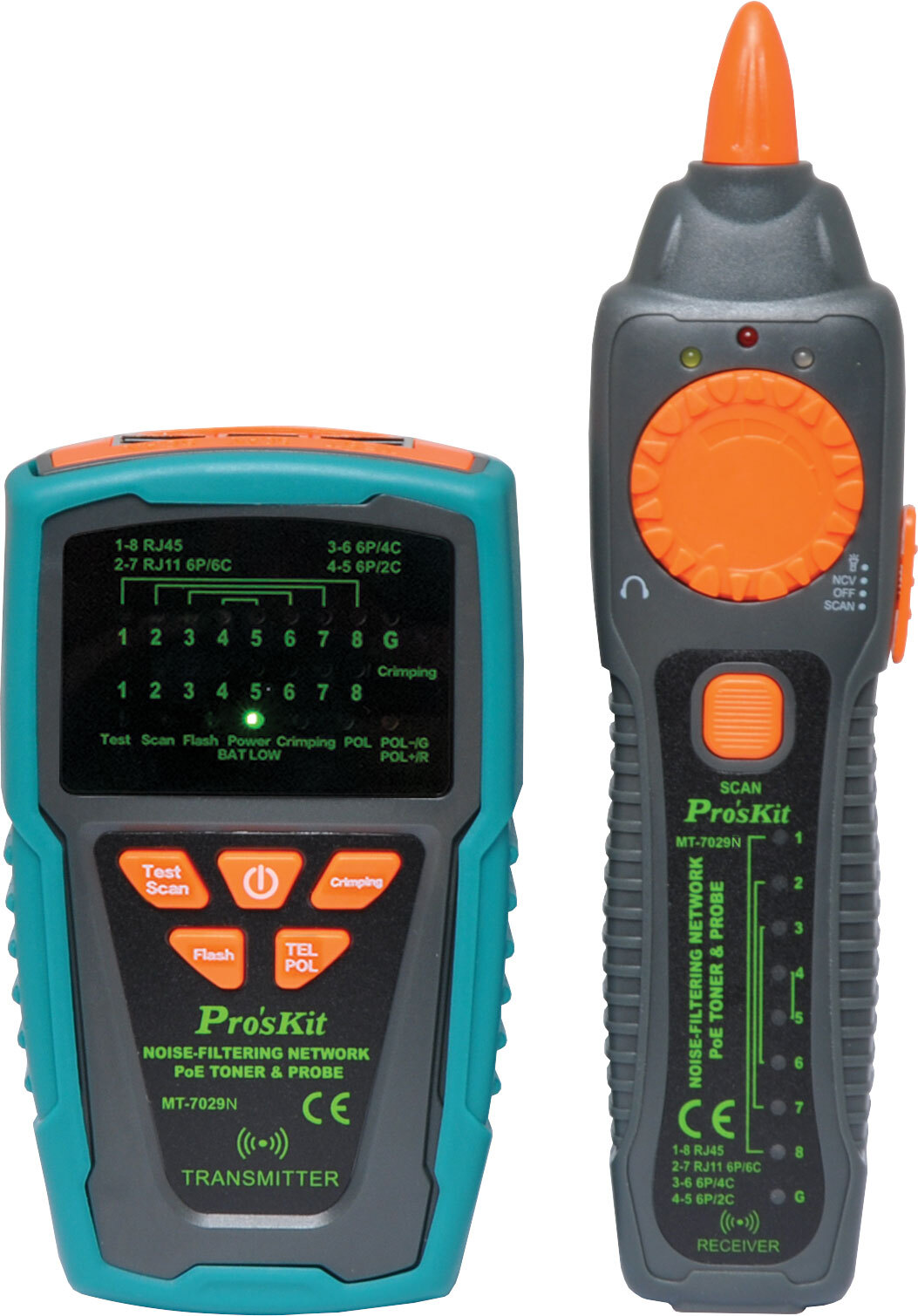

This Noise-Filtering Network PoE Toner & Probe allows users to quickly locate and verify the cable status and troubleshoot wiring for continuity, shorts, opens and crossover on RJ45, Lan cable Cat5, 5e, 6 (UTP/STP), RJ11/12 telephone cable Cat. 3 (2/4/6 pin) & normal solid/stranded wire by alligator clips patch cord. Telephone line polarity and status (severed lines, the off-hook condition, or incoming call ringing) can be indicated and detected easily as well. Ideal for all installation and maintenance fields of telecommunication, networking, datacom, Audio/Video, cable TV, and all weather cabling, etc.



Features

• Single way to test plug crimping quality
• Wire tracing & cable mapping at the same time
• Easily locate the port with a flashing signal
• PoE switches & STP wire tracing up to 3KM
• Telephone line status/polarity indication
• Cable mapping & status indication up to 300M for continuity, shorts, opens and crossover
• Fast/slow scan function
• Display cable status and troubleshoot wiring
• Non- contact voltage detecting

• Transmitter
• Signal frequency: 455KHz
• Max. signal voltage: 8Vp-p
• Tracing Distance: 600m
• Cable map indication: 8 LEDs, Fast/Slow dual speed
• Max. distance of cable map: 300m
• Crimping test socket for RJ45/RJ11/RJ12 crystal plug
• Crimping test: 8 LED indicators
• Port Flash: 1 LED indicatior
• Telephone line polarity, status indication: 1 Dual color LED
• Low battery indication: About 7.0V
• Voltage protection: DC 60V
• Battery type DC 9.0V (NEDA 1604/ 6F22 DC9V ×1pce)
• Dimension: 138L×80W×35D mm
• Compatible connectors: For RJ45(8 pin)/RJ11(6 pin) cable map test. RJ45 SCAN socket : for RJ45 locating individual wire pairs RJ11 SCAN socket: for RJ11 locating individual wire pairs
• Cable types: RJ45 Lan cable Cat 5, 5e, 6(UTP/ STP), RJ11/12 telephone cable Cat 3 (6P/2C/4C/6C)
•

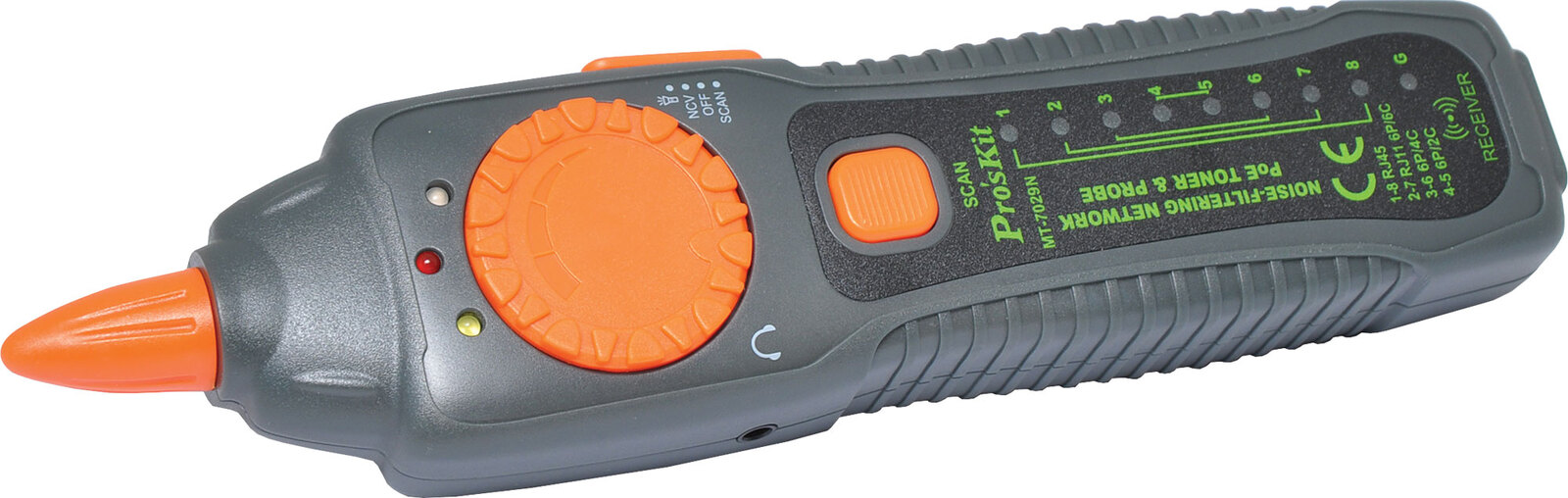

• Receiver
• Frequency: 455KHz
• Tracing Indication: 1 LED indicator & speaker, anti-noise and sensitivity adjustable
• Compatible connectors: RJ45 socket
• Cable map indication: 8 LEDs
• NCV indication; 1 LED (AC90~1000V，≥50mm，≤100mm)
• Earphone jack: 1
• LED illumination: 1 LED
• Low battery indication: about 7.0V
• Battery type: DC 9.0V (NEDA 1604/ 6F22 DC9V ×1pcs)
• Dimension: 203L×50W×32D mm
•
• General

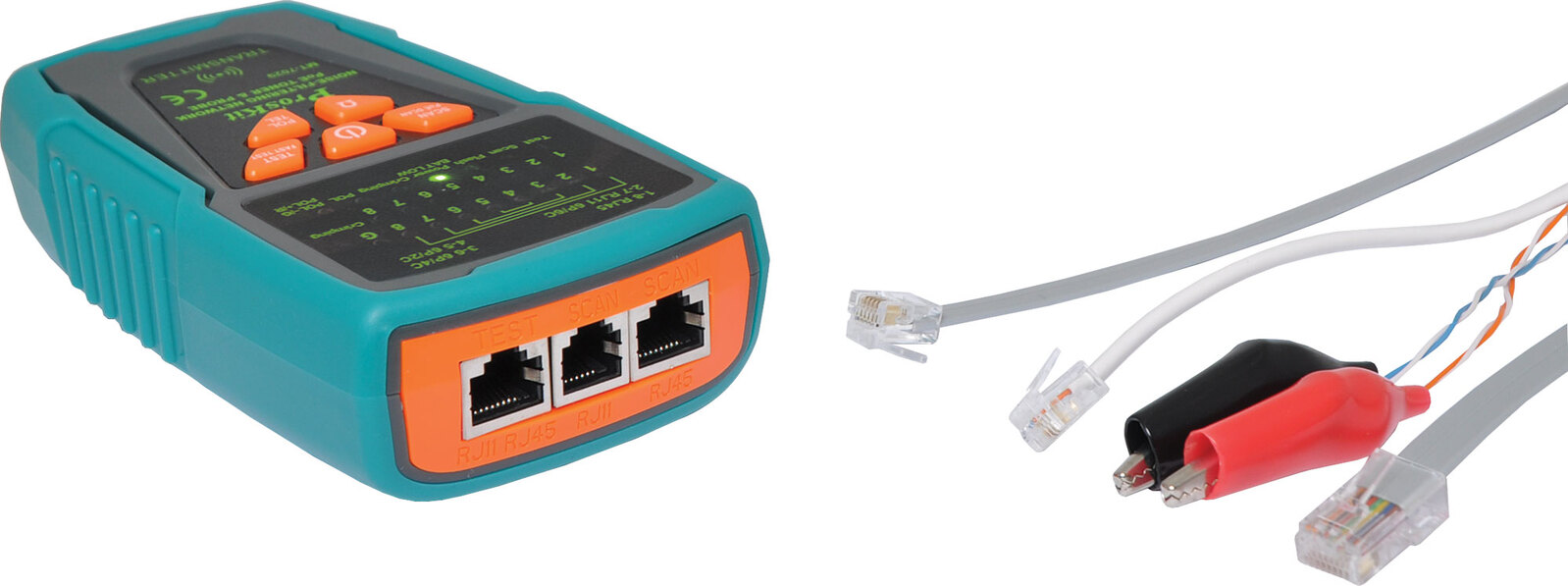

• Accessories: RJ45 cable patch cords, RJ11 cable patch cords, RJ11 to alligator clips patch cord, earphone, storage bag, user manual

  *Specifications are subject to change without notice.
