Professional Grade True RMS Digital Multimeter

Pro Grade Handheld True RMS DMM

The Amprobe 34XR-A Digital Multimeter, a True RMS digital multimeter with temperature and backlight for tradies and field service technicians.

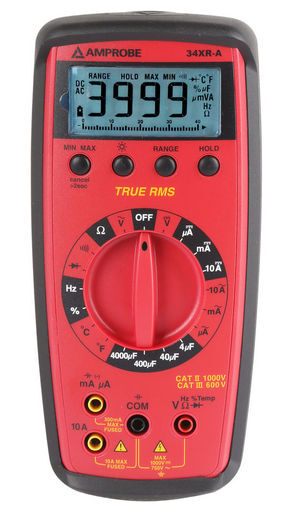

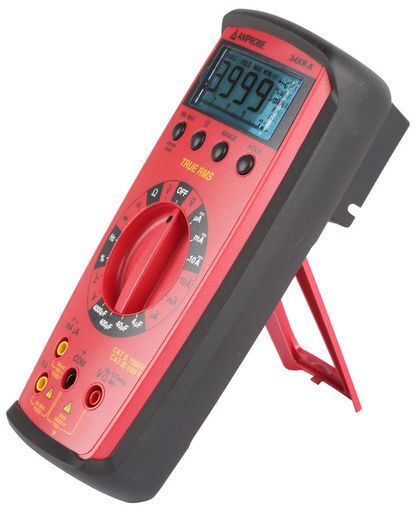

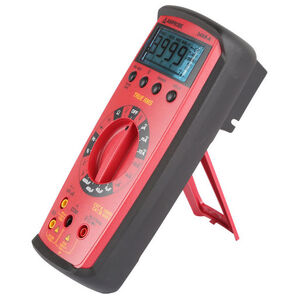

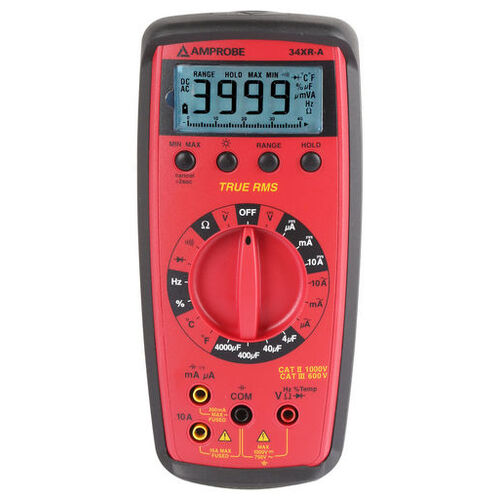

The Amprobe 34XR-A is a True RMS digital multimeter with temperature measurement. With a Magne-Grip holster and magnetic hanging strap to keep the meter convenient, the 34XR-A is designed for tradies and technicians. The meter includes a Cat II 1000V, Cat III 600V safety rating.
The 34XR-A includes all the features and functions needed for a wide range of applications. The meter measures DC voltage to 1000 V, AC voltage to 750 V, AC/DC current to 10 A, resistance to 40 MΩ, capacitance to 4000 μF, frequency to 40MHz and temperature from -20 °F to 1000 °C. Additionally, the meter has a continuity beeper, diode test, overload protection, and measures duty cycle. All measurements have wide testing ranges and high accuracy. Testing results are displayed on the 3-3/4 digit LCD with 41-segment analogue bar graph.
Other features of Amprobe 34XR-A digital multimeters include an input warning tone when test leads are put in the wrong jacks; Min/Max, Data Hold and Range Lock; Auto power-off and a separate door for battery and fuse access. Requires 9V battery to operate.


• Autoranging 3999 counts
• 3-3/4 digit LCD, with backlight
• 41-segment analog bar graph
• Display update rate: 2 per sec.
• True-RMS digital multimeter
• Temperature probe included
• Auto power off to save battery life
• Min/max, data hold and range lock
• Easy battery and fuse access
• Magne-Grip™ Holster with magnetic hanging strap






•
•
• DC Voltage ranges 400 mV, 4 V, 40 V, 400 V, 1000 V
  DC Voltage accuracy All ranges: ± (0.5 % rdg + 1 dgt)
  DC Voltage resolution 100 µV
  AC Voltage (45 Hz to 2 kHz) True-rms ranges 400 mV, 4 V, 40 V, 400 V, 750 V
  AC Voltage (45 Hz to 2 kHz) True-rms accuracy 400 mV range, 45 to 100 Hz: ± (1.2 % rdg + 8 dgts)
  750 V range: 45 to 1 kHz: ± (2.0 % rdg + 8 dgts)
  All other ranges, 45 to 500 Hz: ± (1.2 % rdg + 8 dgts)
  All other ranges, 500 to 2 kHz: ± (2.0 % rdg + 8 dgts)
  AC Voltage (45 Hz to 2 kHz) True-rms resolution 100 µV
  DC Current ranges 400 µA, 4 mA, 40 mA, 300 mA, 10 A
  DC Current accuracy 400 µA to 300 mA ranges: ± (1.0 % rdg + 1 dgt)
  10 A range: ± (2.0 % rdg + 3 dgts)
  DC Current resolution 0.1 µA
  AC Current (45 Hz to 1 kHz) True-rms ranges 400 µA, 4 mA, 40 mA, 300 mA, 10 A
  AC Current (45 Hz to 1 kHz) True-rms accuracy 400 µA to 300 mA ranges: ± (1.5 % rdg + 8 dgts)
  10 A range: ± (2.5 % rdg + 10 dgts)
  AC Current (45 Hz to 1 kHz) True-rms resolution 0.1 µA
  Resistance ranges 400 mO 4 kmO 40 kmO 400 kmO 4 MmO 40 MmO
  Resistance accuracy 400, 4 k, 40 k, 400 k, 4 MmO ranges: ± (1.0 % rdg + 4 dgts)
  40 MmO range: ± (2.0 % rdg + 5 dgts)
  Resistance resolution 100 mmO
  Continuity audible indication < 35 mO




  Included Accessories: Test leads with threaded alligator clips, 9V battery (installed), Magne-Grip™ Holster with magnetic hanging strap, temperature adaptor, Type K thermocouple probe, spare fuse, user manual
