Radical 1005 1:10 Brushless Motor RC Muscle Car
Super Fast & Tough Brushless Remote Control Muscle Car
SKU: TR8200
Radical 1005 1:10 Brushless Motor RC Muscle Car
Super Fast & Tough Brushless Remote Control Muscle Car
Complete Ready to Run with 7.4V Lipo Battery, Battery Charger and Radio Controller
Speed - over 50kmph with supplied 2S Battery. Can reach over 80kmph with a 3S Battery upgrade.
Features:
● 2.4G spread spectrum technology, FHSS 67-channel pseudo-random frequency hopping super anti-interference, full digital system ensures without loss of control and anti-jamming.
● Independent setting of servo direction and travel for channels 1 to 2.
● Receiver intefrated gyroscope, ensure that the model goes straight, prevents drifting, and overturning.
● The unique throttle speed limit adjustment function allows beginners to practice quickly at a safe speed.
● After accidentally entering the setting mode, it will automatically exit in 5 seconds, and the memory will not lost, and the subsequent control can still be normal.
● Transmitter voltage range: 4.8-12V, with automatic voltage identification alarm in 3 segments low voltage alarm 4.4V/7.4V/10.8V.
● Receiver voltage range: 4.8V-10V, operating current 30mA, support working with high voltage servo.
● With brakes and fail-safe protection function.
● There will be flashing music when switching on and off, automatic power off and alarm after 12 minutes, switching off after 15 minutes with no current.
● Ergonomically design with 30-degree beveled steering wheel and optional installation of one-handed accessories.

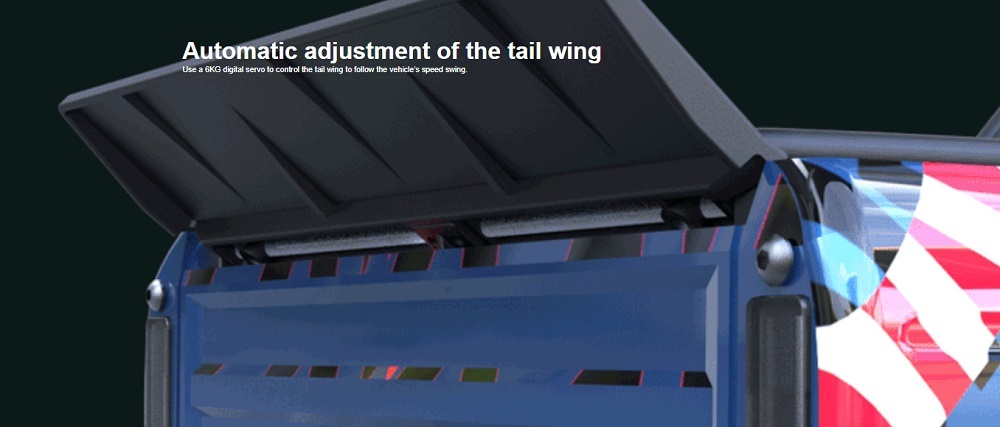

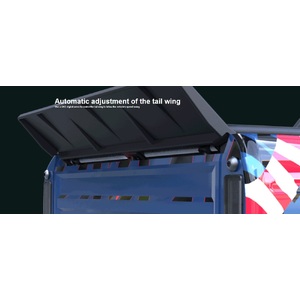

Tail-wing Servos
Case Size: 00×00×00mm
Weight: 9G digital servo
Steering Servo
Case Size: 00×00×00mm
Weight: 6KG digital servo
High Bright LED Lights
·Controllable headlights, Roof lights
·Linkage taillights
·Linkage turn signal

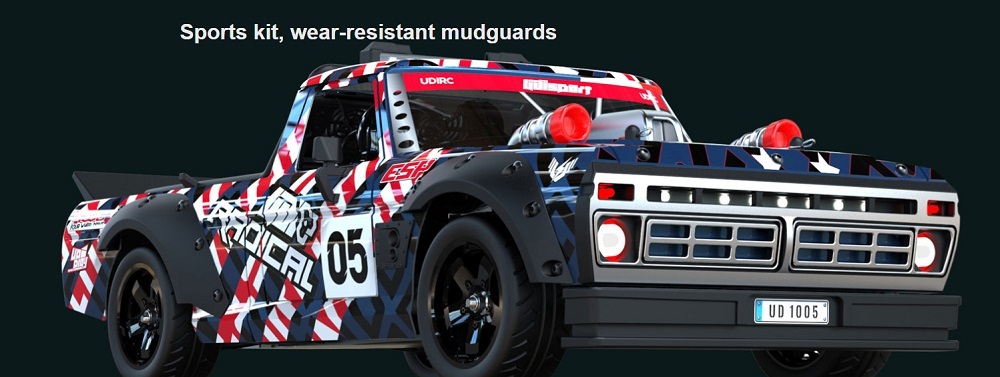

Decoration
·PVC material bodyshell
·Front and rear bumpers
·The wheels are equipped with brake disc type hexagonal adapters
·Simulated brake calipers
·Simulated suction device, fan
Wheels and Tires
·63mm highway tires
Equipped with high-speed sealed ball bearings throughout the vehicle
Hardware with rust-resistant native oxid coating
Suspension
·Provide proportional appearance and realistic drifting driving dynamics
·Front and rear independent suspension damping system
·Efficient metal drive shaft
Steering
·6KG digital Steering Servo
·Dual bellcrank design with bearings and integrated servo saver
·Adjustable steering linkage
Drivetrain
·Adjustable center gear shifting
·Steel driveshafts
·Oil-immersed front/rear differential
·Heavy splined front drive shaft
·Fixed length metal rear drive shaft
What’s In The Box:
The vehicle with ESC and motor
2.4GHz radio system
Operation Guide
body stickers
What You’ll Need:
Battery for transmitter: 4 × 1.5V, AA lkaline battery
Vehicle battery: 2-3S, XT60, LIPO rechargeable battery
Specifications:
Model Scale: 1/10
Vehicle type: Road racing car
Assembly time: Installing the battery
Completion level: RTR
Length: 478mm
Width: 209mm
Height: 158mm
Weight: 1.92KG
Front wheel track: 168mm
Rear wheel track: 168mm
wheelbase: 275mm
Ground clearance: 20mm
Transmission distance:
Travel time: 2S/10 minutes, 3S/10 minutes at full speed
Power type: Electric
Motor type: Brushless motor
Ball bearings: All vehicles
Differential: Two oil sealed gears
Drive system: 2/4 wheel drive
Drive Type: Forward/Brake/Reverse
Overall Drive Ratio:
Transmitters: Including
Receiver: Includes
Servo: Included
Speed Control: Included
Suspension: Independent
Car lights: Including
Type: HOBBYWING brushless motor
Weight: About 258.7g
Length: 52mm
Diameter: 36mm
Output shaft: 3.175mm
KV value: 4500
Connector Type: 3.5mm bullet connectors
HOBBYWING 60A Brushless ESC WP-10BL60
Input Voltage(cells): 6V-12.6V（2S-3S）
Continuous current: 60A
BEC Voltage: 6.0V
BEC persistent current: 3A
Waterproof grade: IPX7
Weight: About 96.5g
Recommended for Ages 14+
Suitable for ages under age recommendation with Adult supervision (Noting Care and Warranty Policy)
Note:
Please note that this is a hobby grade high-performance remote-control vehicle.
Damages incurred by crashes, impacts and misuse are not covered by warranty.
All warranty claims are assessed on a case by case basis as per our warranty terms and conditions.
By purchasing this RC vehicle, you have agreed 1-month warranty on Rechargeable Batteries and a 3-month limited warranty terms highlighted below:
This Remote-Control Car is covered by a 3-Month Limited Warranty.
Limited includes;
- 1 month warranty on Rechargeable Batteries
- 1 month for failure or mechanical and non-electronic parts (please see Wear and Tear section below)
- 3 month for major electronic components (esc, remote controller and receiver)
Warranty excludes:
- Damages incurred to the product caused by misuse or abuse of the product, i.e. high speed impacts and crashing the product
- Tampering, or modifying of product in any kind
- Use of any unapproved 3rd party accessory with product
- Poor battery maintenance - please see Battery maintenance section below.
“Wear and Tear” parts are excluded from any Warranty when product has been used; whether in, or outside any and all parameters outlined in the products’ supplied user manual.
List of “Wear and Tear” parts:
- All Gears, their respective cogs, and Motors
- Wheels, tyres, wheel assembly and drive shafts
- Chassis, and all plastic parts
PLEASE NOTE: Not all R/C toy’s come with Power Switch. To power off your product, should it not include a power switch, is to disconnect the battery from the product
Proper use of the remote controller:
- The remote controller is a precision digital proportion control.
- It is recommended to use precise gentle steering control.
- The steering wheel control knob is to be operated gently. It is recommended to use 3 fingers to steer the RC Vehicle gently left to right.
- Do not aggressively steer the control knob as this could damage the steering knob.
- Damages caused by mis-use and mis-handling of the remote controller is not covered by warranty.
Proper Battery Maintenance include:
- Charge the battery before first time use, before or after any use, storage or use after storage
- Allow for battery to be cool to touch prior to charging
- Disconnect the battery from product when not in use. Leaving the battery connected to the product over time (when not in use) WILL damage the battery
Care
This Remote-Control Car is a “Hobby Grade” product, which contains internal and external parts that are replaceable by the end user.
Over a period of use, parts will “Wear & Tear”, which is common, and will require replacement.
(The “period” can vary depending on the environment the product is used)
The supplied user manual includes’ a Parts List for all internal and external Wear & Tear items, items surrounding the wheel assembly, as well as gears, that are available for purchase on our website.
Please contact us should you require a part not listed on our website.
