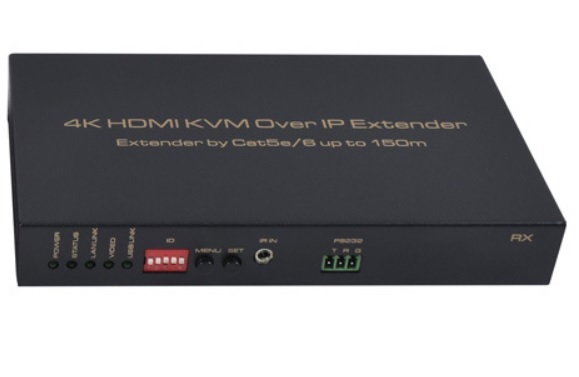

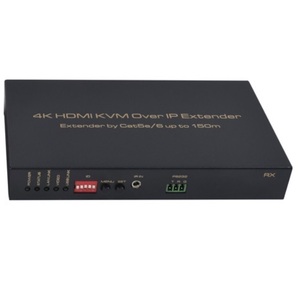

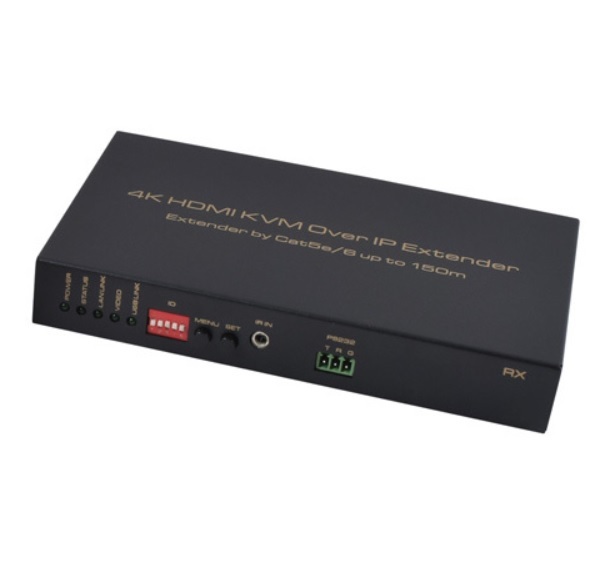

Receiver to suit HDMI and USB KVM OVER IP Extender

Multiple HDMI Receiver Over IP function

This HDMI and USB KVM Over IP Extender provides a convenient solution for remotely controlling a PC or laptop via CAT 5 or CAT 6 cables or IP via a 1G Local Area Network switch. Supports multiple receivers connected to 1G Local Area Network for multiple display applications. Spare receivers are available, please see AA6163 Spare Receivers.

HDMI 2.0 4K HDMI video signals and has IR extender functionality. Has 4 USB ports for keyboard, mouse, flash drive and usb peripherals connectivity.

The Receiver has a HDMI loop through for connecting a display on the HDMI Source end.

Specifications:
HDMI resolution: 480P / 720P / 1080P @ 24Hz / 30Hz / 50Hz / 60Hz, up to4K @ 30Hz, Supports1080P @ 120Hz,/3D etc.
HDMI Audio format: Dolby True HD/DTS HD/Dolby Atmos/ Dolby Digital 5.1 / Dolby Digital Plus/ DTS 5.1/LPCM
HDMI Max bandwidth: 297MHz
HDMI Max baud rate: 8.91Gbps
LAN transmission rate: 850 Mbps Max
Transmission delay: <80us
Output cable length: 1080P/AWG 26 ≤12m
Transmission distance: ≤100m (Cat 5e)/≤150m (Cat6) Use network switch extensions to recover further transmission distances
Serial port baud rate: Supports 115200 / 57600 / 38400 / 19200 / 9600 / 4800 / 2400 / 1200bps
IR Carrier frequency: 20-60KHz
Power adapter input: AC 100~240V / DC12V/1.5A
Max working current: TX≤300mA / RX≤200mA
Accessories: Manual x1, Power Adaptor x1, IR Transmitter cable x1, IR Receiver cable x1
