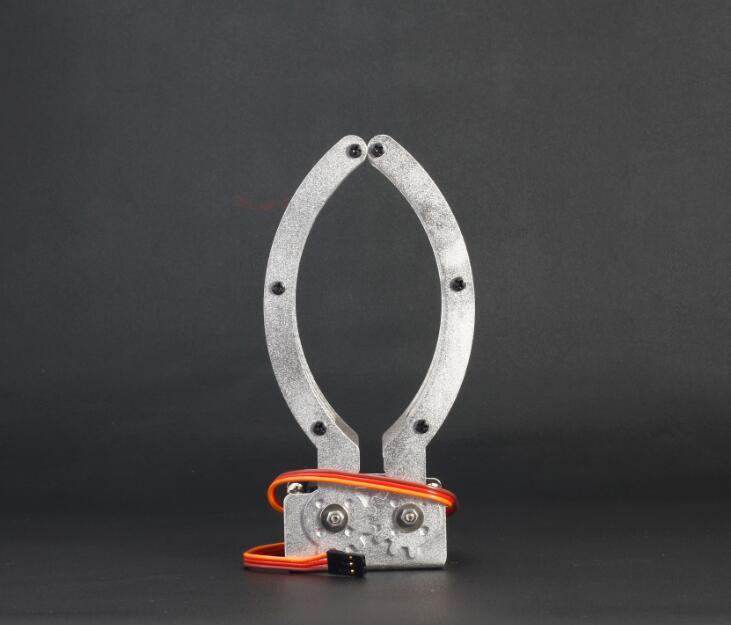

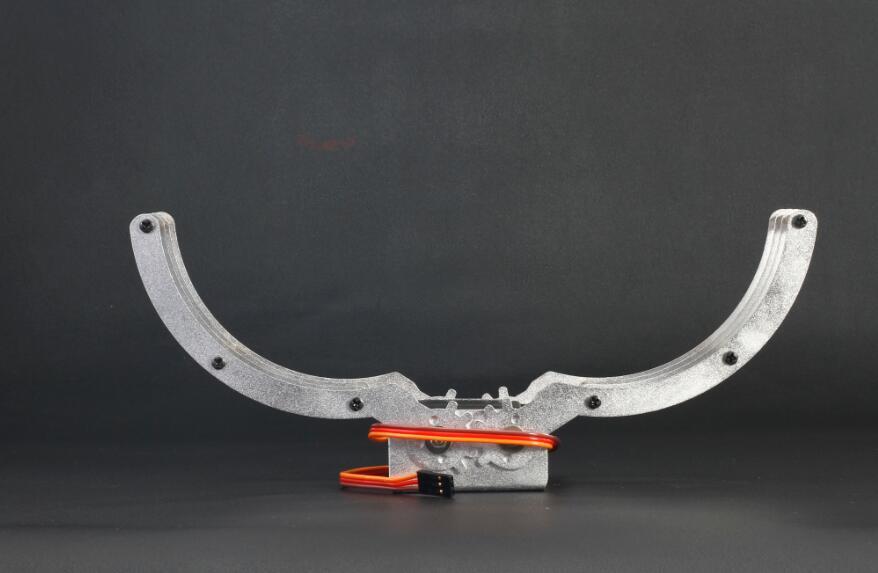

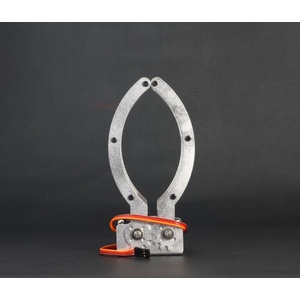

Robot Mechanical Aluminium Clamp/Claw/Grip with Metal Gear Servo for Arduino Projects
Great for robot arm projects
SKU: TA0239
$59.95
RRP $109.00
In Stock
Robot Mechanical Aluminium Clamp/Claw/Grip with Metal Gear Servo for Arduino Projects
Great for robot arm projects
This 2 degree of freedom Robot mechanical aluminium clamp/claw/grip is great for robotic arm projects. The claw comes pre-assembled with a customised Metal Gear High Speed, high torque servo motor with locked rotor, current and torque limiting functions to avoid from burning out.
Specifications:
- Total length: 215mm
- Weight: <300g
- Maximum opening: 230mm
- Total length: 215mm
- Weight: <300g
- Maximum opening: 230mm
Servo Specifications:
Structure material: copper, hollow cup motor, double ball bearing
Cable length: 30 centimeters, signal line (yellow line) to the red line (power) dark red (ground)
Size: 40.7 * 19.7 * 19.7 mm
Weight: 55 g
Response speed: no-load speed of 0.17 seconds / 60 degrees (4.8 V); 0.13 seconds / 60 degrees (6.0 V)
Locked-rotor torque;
The dead zone of work: 4 microseconds
Plug specification: JR FUTABA
Working voltage; Best 6 V, 3.0 V to 3.0 V
Work torque: 19 kg/cm
Use the temperature: - 30 ~ ~ + 60 degrees Celsius
Cable length: 30 centimeters, signal line (yellow line) to the red line (power) dark red (ground)
Size: 40.7 * 19.7 * 19.7 mm
Weight: 55 g
Response speed: no-load speed of 0.17 seconds / 60 degrees (4.8 V); 0.13 seconds / 60 degrees (6.0 V)
Locked-rotor torque;
The dead zone of work: 4 microseconds
Plug specification: JR FUTABA
Working voltage; Best 6 V, 3.0 V to 3.0 V
Work torque: 19 kg/cm
Use the temperature: - 30 ~ ~ + 60 degrees Celsius
Package List:
- 1 x Mechanical Arm
- 1 x Metal Gear Servo
- 1 x Long U bracket
- 1 x Small bracket
- Screw and nut
- 1 x Long U bracket
- 1 x Small bracket
- Screw and nut
12 Month Warranty
| SKU | TA0239 |
| Barcode # | 9351634004126 |
| Brand | iduino |
| Shipping Weight | 0.2100kg |
| Shipping Width | 0.222m |
| Shipping Height | 0.075m |
| Shipping Length | 0.161m |
| Shipping Cubic | 0.002681000m3 |
| Unit Of Measure | ea |
Robot Mechanical Aluminium Clamp/Claw/Grip with Me
