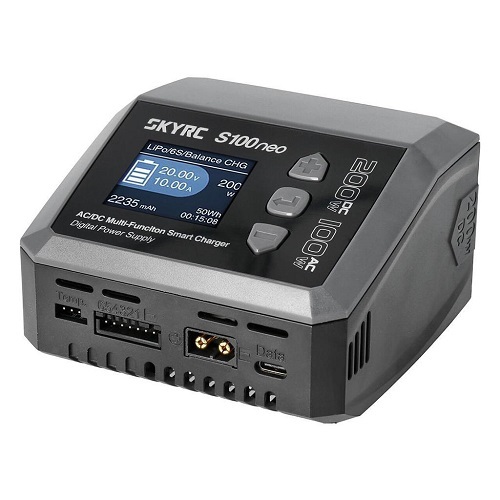

S100neo AC/DC Smart Balance Charger

S100neo Multi-Chemistry Battery Charger with LCD Display

Building on the reknowned legacy of the SkyRC e680, S100neo showcases an impressive AC 100W/DC 200W power capacity, blending versatility with powerful charging capabilities. The Vibrant Colour LCD screen enhances the user experience with intuitive navigation and easy monitoring.

S100neo is more than just a charger; it also doubles as an advanced Digital Power supply, offering precise and efficient charging with unparalleled accuracy in both Constant Current (CC) and Constant Voltage (CV) Modes.

At the cutting edge of RC Charging technology, SkyRC's S100neo combines our time-tested performance with innovative features, perfectly catering to the ever-demanding RC enthusiasts.

Single Output, coupled with Neo
Infused with our latest 'neo' technology for enhanced efficiency and power, S100neo is masterfully engineered to offer a highly focused and remarkably efficient charging experience, yet it remains power-packed.

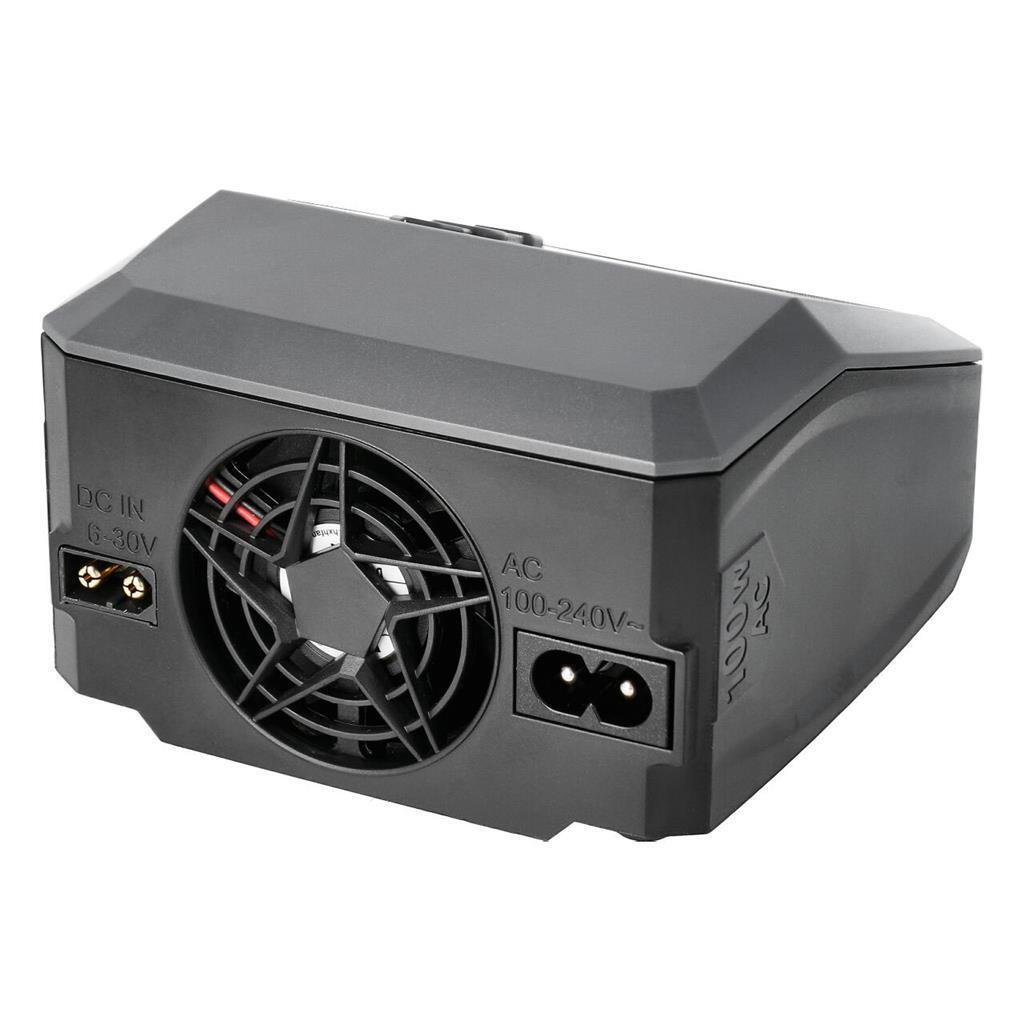

With dual power input, S100neo effortlessly provides up to 100W from an AC source and excels with a potent 200W output on a defacto standard XT60 DC plug for RC hobbyists.
This versatility ensures that the S100neo meets a wide range of charging demands, whether at your pit table or in the field.

Ready for Action - Quicker with 12A
S100neo efforlessly charges at up to 12A, a notable advancement for RC aficionados who value charger current's critical role.

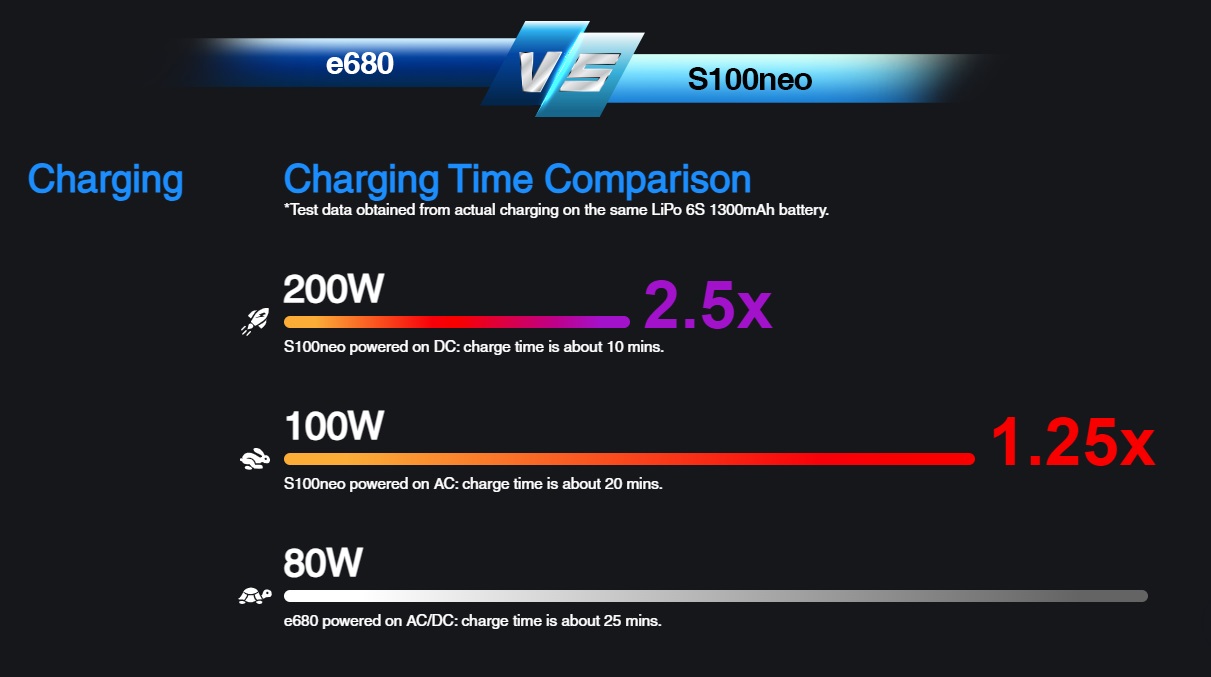

Outperforming its predecessor, the e680, which peaks at 8A, S100neo not only accelerates the charging process but also ensures a more efficient power-up.

Charging Elevated with Unmatched Balance
Experience unparalled precision in charging with S100neo's advanced balancing technology. With a robust balancing currrent of 1000mA, S100neo greatly surpasses the e680'S 300mA, offering faster and more efficient battery balancing. This ensures each cell is optinally charged, achieving perfect harmony and peak performance.

Do more with one charger ! Multiple chemistries go
With exceptional versatility, S100neo can charge a wide range of battery chemistries. This powerhouse can charge from LiPo and LiFe to Li-ion, LiHV, Pb, NiMH, and NiCd.
You are turbocharging your time with a single charger that can handle multiple battery types.
Whether you're an RC guru, a beginner, or somewhere in between, S100neo is the reliable and adaptable choice that ensures optimal performance for all your batteries.
Unlock the full potential of your battery arsenal with D100neo – versatility multiplied capability.

Versatile 2-in-1: Check Batteries Easily
When the balance port is connected, S100neo is a versatile battery checker capable of measuring cell voltage and the balance state of LiPo, LiHV and LiIon battery. The overall voltage and individual cell's voltage will be displayed on the fly to help tell whether the battery is fully charged or depleted and whether it needs balancing.

It will work as a safeguard for batteries, as, for example, LiPo battery is reknowned for their high energy density and lightweight properties. Proper care and monitoring are curcial to ensure their safety and longevity.

Digital power
S100neo is not only professional in charging but also can act as a digital power supply. After clicking on the menu, S100neo is ready for your application, offering an optimal voltage of 2-30V with 0.1V increment and adjustable 0.1-12A current.

Battery Thermal Guardian
Crucial for RC enthusiasts, S100neo's Thermal Cut-off* ensures battery saftey and reliability. When this temperature sensor** (Click Here for Sensor) is connected, the charger automatically halts charging at a preset temperature to prevent overheating.

*Currently, Thermal Cut-off is available for NiMH/NiCd batteries, with plans to extend it to other battery chemistries soon.
** The optional Temperature Sensor Cable is not included with the charger and must be purchased separately PS1185

Tuning Motors to Perfection with Run-in
S100neo boasts a Motor Run-in capability crucial for brushed motor's optimal performance. This function fine-tunes the motor by varying speeds for ideal brush alignment, enhancing efficiency and reducing wear.

Enhanced Protection, Assured Safety
The SkyRC Q200neo charger is built-in with several essential safety features ensuring optimal charging safety

• Short-circuit Protection
• Over-temperature Protection
• Capacity protection
• Time-out Protection
• Cut-off Protection
• Over-Voltage Protection
• V0 Flame-retardant

"Hush, I am Charging!"
Even under full power load, S100neo's cooling fan operate at a maximum of 48dB. You can confidentally study, fine-tine your pit work, or relax while charging without disruptions or distractions.

ColorX: Easy to Charge, Easy on the eyes
Step into the world of the Neo series chargers and discover the ColorX interface, where ease of use meets visual appeal. Designed specifically for RC charging, the light Cyan and green colour scheme enhances focus and adds a touch of style.

Featuring a responsive Web2.0 menu and smartphone-like icons, the interface offers an intuitive user experience.

The interface is currently avaiable in English, Dutch, Chinese, French and Japanese, with more languages to be released over time. Users can easily change the language with simple clicks.

Rectifier circuit, effiency multiplied
S100neo uses a proprietary rectifier circuit to efficiently convert DC into safe D/C power for battery charging. And its onboard MCU precisely controls the charging to minimize power loss to create an incredibly compact form factor.

Seamlessly Connect, effortlessly Upgrade!
Effortlessly connect your S100neo to your PC or Mac via the versatile Type-C port. With Charger Master, take full control and enhance your charging experience. Customize charging rates, monitor battery health and optimize performance for longer battery life.

Upgrade with ease using the app. Enjoy a fast and reliable upgrade process to enhance your charger's capabilities.

Specifications

Case Material: PC-ABS V0
Case Size: 105 x 105 x 62mm
Weight: 340g
Display Type: Tn
Size: 1.77 inch
Panel Active Area: 28.03 x 35.04mm
Resolution: 128x160 Pixel
Number of Colours: 262K

DC Input Voltage: 6-30V
AC Input Voltage: 100-240V 50/60Hz

Charger Power:
AC: 100W Max
DC: 200W Max

Discharge Power:
Max 20W based on 6S(4.2V/S)

Battery Types/Cells:
LiPo/LiHV/LiFe/LiIon: 1-6 Cells
NiMH/NiCd: 1-15 Cells
Pb: 3S/6S/12S

Charge Current:
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb: 0.1-12.0A

Discharge Current:
LiPo/LiFe/LiIon/LiHV/NiMh/NiCd/Pb: 0.1-2.0A

Balance Current:
LiPo/LiFe/LiIon/LiHV: 1000mA Max

Operation:
LiPo/LiFe/LiIon/LiHV: Balance Charge, Charge, Storage Discharge
NiMH/NICd: Charge, Discharge, CYCLE_C_D, CYCLE _D_C, Repeat Charge
Pb: Normal, Standard Charge, AGM Charge/discharge, Low-temperature Charge
