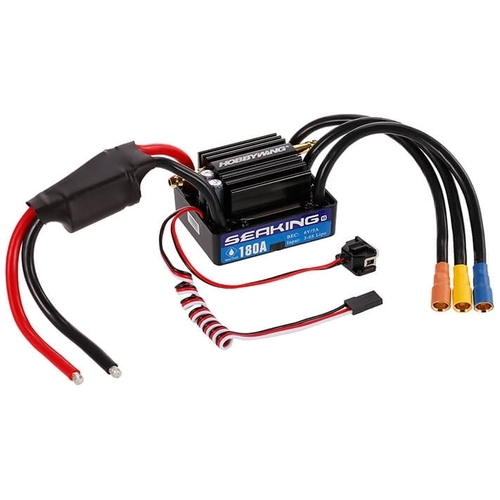

Seaking 180A V3 Waterproof ESC

Waterproof 180A Electronic Speed Controller

Watercooled and waterproof 180A Brushless Motor Electronic Speed Controller for Boats.

Hobbywing Seaking 180A V3 CTP Speed Control HW30302401

“SeaKing” series Boat ESC has water-cooling heat-sink and the whole ESC is waterproof.

1 Features

1.1 Excellent waterproof design (rates as IP 67) allows this ESC to work in water without any extra precautions;
1.2 High quality components have very strong over-current withstanding capabilities;
1.3 Patented Copper Heat Conduction technology and high-efficiency water cooling system can easily dissipate the heat produced in operation under high load;
1.4 The special firmware designed for RC boats can make the acceleration punchier and the sailing more stable;
1.5 The External Programming Port can connect to the LED Program Box HW30501003 for easily setting the parameters of the ESC;
1.6 Multiple protections like low-voltage cutoff protection, thermal protection and throttle signal loss protection, make the ESC more reliable;

2 Specification

2.1 Continuous Current: 180A
2.2 Peak Current: 1080A
2.3 Input: 3-6S Lipo
2.4 BEC Type: Switch Mode
2.5 BEC Output: 6V/5A
2.6 External Programming Port: Available
2.7 Boat Applicable: Boat length <130cm
2.8 Water Cooling Pipe (Inside / Outside): Ф3.0 / Ф5.4
2.9 Size (Include the Water Cooling Pipe): 72×48×36.6mm
2.10 Weight: 207g

Hobbywing Part # 30302401
