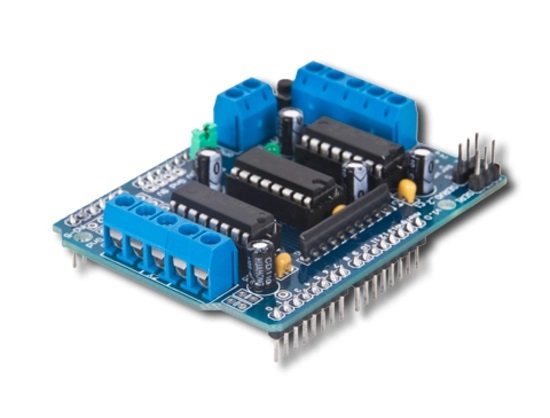

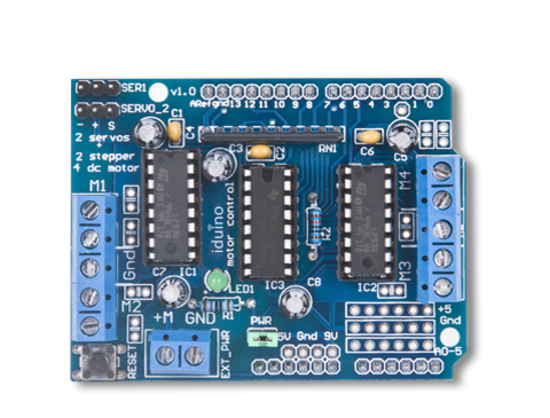

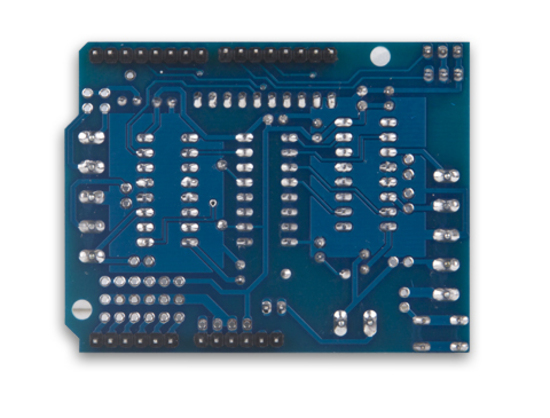

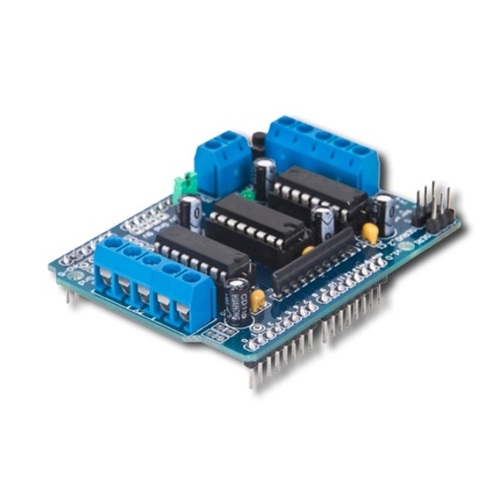

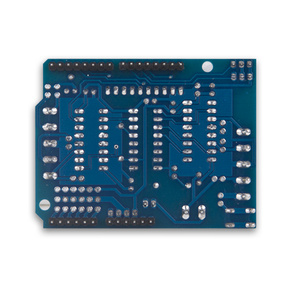

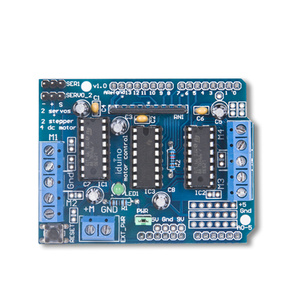

Servo/Motor Controller Shield for Arduino Projects
Controls 2 Servo Motors with Arduino Board
SKU: TA0066
$8.75
RRP $15.95
In Stock
Servo/Motor Controller Shield for Arduino Projects
Controls 2 Servo Motors with Arduino Board
This Servo or Motor Controller has 2 x 5V servo ports connected to the Arduino's high-resolution dedicated timer to ensure jitter-free operation. An Arduino Motor Shield that is capable of driving up to 4 bi-directional DC motors with individual 8-bit speed selection, or up to 2 stepper motors with single/two/interleaved steppings.
-
5V to 36VDC
-
4 H-Bridges: per bridges provides 0.6A (1.2A peak current) with thermal protection
-
2 external terminal power interface
-
Dimensions: 70(L) x 53(W) x 20(H)mm
Click here to download instruction manual
CLICK HERE TO SEE OTHER ARDUINO SENSORS
CLICK HERE TO SEE OTHER ARDUINO MODULES
CLICK HERE TO SEE OTHER ARDUINO PRODUCTS
3 Month Warranty
| SKU | TA0066 |
| Barcode # | 9351634003006 |
| Brand | iduino |
| Shipping Weight | 0.0500kg |
| Shipping Width | 0.140m |
| Shipping Height | 0.020m |
| Shipping Length | 0.090m |
| Shipping Cubic | 0.000252000m3 |
| Unit Of Measure | ea |
motor driver
By: sam on 15 September 2022the shield works really well, and is a great price
(5)
A must have for 4XD robots
By: John McFadyen on 24 August 2017Very useful bit of gear. Easy to code. Can be used on MEGA board and still allow for lots of pin connections
(5)
Good Product
By: Selena on 14 August 2017The motor shield does what I needed it to do, works good with my robotics project.
(5)
