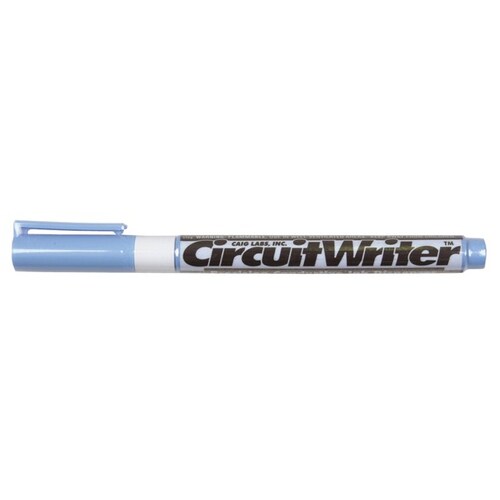

Silver Conductive Pen

Fix damaged PCB Tracks with this Silver Conductive Pen

This is a highly conductive polymer for use in a variety of applications and is an indispensable tool for fixing damaged circuit board tracks. Apply instant traces on most surfaces (epoxy, glass, plastic, metal).

Draw traces on circuit boards, repair defective traces, make jumpers and shield electronics, design prototype circuits and repair rear-window heater traces.

• 1mm track trace width
• 0.02Ohm per mm resistivity

After heat curing only. Use low temperature soldering (less than 180oC/350oF) for not more than 5 seconds. Use low temperature soldering iron.

Please note, After opening this product begins to dry out. This will affect it performance. Best results are achieved within 60 days of opening. After this performance will diminish
When first applied, conductivity will be very low. As the carrier solvent evaporates away, and only the adhesive and silver are left, conductivity climbs.  This process can be accelerated by adding a little heat – we recommend “drying” the product after application by putting it under an open bulb type light.

Specifications
