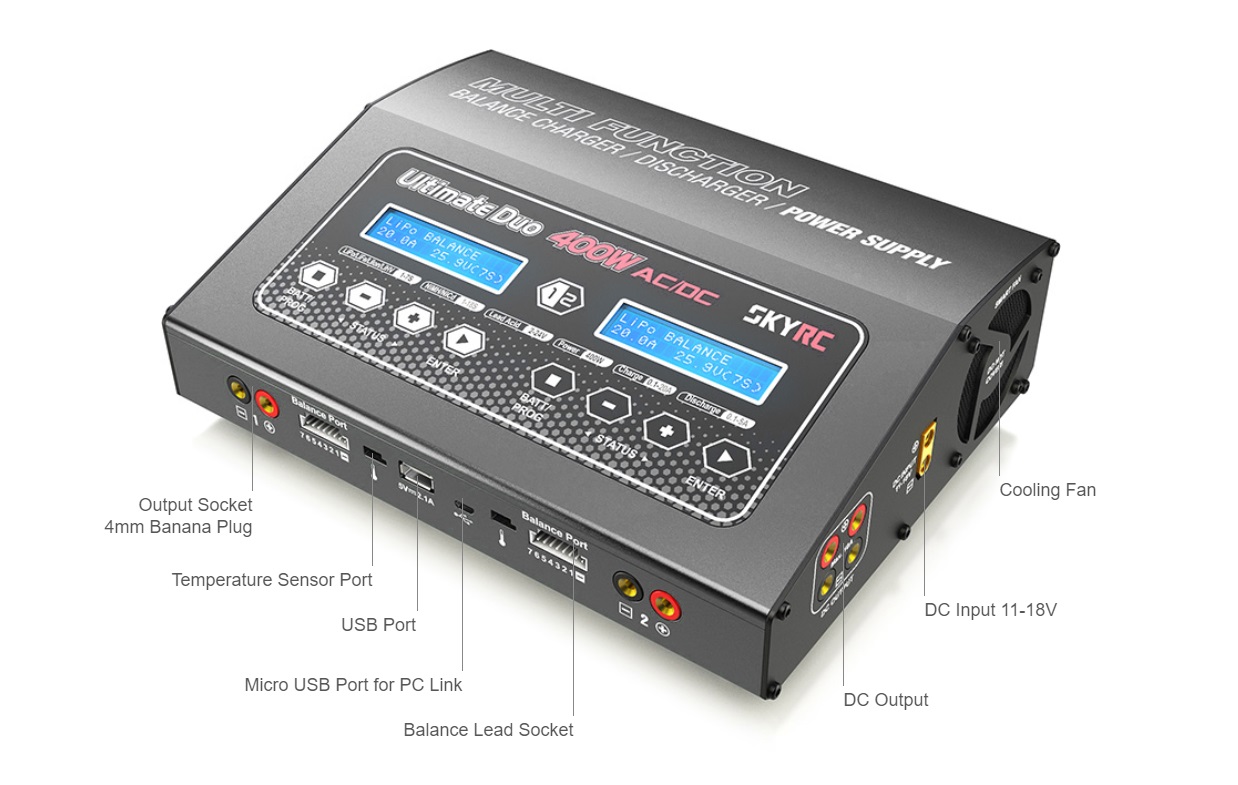

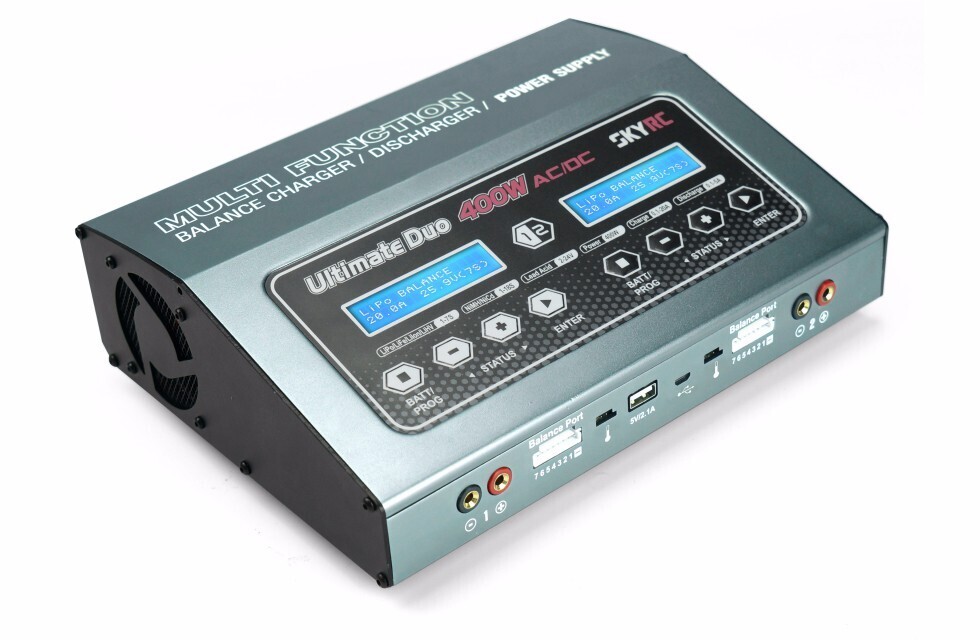

SkyRC D400 Ultimate Duo 400W Dual Battery Balance Charger

Charge two Li-Po Battery packs at the same time

SKYRC D400 is a twin-channel charger with two independent circuits which can charge two different kinds of batteries simultaneously. It also supports power distribution in both AC and DC modes to get max charging power to shorten charging time. Moreover, it is not just a charger, but also a power supply which gives maximum 150 watts DC power on channel 2 for users to power their DC devices.

What’s more, the synchronization mode is available, in which users could perform synchronous settings for charging same batteries simultaneously to offer time-saving benefits

Power Distribution

It supports power distribution, for example,Channel 1-300w, then channel 2-100W, the total power is 400W. Please note the Max power of channel 2 is 200w, but that of channel 1 is 400W.

Twin-channel Charger

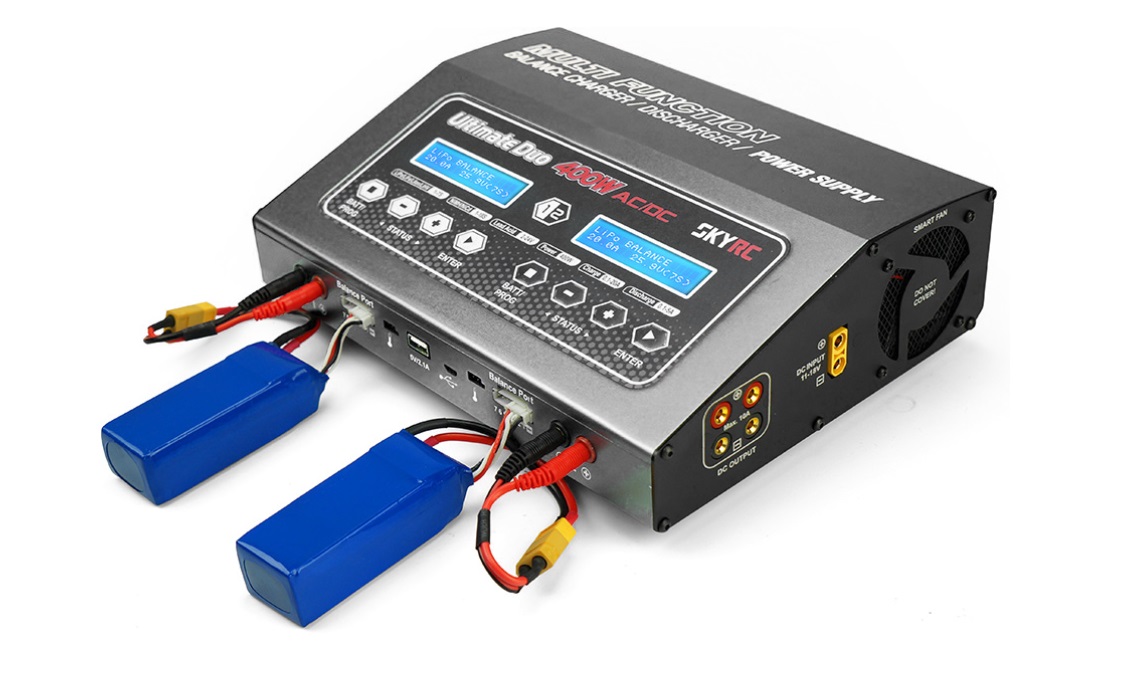

SkyRC D400 allows you to charge 2 batteries (same or different) simultaneously and independently.

DC Power Supply

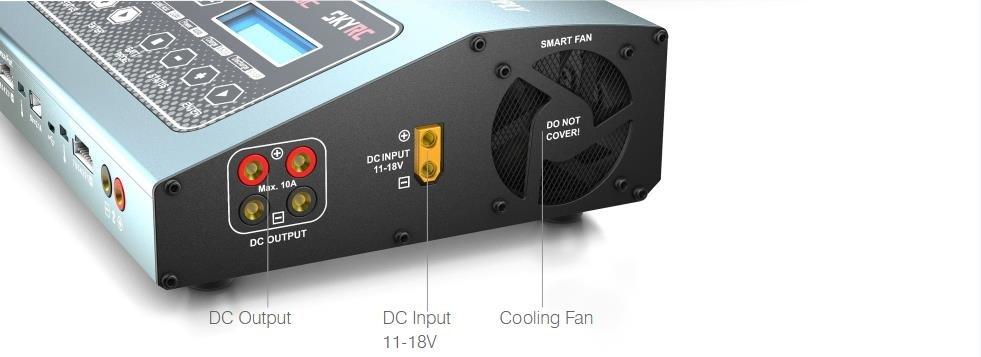

SkyRC D400 can supply 150 watts DC Power on channel 2. User can use it to power equipments that require DC Power. It converts standard 100-240V AC mains to 6-15V DC output.



Synchronization Mode

Employ this function, user can set both channel by channel 1, that saves much time.



PC Software for Data Analysis and Firmware Upgrade

Charge Master can start/stop charging process, and view real-time graphs of current, voltage, capacity and monitor single cell voltage.



Specifications

Input Voltage

AC 100-240V/DC 11-18V

Charge Circuit Power

400W

Discharge Circuit Power

36W

Charger Current Range

0.1-20A

Discharge Circuit Power

0.1-5A

Current Drian for Balancing Port

Max 500mA/cell

Trickle Charging Current

50mA-300mA & OFF

DC Power Supply Output

6-15V/Max.10A

LiPo/LiFe/Lilon/LiHV Battery Cell Count

1-7S

NiMH/NiCd Battery Cell Count

1-18S

Pb Battery Voltage

2-24V

Weight

2510g



Size

Length ： 258mm
Width  ： 194mm
Height ： 82.5mm
