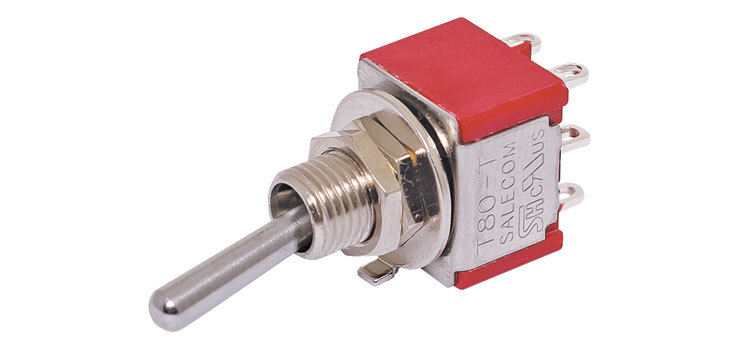

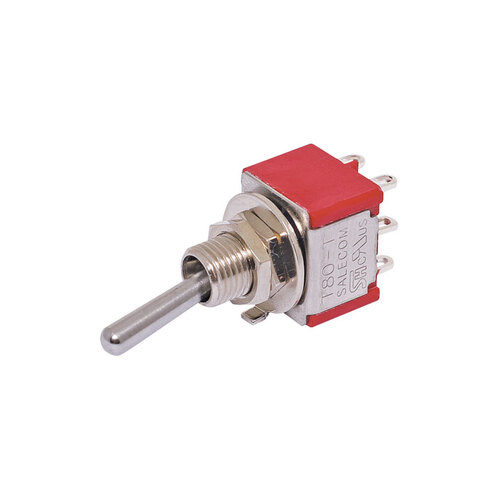

SP3T Solder Tail Mini Toggle Switch
Toggle Switches for your Electronics Projects!
SKU: AC3217
$7.95
RRP $15.95
In Stock
SP3T Solder Tail Mini Toggle Switch
Toggle Switches for your Electronics Projects!
SPECIFICATIONS:
- Contact Resistance: 10mΩ max
- Insulation Resistance: 1,000M Ω min
- Dielectric Strength: 1500V a.c. 50/60Hz
- Soldering Temperature: 260°C
- Duration of Solder Immersion: 5 ± 1
- Resistance Low Temperature: -30 ± 3°C
- Resistance High Temperature: 85 ± 3°C
- Resistance Humidity Temperature: 40 ± 2°C
- Relative Humidity: 90-95%
| SKU | AC3217 |
| Barcode # | 9321758244173 |
| Shipping Weight | 0.0200kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.030m |
| Shipping Length | 0.050m |
| Shipping Cubic | 0.000150000m3 |
| Unit Of Measure | ea |
