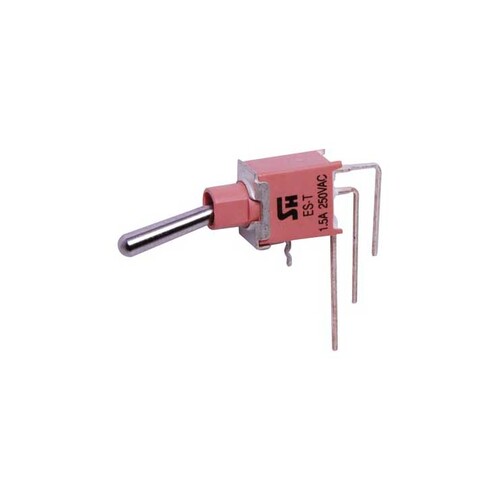

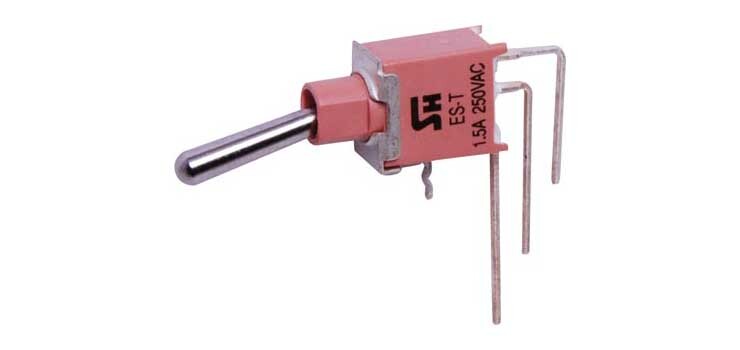

SPDT 90 Deg. PCB Mount Sub-Mini Toggle Switch
Toggle Switches for your Electronics Projects!
SKU: AC3220
$4.95
RRP $9.95
In Stock
SPDT 90 Deg. PCB Mount Sub-Mini Toggle Switch
Toggle Switches for your Electronics Projects!
SPECIFICATIONS:
- Contact Rating: 1.5A @ 250V
- Electrical Life: 50,000 cycles at full load
- Contact Resistance: 20m Ohm max. initial at 24V DC @ 100mA
- Insulation Resistance: 1,000 M Ohm min.
- Dielectric Strength: 1000V RMS at Sea Level
- Operating Temperature: -30°C to 85°C
- Bushing: Glass Filled Nylon 66
- Case: Glass Filled Nylon 66
- Contact & Terminals: Copper Alloy with Gold Plate over Nickel Plate
| SKU | AC3220 |
| Barcode # | 9321758065952 |
| Shipping Weight | 0.0200kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.030m |
| Shipping Length | 0.050m |
| Shipping Cubic | 0.000150000m3 |
| Unit Of Measure | ea |
