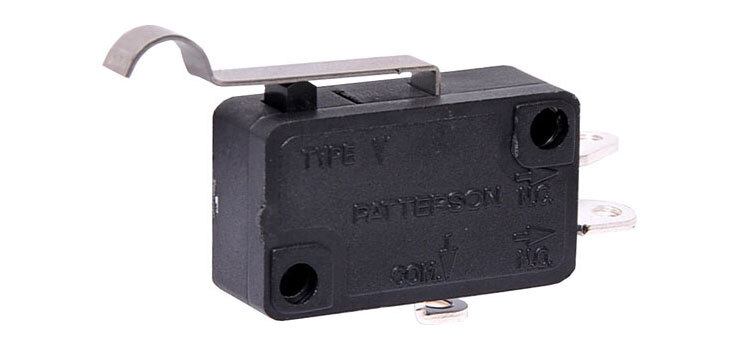

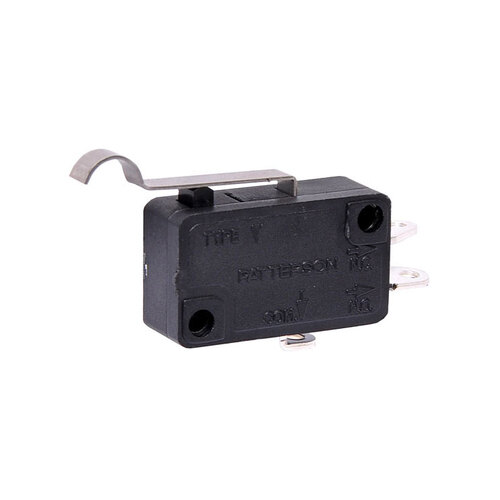

SPDT Momentary Solder Tail Microswitch (15A)

Push Button Switches for your Electronic Projects!

SPECIFICATIONS:

• Rating: 15A 125 / 250 VAC
• Terminal: A ( Solder )
• Circuit Position: S.P.D.T.
• Operating Force (OF): max.200 g
• Releasing Force (RF): min. 28 g
• Pre-Travel (PT): max. 2.5mm
• Over-Travel (OT): min. 1.6mm
• Movement Differential (MD): max. 1.2mm
• Operating Position (OP): 18.2+1.2mm
• Dielectric Strength (between contacts): 1,000 VAC ; 50 / 60 HZ for 1 minute
• Dielectric Strength (between terminal and ground): 1,500 VAC ; 50 / 60 HZ for 1 minute
• Mechanically Service Life: 5,000,000 operations / (min.)
• Electrically Service Life: 500,000 operation /(min.)(at rated load)
• Ambient Temperature: 25°C ~ 180°C
