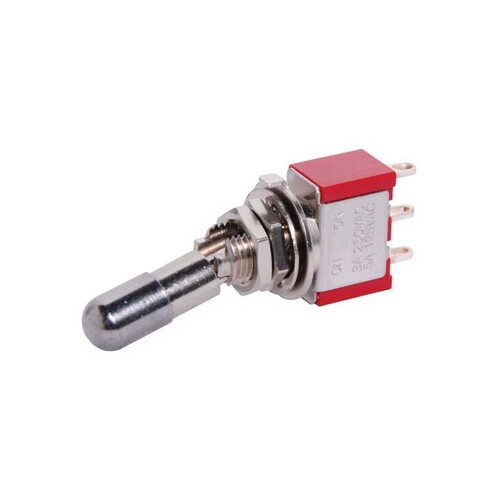

SPDT With Locking Mech. Solder Tail Mini Toggle Switch

Toggle Switches for your Electronics Projects!

SKU: AC3197


$7.95
RRP $15.95
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $7.55 ea
Buy 11 to 20: Pay $7.17 ea
Buy 21 to 99: Pay $6.82 ea




Calculate Shipping

SPDT With Locking Mech. Solder Tail Mini Toggle Switch

Toggle Switches for your Electronics Projects!

SPECIFICATIONS:

  • Contact Rating: 2A @ 250V AC or 28V DC resistive load
  • Electrical Life: 50,000 cycles at full load
  • Contact Resistance: 10m Ohm max. initial at 24V DC @ 100mA
  • Insulation Resistance: 1,000 M Ohm min.
  • Dielectric Strength: 1000V RMS at Sea Level
  • Operating Temperature: -30°C to 85°C
  • Bushing: Nickel Plated Brass
  • Case: Melamine or Diallyl Phthalate (DAP)
  • Housing: Stainless Steel
  • Contact Material: Gold Plated Brass
  • End Contact: Coin Silver, Silver Plated
  • End Terminal: Silver Plated Brass
  • Centre Contact & Terminal: Silver Plated Brass
SKU AC3197
Barcode # 9321758106525
Shipping Weight 0.0200kg
Shipping Width 0.100m
Shipping Height 0.030m
Shipping Length 0.050m
Shipping Cubic 0.000150000m3
Unit Of Measure ea
