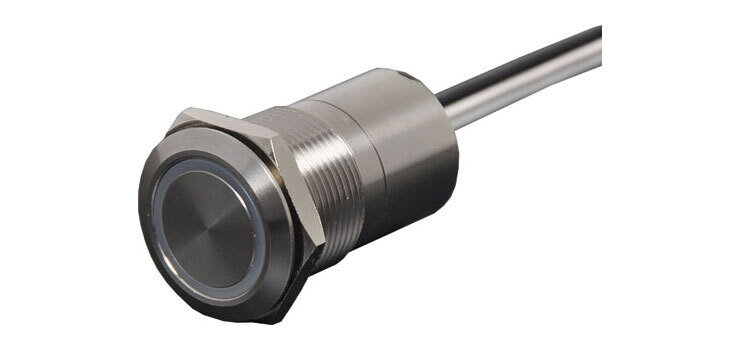

SPST LED Vandal Resistant IP67 Momentary Touch Switch

Push Button Switches for your Electronic Projects!

Touch activated dual colour (red, green) LED switch for ticket machines, kiosks, access control etc. IP67 rated. 30cm fly lead connection. Momentary touch action.


SPECIFICATIONS:

• Panel Thickness: 10mm
• LED Colours: Red/Green
• LED Operating Voltage: 12VDC
• Max Switch Rating: 500mA/24VDC
• Electrical Life: 50 million cycles at full load
• Contact Resistance: ≤20MΩ
• Insulation Resistance: ≥10MΩ 600VDC
• Operating Temperature: -25°C to +55°C
• IK Class: IK10
• IP Class: IP67
• Body Material: Stainless steel
• Cable Materials: UL1430 22AWG
