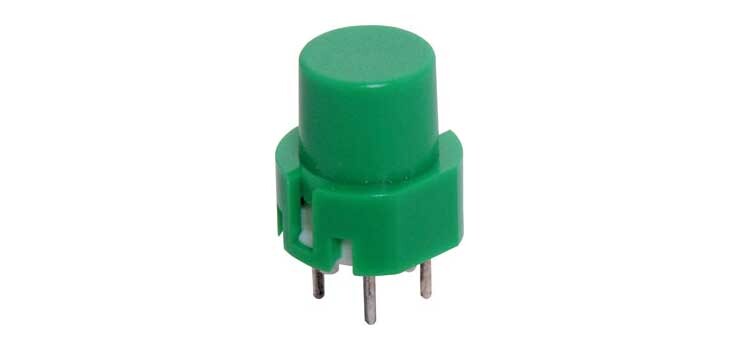

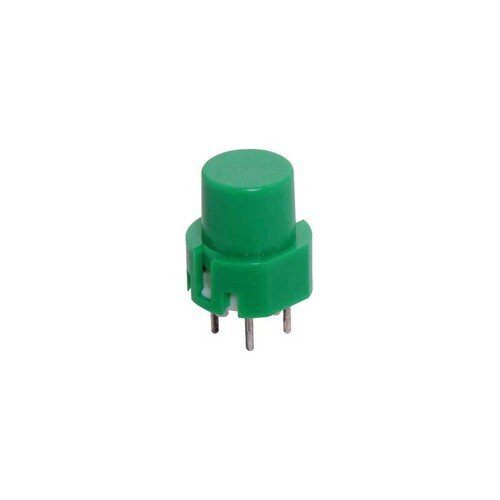

SPST Momentary Green PCB Mount Tactile Switch
Push Button Switches for your Electronic Projects!
SKU: AC3294
$1.95
RRP $3.95
Sold Out
SPST Momentary Green PCB Mount Tactile Switch
Push Button Switches for your Electronic Projects!

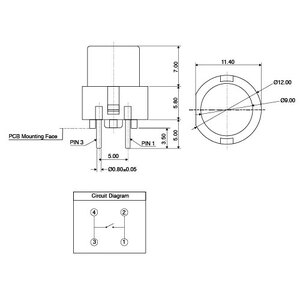

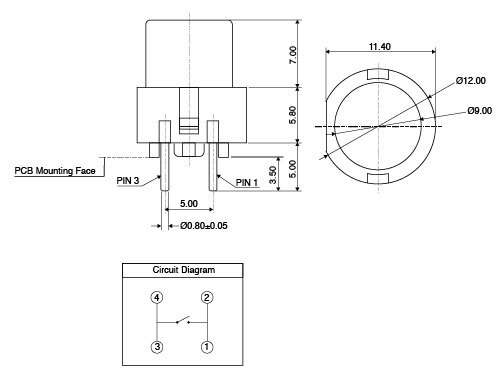

SPECIFICATIONS:
- Colour: Green
- Type: SPST
- Action: Momentary
- Contact Resistance: 50mΩ Max
- Operating Force: 130±50gf
- Actuator Diameter: 9mm
- Insulation Resistance: 100MΩ Min
- Dielectric Strength: 500V AC (50~60Hz) for 1 minute
- Life (nominal current & voltage): 100000 cycle
- Temperature Range: -10ºC to +65ºC
- Solderability: 235ºC for 5 seconds
- Travel: 0.80mm Max
| SKU | AC3294 |
| Barcode # | 9321758076613 |
| Shipping Weight | 0.0200kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.030m |
| Shipping Length | 0.050m |
| Shipping Cubic | 0.000150000m3 |
| Unit Of Measure | ea |
