SPST Red Push On Mini Pushbutton Switch
Push Button Switches for your Electronic Projects!
SKU: AC3274
$1.95
RRP $3.95
In Stock
SPST Red Push On Mini Pushbutton Switch
Push Button Switches for your Electronic Projects!
These handy miniature push buttons are ideal for any simple low current circuit switching. Red actuator with normally open push button action.
SPECIFICATIONS:
- Circuit: A: (ON)-OFF
- Rating: 1A 125V ac / 0.5A 250V ac
- Contact resistance: 30mΩ Max
- Insulation resistance: 500V DC 100mΩ Min
- Dielectric Strength: 1000V AC 1 Minute
- Electrical Life: 5000 cycle
- Mechanical Life: 10,000 cycle
- Terminal Material: Copper, Alloy, (Silver or Gold Plated)
- Push Force: >0.3kg
- Soldering: 240° for 3 seconds

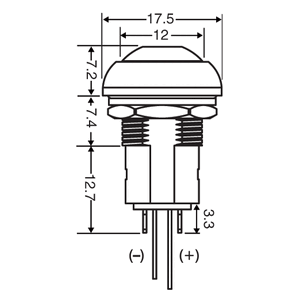

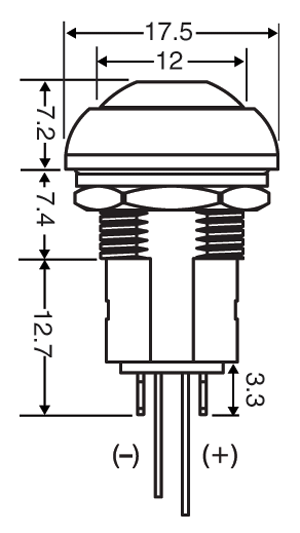

- Mounting hole diameter: 7.3mm
| SKU | AC3274 |
| Barcode # | 9321758224212 |
| Shipping Weight | 0.0200kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.030m |
| Shipping Length | 0.050m |
| Shipping Cubic | 0.000150000m3 |
| Unit Of Measure | ea |
