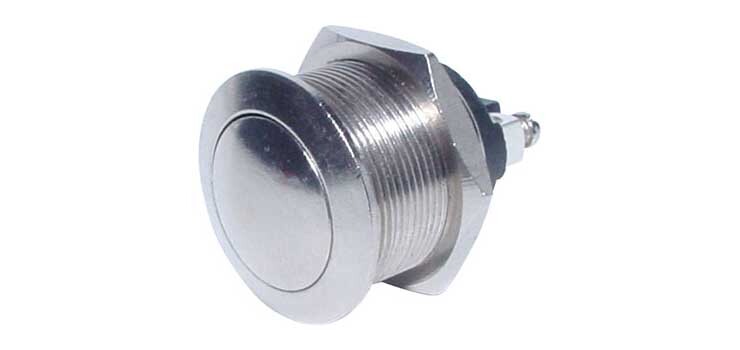

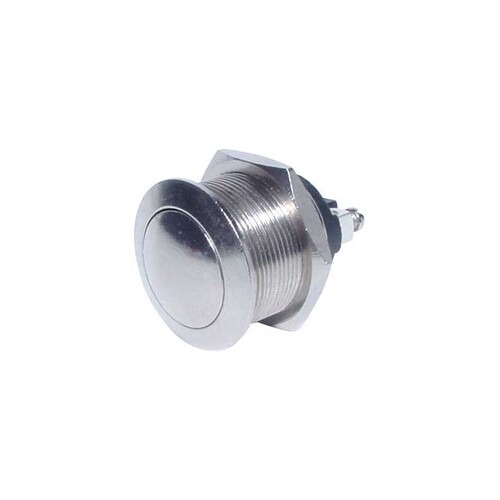

SPST Vandal Resistant Momentary Pushbutton Switch

Push Button Switches for your Electronic Projects!

Heavy duty vandal resistant switch for indoor/ sheltered outdoor use eg carparks, building entrances. Momentary.


SPECIFICATIONS:

• Rating: 4A 125V AC, 2A 250V AC
• Contact: 20Ωm max
• Insulation: 500V DC 100Ωm min
• Dielectric Strength: 1min 1000V AC
• Operating Temperature: -25°C ~ +85°C
• Electrical Life: 50,000 cycles
• Rating: 4A 125V AC, 2A 250V AC
• Contact: 20M Ohm max
• Insulation: 500V DC 100M Ohm min
• Dielectric Strength: 1min 1000V AC
• Operating Temperature: -25°C ~ +85°C
• Electrical Life: 50,000 cycles
• Switch Type: NO contacts, Screw terminal SPST
• Contact Rating: 2A @ 250V AC, 4A 12V DC
• Panel Thickness: 1-10mm
