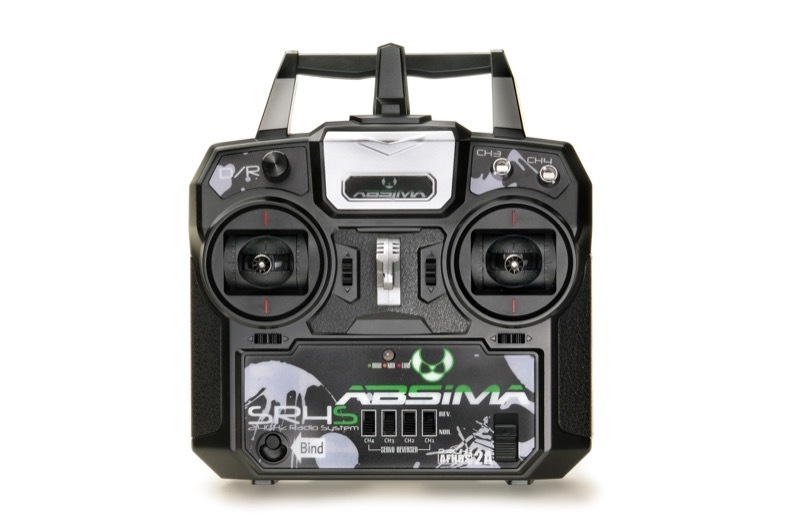

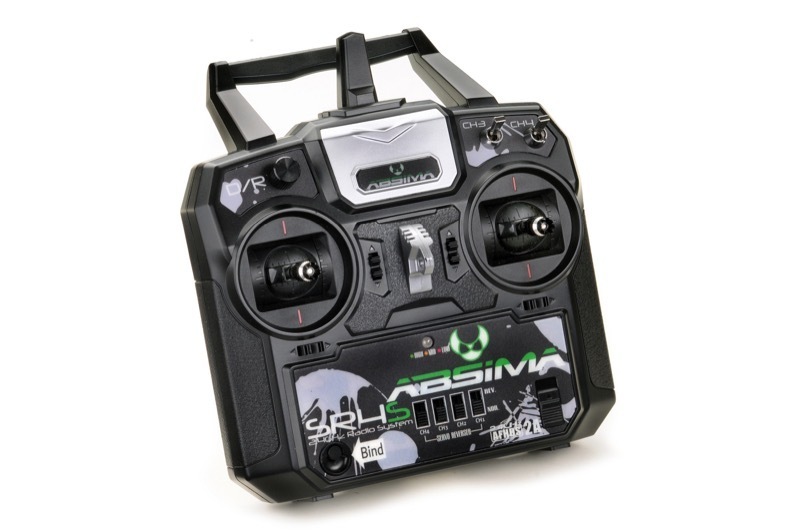

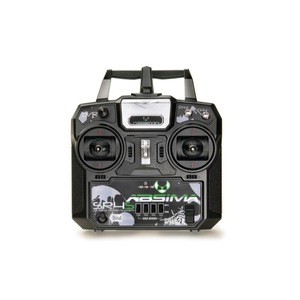

SR4S 4 Channel Radio Stick Transmitter & Receiver

 4 Channel Radio Control Transmitter & Receiver

The new SR4S remote control is the basis for every model fan who prefers to operate a joystick rather than reach for the steering wheel and is also the successor to our incredibly popular "SR2S" 2-channel stick remote control. The lighter and slimmer design ensures that your hands won't get tired even on longer trips. In addition, the 6V (4* AA) operating voltage reduces the functional weight by 40%

Equipped with the following standard functions:

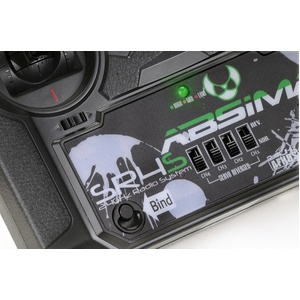

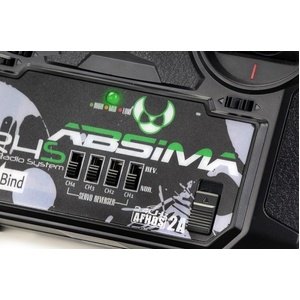

• Servo Reverse (the direction of rotation/switching of the individual channels can be changed using this function)
• Trim-Function for throttle and steering (setting the throttle neutral position and straight-ahead running)
• ST. D/R Function for setting the servo travel limit (steering servo only)

There are also channels 3 & 4 for free assignment, which can be operated via 2 toggle switches.

Radio Specification:

• 4 channel
• Frequency: 2.4GHz
• Protocol: AFHDS 2A

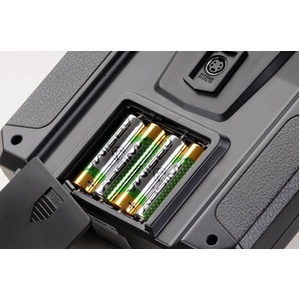

• Operating voltage: 6V DC (4* 1.5V AA Mignon)
• Low V Alarm: below 4.2V
• Temperature: 0°C - +60°C
• Weight: 320g
• Dimensions: 190*174*89mm

Receiver Specification:

• 2020012 - 4 channel mini receiver
• Frequency: 2.4GHz
• Protocol: AFHDS 2A
• Waterproof: Yes
• Operating voltage: 4.8V-7.4V
• Dimmensions: 35x30x13mm
• Weight: 15g
• Aerial length: 260mm

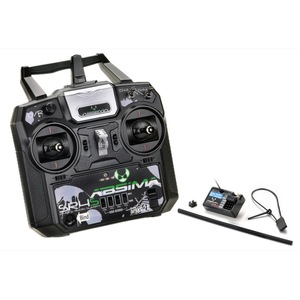

Scope of delivery:

• SR4S radio
• R4WP receiver
• Bind plug
• Aerial tube
• Manual
