Steel Door Flush Mount Magnetic Reed Switch

Alarm Accessories for Home Security!

SKU: SR2417


$9.95
RRP $19.95
In Stock

Buy In Bulk & Save!
Buy 4 to 10: Pay $9.45 ea
Buy 11 to 20: Pay $8.98 ea
Buy 21 to 99: Pay $8.53 ea
Buy 100 to 500: Pay $7.68 ea




Calculate Shipping

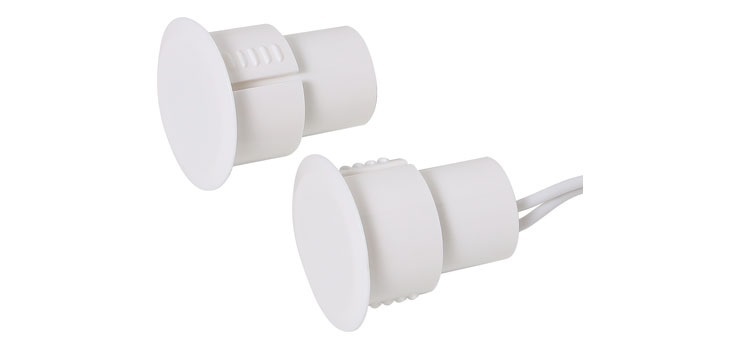

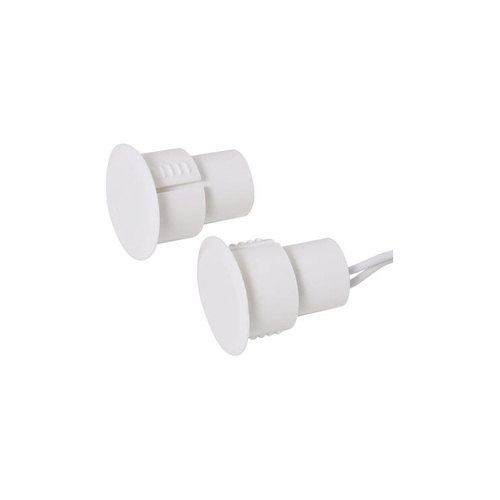

Steel Door Flush Mount Magnetic Reed Switch

Alarm Accessories for Home Security!

A concealed magnetic reed switch designed for use with metal door frames.

Magnetic contact is widely used for alarm systems to detect the state of the door.

It consists of a reed switch and a magnet.

When the door closes, the magnet interacts with the reed switch, turning it "OFF".

When the door opens, the magnet will interact with the reed switch again, turning it "ON" and triggering the alarm.

FEATURES:

  • Recessed steel door switch set
  • Self locking

SPECIFICATIONS:

  • Contact Type: NC - Switch ON when magnet near
  • Operating Gsp: ≥30mm
  • Max Switching Voltage: 100V DC/AC
  • Max Switching Current: 0.5A
  • Operating Load: 10W
  • Working Temperature: -20 ~ 80°C
  • Working Life: >100,000 times
  • Connection Type: 350mm 1007/22AWG
  • Material: ABS
  • Colour: White
SKU SR2417
Barcode # 9321758247129
Shipping Weight 0.0500kg
Shipping Width 0.100m
Shipping Height 0.030m
Shipping Length 0.050m
Shipping Cubic 0.000150000m3
Unit Of Measure ea
