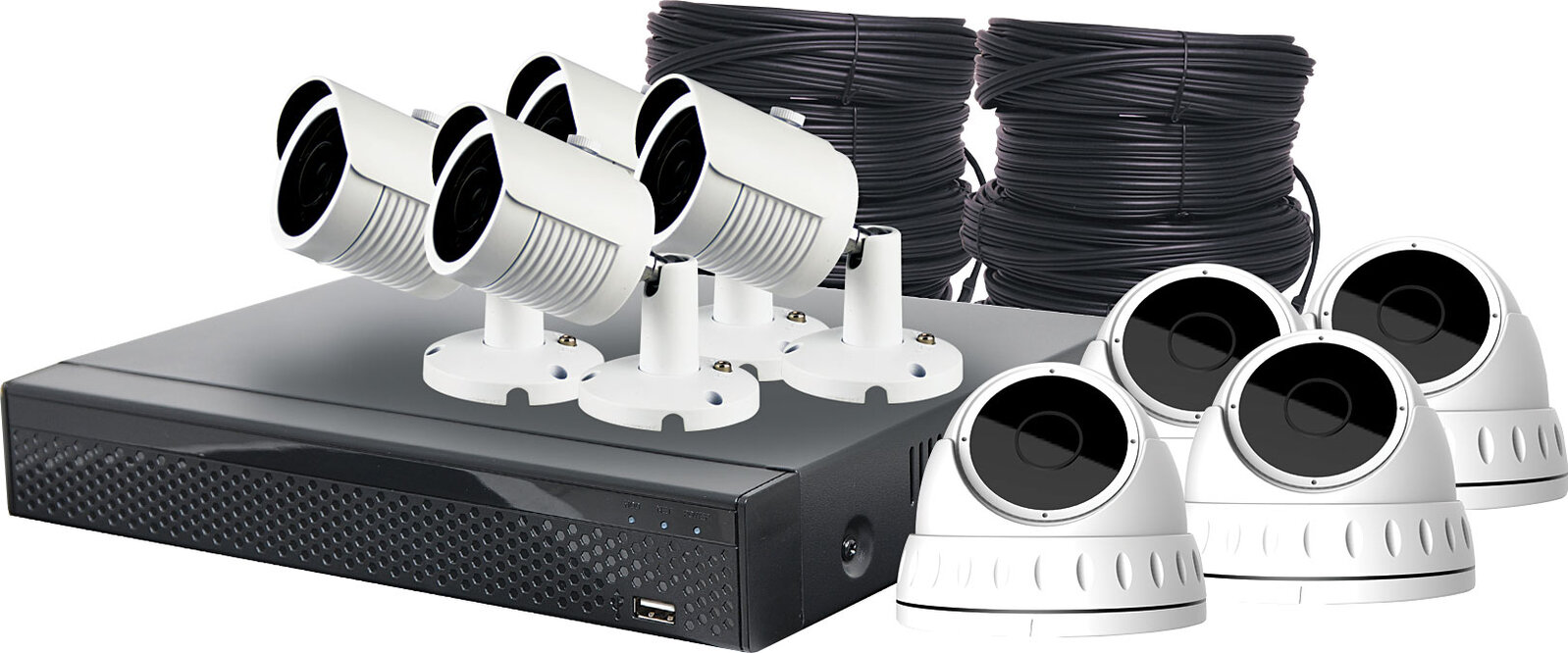

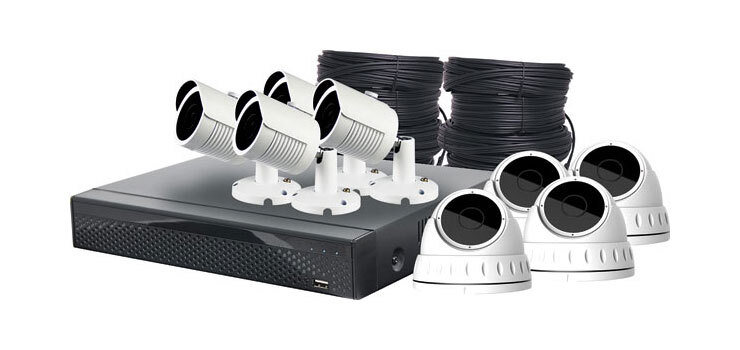

Surveillance CCTV DVR & 4 x 5MP Dome and 4 x Bullet Camera Package

Low Cost Surveillance Package for your home or office

This package is a total home or small business solution as it contains 4 5MP bullet cameras and 4 5MP dome camera to suit a variety of needs and spaces. Cameras plus a surveillance DVR with 5MP recording and more. The solution ideal for homes and small businesses.


Features

• Support AHD/CVI/TVI/IP/Analog Camera Input

• Up to HD 5MP and IP 8MP Resolution Recording

• Support HD Output, VGA and CVBS Video Output

• Support Max. 4CH HD or 16CH IP Camera Input

• Support 1 SATA up to 6TB Capacity

• Includes cameras, digital video recorder, connection leads & power supplies.

• Easily installs in just a few hours.

• Ideal for home or office.

• Suitable for DIY.

• Just add a hard drive and plug it in!

•

  NOTE:
  Installations of CCTV systems can vary greatly in configuration and technical complexity. We recommend that unless you have skills in computer networking that you engage a CCTV installer or professional to set up your installation. The process can involve opening router ports, setting up IP routes etc which can be daunting for a beginner. Every installation is different, as a result, it can be difficult to diagnose set up issues over the phone or via email.

• Dome Camera Specifications

•

• Camera

• Video Output Mode: AHD: 5M@20fps/12.5fps, 4M@30fps/15fps; TVI: 5M@20fps/12.5fps, 4M@30fps; CVI: 4M@30fps

• Image Sensor: 1/2.7" OmniVision 5MP CMOS Sensor

• DSP: NVP2475H

• Image Resolution: 5MP

• Effective Pixels: 5M:2592*1944 4M:2560*1440

• TV System: PAL/NTSC

• Electronic Shutter: 1/25s~1/50,000s , 1/30s~1/60,000s

• S/N Ratio: ≥50dB

• Scanning System: Progressive Scan

•

• Lens

• Focus Length: 3.6mm (2.8mm/6mm Optional)

• Focus Control: Fixed

• Lens Type: Fixed

• Pixels: 5M Pixels

• Auto Iris Support: NO

•

• Night Vision

• Infrared LED: 14μ x 18PCS

• Infrared Distance: 20M

• IR Status: Under 10 Lux by CDS

• IR Power On: CDS Auto Control

•

• Camera Features

• Day/Night: YES

• OSD Menu Language: YES

• White Balance: AUTO / MANUAL

• Gain Control: AUTO

• Noise Reduction: 2D/3D NR

• Picture Adjustment: YES

• WDR: YES

• OSD Support: YES

• UTC: YES

•

• General

• Housing: Metal, IP66

• Bracket: NO

• Dual Voltage: NO

• IR Cut Filter: YES

• Heater: NO

• Operation Temperature: -10° ~ +50° RH95% Max

• Storage Temperature: -20° ~ +60° RH95% Max

• Power Source: DC12V±10%, 500mA

• Dimensions: ¢94.5 x 76(H) mm

• Weight: 450g

•

• Bullet Camera Specifications

•

• Camera

• Video Output Mode: AHD: 5M@20fps/12.5fps, 4M@30fps/15fps; TVI: 5M@20fps/12.5fps, 4M@30fps; CVI: 4M@30fps

• Image Sensor: 1/2.7" OmniVision 5MP CMOS Sensor

• DSP: NVP2475H

• Image Resolution: 5MP

• Effective Pixels: 5M:2592*1944 4M:2560*1440

• TV System: PAL/NTSC

• Electronic Shutter: 1/25s~1/50,000s , 1/30s~1/60,000s

• S/N Ratio: ≥50dB

• Scanning System: Progressive Scan

•

• Lens

• Focus Length: 3.6mm

• Focus Control: Fixed

• Lens Type: Fixed

• Pixels: 5M Pixels

• Auto Iris Support: NO

•

• Night Vision

• Infrared LED: 42μ x 2PCS

• Infrared Distance: 30M

• IR Status: Under 10 Lux by CDS

• IR Power On: CDS Auto Control

•

• Camera Features

• Day/Night: YES

• OSD Menu Language: YES

• White Balance: AUTO / MANUAL

• Gain Control: AUTO

• Noise Reduction: 2D/3D NR

• Picture Adjustment: YES

• WDR: YES

• OSD Support: YES

• UTC: YES

•

• General

• Housing: Metal, IP66

• Bracket: YES

• Dual Voltage: NO

• IR Cut Filter: YES

• Heater: NO

• Operation Temperature: -10° ~ +50° RH95% Max

• Storage Temperature: -20° ~ +60° RH95% Max

• Power Source: DC12V±10%, 500mA

• Dimensions: 157(W) x 70(H) x 66(D)mm

• Weight: 650g

•

• DVR Specifications

•

• System

• Main Processor: HI3531A

• Operating System: Embedded LINUX

•

• Video

• Input: Analog: 8*(TVI/AHD: 5M; AHD/TVI/CVI: 4M; AHD/TVI: 3M; AHD/TVI/CVI: 1080P/720P; Analog: 960H)

• Analog+Network: 6*Analog+10*network(Max 8MP), 4*Analog+12*network(Max 8MP), 2*Analog+14*network(Max 8MP) Network: 32*network(Max 8MP)(Total incoming bandwidth ≤200M)

• Input: 8CH BNC

• Signal Type: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network

• Output: 1 HD Port,1 VGA, 1CVBS

•

• Audio

• Input: 4Channel, RCA

• Two-way Audio: NO

• Output: 1 Channel, RCA

•

• Alarm

• Sensor Input: NO

• Output: NO

• Motion Detection: 8 Channel(max 32 Channel in pure network mode)

• Trigger Events: Recording, Alarm, Email, Screen tips, Buzzer

• Email Alarm: Send Image to The Designated E-mail

•

• PTZ

• Interface: RS485

• Protocol: Pelco-D, Pelco-P

• Baud Rate: 110~921600

• Address: 0~255

•

• Display

• VGA: Resolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz

• HD Output: Resolution:2560*1440/30Hz, 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz

• Display Split: 16 Channel/9 Channel/8 Channel/4 Channel / 1Channel

• Privacy Masking: 3 Rectangular Zones (Each camera)

• OSD: Camera title, Time, Video loss, Alarm, Motion detection, Recording

•

• Recording

• Video Compression: H.264

• Audio Compression: G711u

• Resolution: 5MP(2592×1944), 5MP_HALF(1296×1944), 4MP(2560×1440), 4MP_HALF(1280×1440), 3MP(2048×1536), 1080P(1920×1080), 720P(1280× 720), 960H(P:960×576/N:960×480)

• Video Quality: worst/worse/ordinary/well/best

• Record Rate:

• Analog:PAL: 5MP(2592×1944 8*12fps), 5MP_HALF(1296×1944 8*20fps), 4MP(2560×1440 8*15fps), 4MP_HALF(1280×1440 8*25fps), 3MP(2048×1536 8*18fps), 1080P(1920x1080 8*25fps), 720P(1280×720 8*25fps), 960H(960×576 8*25fps)

• Pure IP:PAL: 4k@18×25fps, 5MP@20×25fps, 4MP@28x25fps, 3MP@28×25fps, 1080P@32×25fps, 960P@32×25fps, 720P@32×25fps, D1@32×25fps

• Record Mode: Manual/ Timer/ Motion/ Detection

•

• Playback & Backup

• Decode Capability: 4CH 1080P@30fps

• Sync Playback: Pure Analog: 8CH 5M@12fps,8CH 4M@15fps, 8CH 3M@18fps, 8CH 1080p@30fps, 2CH HD+14CH IPC: 2CH 5M@30fps, 2CH 4M@30fps, 3CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps 4CH HD+12CH IPC: 2CH 5M@30fps, 2CH 4M@30fps, 3CH 3M@30fps,4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps 6CH HD+10CH IPC: 2CH 4M@30fps, 3CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps

• Pure IPC: 2CH 4K@30fps, 4CH 5M@30fps, 4CH 4M@30fps, 4CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps

• Remote Playback: 4 Channel / 1 Channel

• Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection

• Playback Function: Play, Pause, Stop, Fast play, Rewind

• Smart Phone Playback: 4 Channel

• Backup Mode: USB Device/Network

•

• Network

• Interface: 1 RJ45 10M/100/1000M Adaptive Ethernet Interface

• Network Functions: HTTP, IPv4,IPv6, TCP/IP, SMTP, DHCP, DNS, PPPOE, DDNS, NTP, FTP, UPNP

• DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES

• Web Browser: IE8-11, Google Chrome (IE Tab), Firefox (IE Tab)

• CMS Software: Support Windows 7/ Windows 8/Windows 10

• Extra Stream: CIF/D1(1~25fps)

• Smart Phone: iPhone, iPad, Android, Android pad

•

• Hard Disk Driver

• Interface Type: 1 SATA Interface

• Capacity: 2.5"/3.5" SATA, Up to 6TB

•

• General

• Language: Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek

• UTC Control: YES

• USB Interface: 2 USB 2.0 Interfaces

• Power consumption: DC 12V ≤10W (Without Hard Disk)

• Working Environment: -10~55°C/10~90%

• Dimension: (W×D×H)260*215*43(mm)

• Weight: 2.0kg (Without HDD)

  *Specifications are subject to change without notice.
